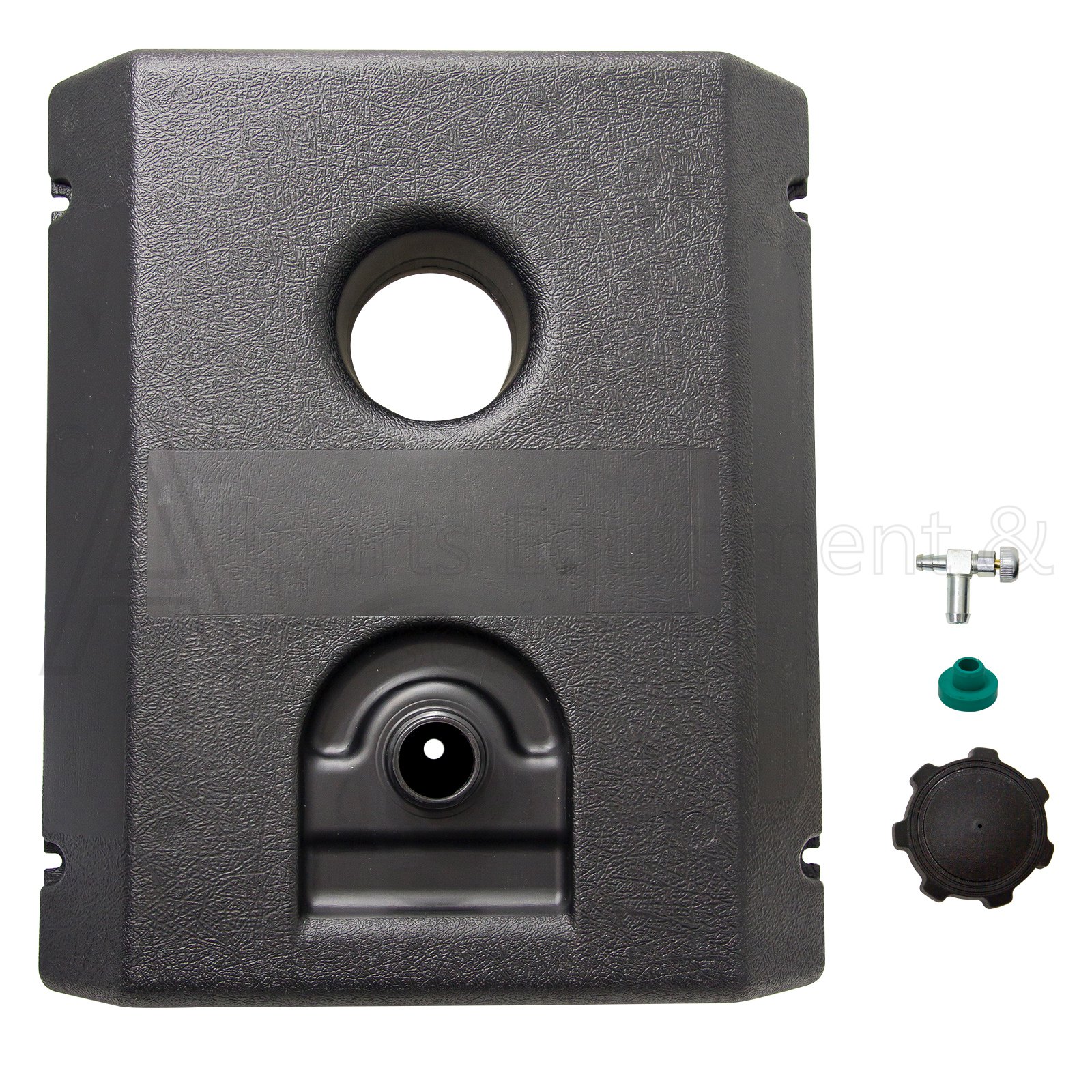

The Z-GS-0795-AP reinforced air compressor fuel tank, with its fuel cap, grommet, tank drain, and mounting screws laid out to the right.
The Z-GS-0795-AP reinforced air compressor fuel tank, with its fuel cap, grommet, tank drain, and mounting screws laid out to the right. The front of the Z-GS-0795-AP reinforced air compressor fuel tank. The fuel cap, drain, grommet, and mounting screws that come with the Z-GS-0795-AP reinforced fuel tank.

Z-GS-0795-AP Fuel tank kit for extended run plastic new design

In stock
Part Number
Z-GS-0795-AP
$126.88
Part Number: Z-GS-0795-AP
Compatible Brands: DeVilbiss
Shipping Weight: 22 Lbs

Z-GS-0795-AP Extended Run Fuel Tank Replacement Kit will " Include " the following items:

  • 1x Limited Lifetime Warranty against any defects in workmanship or materials
  • 1x Z-GS-0795-AP Fuel Tank
  • 1x  N103455 Viton Tank Grommet

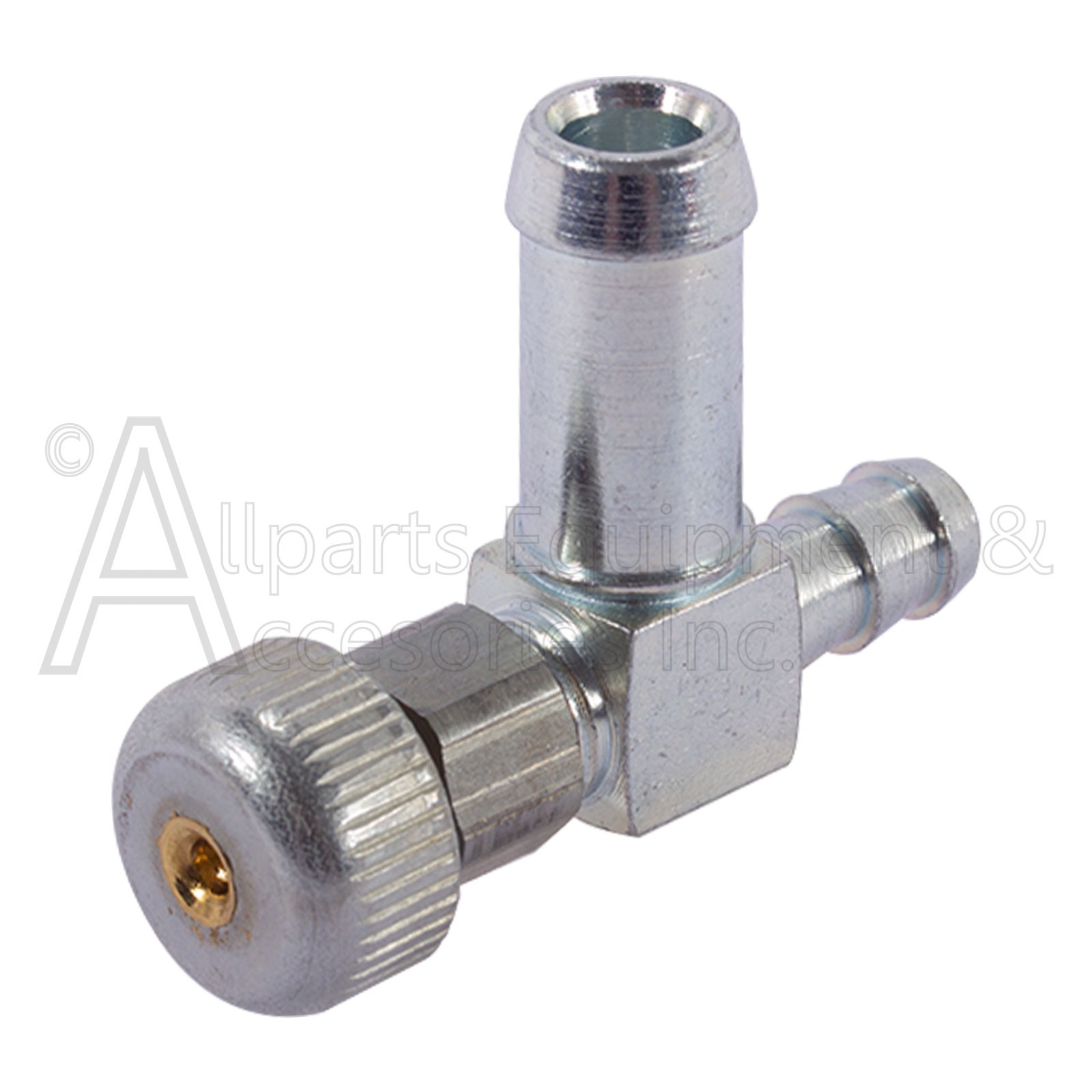

  • 1x GS-0437 Tank Drain Petcock
  • 1x GS-0443 Fuel Cap
  • 4x New Fuel Tank Mounting Screws
  • 4x Fuel Tank Cushion Mounting Washers


This gas tank measures 22 Inches Long by 18. 1/2 Inches Wide with the tank mounting holes 16 inches apart on center and 3 inches on center from either end of the fuel tank.

The Z-GS-0795-AP is a newly designed extended run fuel tank gas tank with reinforced sidewalls and a new style tank seam that will allow us to offer a limited lifetime warranty on the fuel tank against any type of material or workmanship defects, this newly designed fuel tank will also come with a new tank grommet and fuel cap as part of the new fuel tank kit.


The redesigned GS-0795 Replacement fuel tank kit will be a direct replacement fuel tank for the fuel tank that is currently being used and was one of the most popular fuel tanks used on many portable generators under the following private labels:

Sears Craftsman, Portable generator, Porter Cable, Ex-Cell Gen Stations, Titian TG-6250 generators, DAPC Portable generators, DeVilbiss Air Power Company, Briggs and Stratton, Powerback, Ex-Cell, and several others.

This Z-GS-0795-AP plastic fuel tank is the replacement fuel tank for the GS-0444,GS-0795 and the Z-GS-0795 fuel tanks.

The Z-GS-0795-AP Replacement plastic extended run fuel tank kit comes with the GS-0446 Fuel tank grommet and the GS-0443 fuel cap so these parts will no longer need to be ordered separately.


This extended run fuel tank was used on many of the generators that were sold under private labels at the following retailers: Home Depot, Lowes, Menard's, Builders Square, Ace Hardware, Costco, Wal-Mart, Sam's Club, Sears stores, Carter Lumber, Northern Tool and Equipment, Canadian Tire, Titian Industries and other.

Need Help? Call us:

1-269-685-4123

Related Items

This newly redesigned Z-GS-0795-AP Replacement plastic extended run fuel tank gas tank will be a direct replacement plastic fuel tank for the GS-0444, GS-0795 and Z-GS-0795 fuel tanks.

This newly designed fuel tank has addressed some of the known problems we have seen from field reports of the old designed fuel tank and has made corrective changes that give the new tank more durability and a limited lifetime warranty against material or workmanship defects.

These changes include a new zippered seam around the complete tank with reinforced walls, larger mounting surface, removal of seamed access hole, raised fuel expansion cavity, Viton reg fuel grommet as well as other proprietary changes.

We suggest using the new Z-GS-0795-AP as the replacement fuel tank for all previous applications.

These portable generators were sold under the Sears Craftsman label by Sears stores and other fine retailers throughout the country.

The following is a partial list of Sears Craftsman Portable Generator model numbers that use the Z-GS-0795 plastic 7 gallon extended run gas fuel tank.

919-32721 Type 0
919-32721 Type 1
919-32911 Type 0
919-32915 Type 0
919-67003 Type 0
919-67004 Type 0
919-67004 Type 1
919-67007 Type 0
919-67937 Type 0
919-67947 Type 0
919-67950 Type 0
919-67950 Type 1
919-67958 Type 0

The following is a partial list of Porter Cable Portable Generators model numbers that are using the Z-GS-0795 plastic extended run 7 gallon gas fuel tank. These portable generators were sold under the Porter Cable brand name and were sold by various stores including Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sams Club, Sears stores, Carter Lumber and other fine retailers throughout the country.

BS500 Type 0
BS525-W Type 0
BS600 Type 0
BS600-W Type 0
BS600-W Type 1
BSI525-W Type 0
BSI525-W Type 1
BSI525-W Type 2
BSI550-W Type 0
BSI550-W Type 1
BSI550-W Type 2
BSI550-W Type 3

The following is a partial list of Porter Cable Portable Generators model numbers that are using the Z-GS-0795 plastic extended run 7 gallon gas fuel tank. These portable generators were sold under the Porter Cable brand name and were sold by various stores including Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sams Club, Sears stores, Carter Lumber and other fine retailers throughout the country. Plastic generator gas tank:

BSV550-W Type 0
BSV550-W Type 1
BSV750-W Type 0
BSV750-W Type 1
BSV750-W Type 2
BSV750-W Type 3
BSV800 Type 0
BSV800 Type 1

The following is a partial list of DAPC DeVilbiss Air Power Company Generators model numbers that are using the Z-GS-0795 plastic extended run 7 gallon gas fuel tank. These portable generators were sold under the DAPC DeVilbiss Air Power Company brand name and were sold by various stores including Home Depot, Lowes, Menards, Titan Industrial TG-6250, Northern Tool and Equipment, Ace hardware, Costco, Wal-Mart, Sams Club, Sears stores, Carter Lumber and other fine retailers throughout the country.
CDGT3010 Type 0
CDGT3010 Type 1
CDGT3010 Type 2
CDGT3010 Type 3
CGBV4000 Type 0
CGBV4000 Type 1

The following is a partial list of DAPC DeVilbiss Air Power Company Portable Electric Generators model numbers that are using the Z-GS-0795 plastic extended run 7 gallon gas fuel tank.
These portable generators were sold under the DAPC DeVilbiss Air Power Company brand name and were sold by various stores including Home Depot, Lowes, Menards, Northern Tool and Equipment, Ace hardware, Costco, Wal-Mart, Sams Club, Sears stores, Carter Lumber and other fine retailers throughout the country.
DGHC6510-WK Type 0
DGT5010-WK Type 1
EXGB4010 Type 2
EXGB5010 Type 0
EXGB5010 Type 1
EXGB5010 Type 2
EXGBVE7010 Type 3
EXGHV4510 Type 0
EXGHV4510 Type 1
EXGHV4510 Type 2
GB4000 Type 0
GB4000 Type 1
GB4000 Type 2
GB4000 Type 3
GB4000S1 Type 2
GB4000S1 Type 3
GB4010 Type 0
GB4010 Type 1
GB4010 Type 2
GB5000 Type 0
GB5000 Type 1
GB5000 Type 2
GB5000 Type 3
GB5000 Type 4
GB5000-WK Type 2
GB5000-WK Type 3
GB5000S1 Type 2
GB5000S1 Type 3
GB5010 Type 0
GB5010 Type 1
GB5010 Type 2
GBE4010 Type 0
GBE4010 Type 1
GBFE6010 Type 0
GBFE6010 Type 1
GBO5250-WK Type 0
GBO5250-WK Type 2
GBV5000 Type 0
GBV5000 Type 1
GBV5000 Type 2
GBV7000 Type 0
GBV7000 Type 1
GBV7000 Type 2
GBV7000 Type 3
GBV7000 Type 4
GBV7000S1 Type 3
GBV7000S1 Type 4
GBV7010 Type 0
GBV7010 Type 1
GBV7010 Type 2
GBV7010 Type 3
GBVE7500-WK Type 0
GBVE7500-WK Type 1
GBVE8000-WK Type 0
GBVE8000-WK Type 1
GBVF5000 Type 0
GBVF5000 Type 1
GH4501 Type 0
GHE10000-WK Type 0
GHE10000-WK Type 1

The following is a partial list of DeVilbiss Air Power Company Portable Electric Generators model numbers that are using the Z-GS-0795 plastic extended run 7 gallon gas fuel tank.

These portable generators were sold under the DeVilbiss Air Power Company Portable Electric Generators brand name and were sold by various stores including Home Depot, Lowes, Menards, Northern Tool and Equipment, Ace hardware, Costco, Wal-Mart, Sams Club, Sears stores, Carter Lumber and other fine retailers throughout the country.
GHV4250C Type 0
GHV4250C Type 1
GHV4500 Type 0
GHV4500 Type 2
GHV4500 Type 3
GHV4500 Type 4
GHV4500S1 Type 0
GHV4500S1 Type 1
GHV4500S1 Type 2

The following is a partial list of DeVilbiss Air Power Company Powerback Portable Electric Generators model numbers that are using the Z-GS-0795 plastic extended run 7 gallon gas fuel tank. These portable generators were sold under the DeVilbiss Air Power Company Powerback Portable Electric Generators brand name and were sold by various stores including Home Depot, Lowes, Menards, Northern Tool and Equipment, Ace hardware, Costco, Wal-Mart, Sams Club, Sears stores, Carter Lumber and other fine retailers throughout the country.
GT5000 Type 0
GT5000C Type 0
GT5000C Type 1
GT5250 Type 1
GT5250 Type 2
GT5250-WK Type 0
GT5250-WK Type 1
GT5250-WK Type 2
GT5251 Type 0
GT5251 Type 1
GTO5200C-WK Type 0
GTO5200C-WK Type 1

The following is a partial list of Porter Cable Portable Construction Duty Generators model numbers that are using the Z-GS-0795 plastic extended run 7 gallon gas fuel tank. These portable generators were sold under the Porter Cable brand name and were sold by various stores including Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sams Club, Sears stores, Carter Lumber, Northern Tool and Equipment and other fine retailers throughout the country.
H1000 Type 0
H1000 Type 1
H1000IS-W Type 0
H1000IS-W Type 1
H450CS Type 0
H450CS Type 1
H450IS-W Type 0
H451CS-W Type 0
H451CS-W Type 1
H451CS-W Type 2
H451CS-W Type 3
H650CS Type 0
H650CS Type 1
H650CS Type 2
H650IS-W Type 1
PGT5010 Type 0
T525 Type 0
T550-W Type 0

This Z-GS-0795-AP fuel tank is the replacement fuel tank for the GS-0027, GS-0444,GS-0795 and the Z-GS-0795 fuel tanks.
