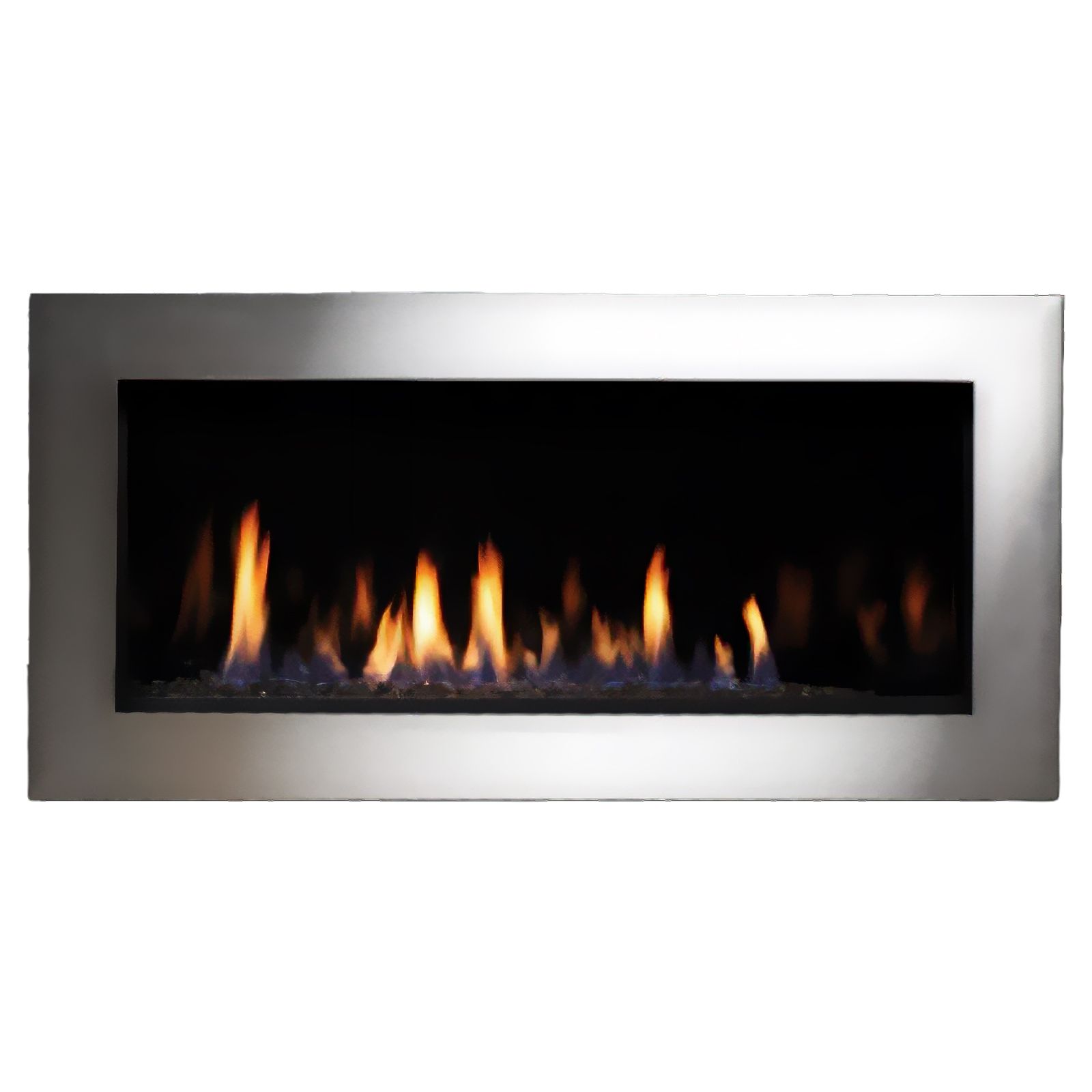

ZRB46NE Direct Vent Natural Gas Kingsman Fireplace with Intermittent Ignition, 46 in.

The ZRB46NE is a natural gas Kingsman fireplace that uses a direct vent system to pull outside air for ignition and to vent combustibles.

This fireplace is configured for use with natural gas only and features electronic IPI gas valve control.

ZRB46NE requires no clearance for airflow. However, this fireplace still requires specific distance from combustibles, which is outlined in the ZRB46 Installation Instructions.

An optional blower kit, the Z46FK, may also be installed to provide additional warm air distribution.

Installation of the ZRB64NE should only be handled by a licensed installer.

Specifications of the ZRB46NE

Min. Input Rating: 15,750 BTU

Max. Input Rating: 23,250 BTU

Gas Control: IPI

Gas Supply Pressure Range:

• 5.5 in. W.C minimum
• 9 in. W.C maximum
• 7 in. W.C average.

Max. Manifold Pressure: 3.5 in. W.C

Min. Manifold Pressure: 1.6 in. W.C

Air Shutter Opening: Fully Closed

Dimensions:

• Width: 46 1/4 in.
• Length: 17 7/8 in.
• Height: 43 1/2 in.
