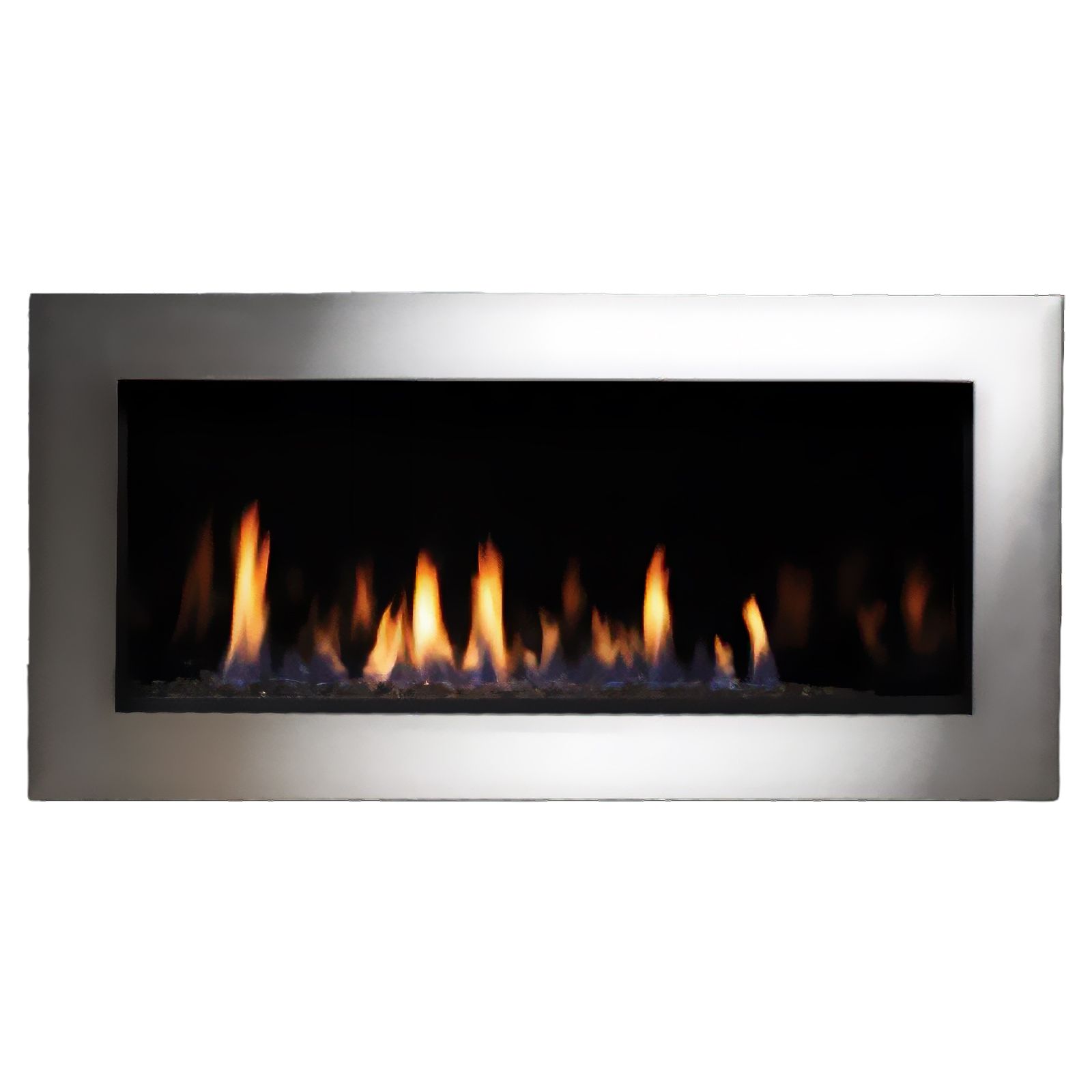

ZRB46N Direct Vent Natural Gas Kingsman Fireplace Heater, 46 in.

The ZRB46N is a natural gas Kingsman fireplace that pulls air from outside using a direct vent system. This fireplace is configured for use with natural gas only and features millivolt gas valve control.

This no-clearance fireplace that requires no clearance for airflow. However, this fireplace still requires specific distance from combustibles, which is outlined in the ZRB46 Installation Instructions.

An optional blower kit, the Z46FK, may also be installed to provide additional warm air distribution.

Installation of the ZRB4N should only be handled by a licensed installer.

Specifications of the ZRB46N

Min. Input Rating: 15,750 BTU

Max. Input Rating: 23,250 BTU

Gas Control: Millivolt

Gas Supply Pressure Range:

• 5.5 in. W.C minimum
• 9 in. W.C maximum
• 7 in. W.C average.

Max. Manifold Pressure: 3.5 in. W.C

Min. Manifold Pressure: 1.6 in. W.C

Air Shutter Opening: Fully Closed

Dimensions:

• Width: 46 1/4 in.
• Length: 17 7/8 in.
• Height: 43 1/2 in.
