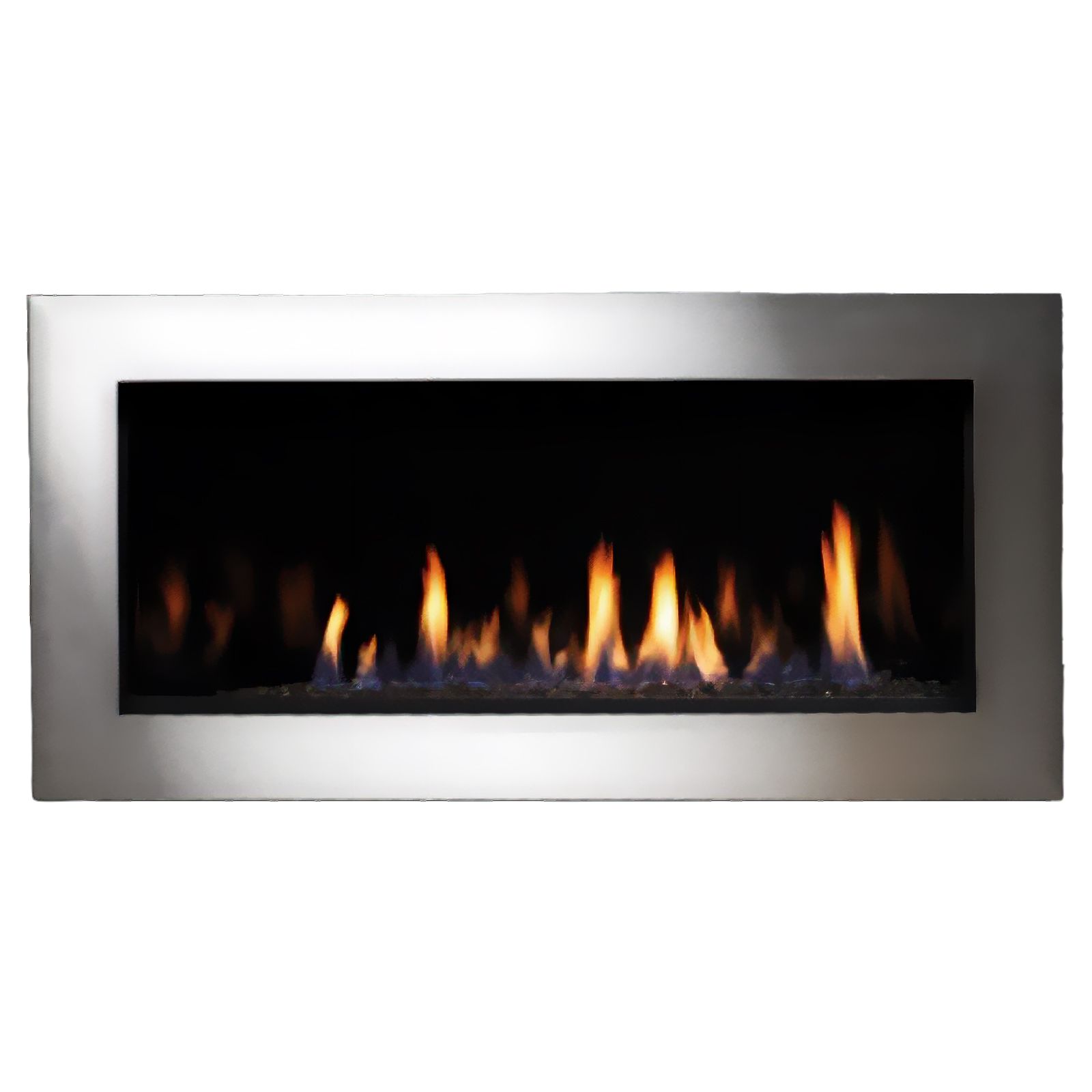

ZRB46LP Direct Vent Liquid Propane Gas Kingsman Fireplace Heater, 46 in.

The ZRB46LP is a Kingsman fireplace heater configured for use with liquid propane gas. This fireplace pulls air from outside using a direct vent system and requires no airflow clearance.

While the ZRB46LP is a zero clearance fireplace, it still requires specific distance from combustibles, which is outlined in the ZRB46 Installation Instructions.

An optional blower kit, the Z46FK, may also be installed to provide additional warm air distribution.

Installation of the ZRB4LP should only be handled by a licensed installer.

Specifications of the ZRB46LP

Min. Input Rating: 17,750 BTU

Max. Input Rating: 23,250 BTU

Gas Control: Millivolt

Gas Supply Pressure Range:

• 11 in. W.C minimum
• 12 in. W.C maximum
• 11 in. W.C normal

Max. Manifold Pressure: 10 in. W.C

Min. Manifold Pressure: 6.3 in. W.C

Air Shutter Opening: 5/16 in.

Dimensions:

• Width: 46 1/4 in.
• Length: 17 7/8 in.
• Height: 43 1/2 in.
