Z-D22629 Single-stage oil-lubricated air pump kit for DeVilbiss compressors
Z-D22629 Single-stage oil-lubricated air pump kit for DeVilbiss compressors Z-D22629 Air compressor pump front view with oil sight window below the cylinder heads Z-D22629 Close-up of the twin cylinder head and porting on a DeVilbiss air pump Z-D22629 Twin-cylinder pump head with reed valve cover and ports Z-D22629 Pump head detail showing the air filter housing and retainer clip Older Z-D22629 air compressor pump style.

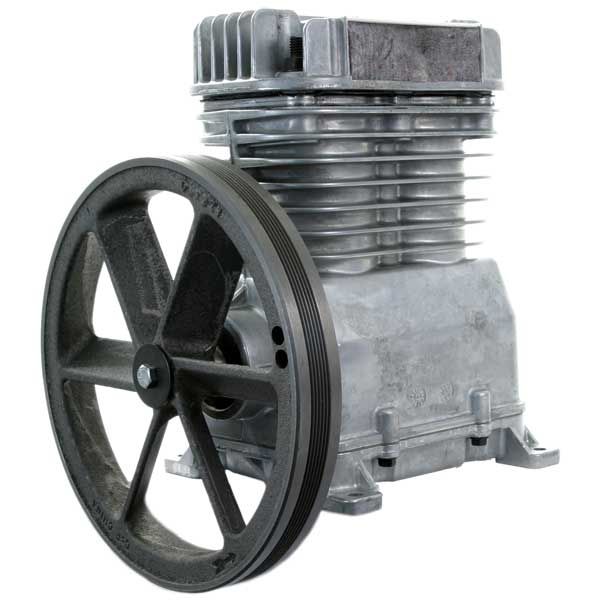

Z-D22629 Twin Cylinder Single-Stage Cast Iron Air Compressor Pump

In stock

$469.90

In stock

Part Number: Z-D22629
Shipping Weight: 78 Lbs
Documents:

The Z-D22629 twin cylinder air compressor pump is a single-stage, oil-lubricated replacement pump with a cast iron crankcase and replaceable cast iron cylinder.

Service Note

This pump does NOT come pre-filled with oil. If oil is needed, please order EAOIL10 with the pump. Before operating the pump, fill it until the oil level reaches the middle of the sight glass.

This pump is configured with the outlet port of the head facing toward the inside of the air compressor tank.

The Z-D22629 pump uses the newer twin cylinder oil-lubricated pump style with the same footprint and pulley setup as the pump it replaces in many applications.

This replacement pump does not come pre-filled with oil and has a slightly smaller bore than earlier aluminum-style pumps, which may increase cut-out recovery time by approximately 36 seconds.

Z-D22629 Specifications

  • Pump Stage: Single-stage
  • Cylinder Configuration: Twin cylinder
  • Lubrication: Oil lubricated
  • Crankcase Material: Cast iron
  • Cylinder Material: Replaceable cast iron cylinder
  • Outlet Port Orientation: Head outlet port faces toward the inside of the air compressor tank
  • Oil Included: No
  • Oil Level Check: Oil sight glass window
  • Maintenance Feature: Oil drain pump extension tube
  • Breather: Crankcase oil breather with extended vent case breather tube
  • Included Air Filter: Screw-in air filter
  • Flywheel Hardware: Flywheel with bolt and washer


Z-D22629 Kit Contents

  • Twin cylinder oil-lubricated air compressor pump
  • Extended vent case breather tube
  • Screw-in air filter
  • Flywheel
  • Flywheel bolt
  • Flywheel washer


Z-D22629 Key Features

  • Newer twin cylinder oil-lubricated pump style used to replace many earlier twin cylinder single-stage pump designs
  • Cast iron crankcase and replaceable cast iron cylinder construction
  • Oil sight glass allows the pump oil level to be viewed during routine checks
  • Oil drain extension tube supports easier oil change access
  • Extended vent case breather tube and crankcase oil breather are included
  • Screw-in air filter and flywheel hardware are included with the pump kit
  • Footprint and pulley setup match the replaced pump style in many listed applications

Need Help? Call us:

1-269-685-4123

For availability, please text:

1-269-447-0412

Related Items

Compatible Models

The Z-D22629 twin cylinder air compressor pump is known to properly fit and function with the following partial list air compressor models:

Delta Air Compressor

  • Delta 66-750 Type 0

Sears Craftsman Air Compressors

  • Sears Craftsman 919-15725 Type 1
  • Sears Craftsman 919-15726 Type 0
  • Sears Craftsman 919-18416 Type 1
  • Sears Craftsman 919-18419 Type 1
  • Sears Craftsman 919-18419 Type 2
  • Sears Craftsman 919-18543 Type 1
  • Sears Craftsman 919-18695 Type 1
  • Sears Craftsman 919-186950
  • Sears Craftsman 919-186950-CA
  • Sears Craftsman 919-19540 Type 0
  • Sears Craftsman 919-19541 Type 0
  • Sears Craftsman 919-19541 Type 1
  • Sears Craftsman 919-19541 Type 2
  • Sears Craftsman 919-19541 Type 3
  • Sears Craftsman 919-72728 Type 0
  • Sears Craftsman 919-72728 Type 2
  • Sears Craftsman 919-72800 Type 0
  • Sears Craftsman 919-72800 Type 1

Air Compressor Models

  • ACBL320 Type 2
  • ACBL320 Type 3
  • ACBL320 Type 4
  • ACBL520
  • ACBL520-CA
  • ACBL520 Type 0
  • ACBL520 Type 1
  • ACBL530VP Type 2
  • ACBL530VP Type 3
  • ACBL530VP Type 4
  • ACBL5G20 Type 0
  • ACBL5G20 Type 2
  • ACBL5G20 Type 3
  • ACBL5G20HP Type 0
  • ACBL660V
  • ACBL660V-CA
  • ACBL660V Type 0
  • ACBL660V Type 1
  • ACBL760V
  • ACBL760V-CA
  • ACSL530RVP Type 3
  • AFL2512 Type 0
  • AFL2512 Type 1
  • AFL2520 Type 0
  • AFL2520 Type 1
  • AFL520
  • AFL520-CA
  • AFL520 Type 0
  • AFL520 Type 1
  • AFL560V
  • AFL560V-CA
  • AFL560V Type 1
  • AFL560V Type 2
  • AFL560V Type 3
  • AFL5G20 Type 0
  • AFL660V
  • AFL660V-CA
  • AFL660V Type 0
  • AFL660V Type 1
  • ATCL4520 Type 0
  • ATCL4520 Type 2
  • BACL4520 Type 0
  • BACL4520 Type 2
  • C5510 Type 0
  • C7501M
  • C7501M-CA
  • C7501M Type 0
  • CPL55GH8W
  • CPL55GH8W-CA
  • CPL55GH8W Type 0
  • CPL6025 Type 1
  • CPLC7060V
  • CPLC7060V-CA
  • CPLC7060V Type 0
  • CPLC7060V Type 1
  • CPLC7060V Type 2
  • EXL5020 Type 0
  • EXL6560V
  • EXL6560V-CA
  • EXL6560V Type 0
  • EXLC5G20 Type 0
  • EXLC7060V
  • EXLC7060V-CA
  • EXLC7060V Type 0
  • HL6560V
  • HL6560V-CA
  • HL6560V Type 0
  • HL7060V
  • HL7060V-CA
  • HL7060V Type 0
  • IMCL4520 Type 0
  • IMCL4520 Type 2
  • IR25E20AD
  • IR25E20AD-CA
  • IR25E20AD Type 0
  • IR35E20AD Type 1
  • IR35E20AD Type 2
  • IR4E20AD Type 0
  • IR5E20AD
  • IR5E20AD-CA
  • IR5E20AD Type 1
  • IR5E20AD Type 2
  • IR5E30AD
  • IR5E30AD-CA
  • IR5E30AD Type 0
  • IR5E30AD Type 1
  • IR5E60VAD
  • IR5E60VAD-CA
  • IR5E60VAD Type 0
  • IR5E60VAD Type 1
  • IR5G20AD Type 0
  • IR6E60VAD
  • IR6E60VAD-CA
  • IR6E60VAD Type 0
  • IRC4E20AD Type 0
  • IRC4E20AD Type 1
  • IRC5E20AD
  • IRC5E20AD-CA
  • IRC5E20AD Type 1
  • IRC5E60VAD
  • IRC5E60VAD-CA
  • IRC5E60VAD Type 0
  • IRC5E60VAD Type 1
  • IRC6E60VAD
  • IRC6E60VAD-CA
  • IRC6E60VAD Type 0
  • IRL5020 Type 0
  • IRL5G20 Type 0
  • IRL5G20 Type 2
  • IRL5G20 Type 3
  • IRL6520
  • IRL6520-CA
  • IRL6520 Type 0
  • IRL6530
  • IRL6530-CA
  • IRL6530 Type 0
  • IRL6530 Type 1
  • IRL6560V
  • IRL6560V-CA
  • IRL6560V Type 0
  • IRLC5020 Type 0
  • IRLC6520
  • IRLC6520-CA
  • IRLC6520 Type 0
  • IRLC6560V
  • IRLC6560V-CA
  • IRLC6560V Type 0
  • IRLC6560V Type 1
  • L2512 Type 0
  • L2512 Type 1
  • L2520 Type 0
  • L2520 Type 1
  • L320 Type 2
  • L320 Type 3
  • L320 Type 4
  • L420 Type 0
  • L5020 Type 0
  • L520
  • L520-CA
  • L520 Type 0
  • L520 Type 1
  • L520 Type 2
  • L530
  • L530-CA
  • L530 Type 1
  • L560V
  • L560V-CA
  • L560V Type 1
  • L560V Type 3
  • L5G20 Type 3
  • L6520
  • L6520-CA
  • L6530
  • L6530-CA
  • L6530 Type 0
  • L6530 Type 1
  • L6560V
  • L6560V-CA
  • L660V
  • L660V-CA
  • L660V Type 0
  • L660V Type 1
  • L660V Type 2
  • L660V Type 3
  • PALC520
  • PALC520-CA
  • PALC520 Type 0
  • PALC520 Type 1
  • PALC560V Type 1
  • PALC6520
  • PALC6520-CA
  • PALC6520 Type 0
  • PALC6560V
  • PALC6560V-CA
  • PALC6560V Type 0
  • PALC6560V Type 1
  • PALC7060V
  • PALC7060V-CA
  • PALC7060V Type 0
  • PENTAIRSUBS Type 1
  • PRL5020 Type 0
  • PRLC5020 Type 0
  • RA4E20AD Type 0
  • RA5E20AD
  • RA5E20AD-CA
  • RA5E20AD Type 1
  • RA5E20AD Type 2
  • RA5E60VAD
  • RA5E60VAD-CA
  • RA5E60VAD Type 0
  • RA5E60VAD Type 1
  • RA6E60VAD
  • RA6E60VAD-CA
  • RA6E60VAD Type 0
  • RAC5E20AD
  • RAC5E20AD-CA
  • RAC5E20AD Type 1
  • RAC5E60VAD
  • RAC5E60VAD-CA
  • RAC5E60VAD Type 0
  • RAC5E60VAD Type 1
  • RAL5020 Type 0
  • RAL5G20 Type 0
  • RAL5G20 Type 2
  • RAL5G20 Type 3
  • RAL6520
  • RAL6520-CA
  • RAL6520 Type 0
  • RAL6560V
  • RAL6560V-CA
  • RAL6560V Type 0
  • RALC5020 Type 0
  • RALC6520
  • RALC6520-CA
  • RALC6520 Type 0
  • RALC6560V
  • RALC6560V-CA
  • RALC6560V Type 0
  • RALC6560V Type 1
  • SDS2E8DCD Type 0
  • SDS2E8DCD Type 1
  • SDS5G8D Type 0
  • SDS5G8D Type 1

ACBL660V Type 0
ACBL660V Type 0
ACBL660V Type 1
ACSL530RVP Type 3

AFL2512 Type 0
AFL2512 Type 1
AFL2520 Type 0
AFL2520 Type 1
AFL520 Type 0
AFL520 Type 1
AFL560V Type 1
AFL560V Type 1
AFL560V Type 2
AFL560V Type 2
AFL560V Type 3
AFL560V Type 3
AFL5G20 Type 0
AFL660V Type 0
AFL660V Type 0
AFL660V Type 1
ATCL4520 Type 0
ATCL4520 Type 2

BACL4520 Type 0
BACL4520 Type 2

C5510 Type 0
C7501M Type 0

CPL55GH8W Type 0
CPL6025 Type 1
CPLC7060V Type 0
CPLC7060V Type 1
CPLC7060V Type 2
EXL5020 Type 0
EXL6560V Type 0
EXLC5G20 Type 0
EXLC7060V Type 0
HL6560V Type 0
HL7060V Type 0
IMCL4520 Type 0
IMCL4520 Type 2
IR25E20AD Type 0
IR35E20AD Type 1
IR35E20AD Type 2
IR4E20AD Type 0
IR5E20AD Type 1
IR5E20AD Type 2
IR5E30AD Type 0
IR5E30AD Type 1
IR5E60VAD Type 0
IR5E60VAD Type 0
IR5E60VAD Type 1
IR5E60VAD Type 1
IR5G20AD Type 0
IR6E60VAD Type 0
IR6E60VAD Type 0
IRC4E20AD Type 0
IRC4E20AD Type 1
IRC5E20AD Type 1
IRC5E60VAD Type 0
IRC5E60VAD Type 0
IRC5E60VAD Type 1
IRC5E60VAD Type 1
IRC6E60VAD Type 0
IRC6E60VAD Type 0

IRL5020 Type 0
IRL5G20 Type 0
IRL5G20 Type 2
IRL5G20 Type 3
IRL6520 Type 0
IRL6530 Type 0
IRL6530 Type 1
IRL6560V Type 0
IRLC5020 Type 0
IRLC6520 Type 0
IRLC6560V Type 0
IRLC6560V Type 1

L2512 Type 0
L2512 Type 1
L2520 Type 0
L2520 Type 1
L320 Type 2
L320 Type 3
L320 Type 4
L420 Type 0
L5020 Type 0
L520 Type 0
L520 Type 1
L520 Type 2
L530 Type 1
L560V Type 1
L560V Type 1
L560V Type 3
L560V Type 3
L5G20 Type 3
L6530 Type 0
L6530 Type 1
L660V Type 0
L660V Type 0
L660V Type 1
L660V Type 2
L660V Type 3


PALC520 Type 0
PALC520 Type 1
PALC560V Type 1
PALC560V Type 1
PALC6520 Type 0
PALC6560V Type 0
PALC6560V Type 1
PALC7060V Type 0


PENTAIRSUBS Type 1


PRL5020 Type 0
PRLC5020 Type 0

RA4E20AD Type 0
RA5E20AD Type 1
RA5E20AD Type 2
RA5E60VAD Type 0
RA5E60VAD Type 0
RA5E60VAD Type 1
RA5E60VAD Type 1
RA6E60VAD Type 0
RA6E60VAD Type 0
RAC5E20AD Type 1
RAC5E60VAD Type 0
RAC5E60VAD Type 0
RAC5E60VAD Type 1
RAC5E60VAD Type 1
RAL5020 Type 0
RAL5G20 Type 0
RAL5G20 Type 2
RAL5G20 Type 3
RAL6520 Type 0
RAL6560V Type O
RALC5020 Type 0
RALC6520 Type 0
RALC6560V Type 0
RALC6560V Type 1


SDS2E8DCD Type 0
SDS2E8DCD Type 1
SDS5G8D Type 0
SDS5G8D Type 1

No Reviews Yet

Only registered users can write reviews. Please Sign in or create an account

Frequently Asked Questions

Does the Z-D22629 air compressor pump come with oil?

No. The Z-D22629 replacement pump does not come pre-filled with oil. Oil must be added before the pump is put into operation.

Why does the Z-D22629 take longer to reach cut-out pressure than the older pump?

The Z-D22629 has a slightly smaller bore than the previous aluminum-style pumps, so it may take approximately 36 seconds longer to reach cut-out pressure.

What should I verify before ordering the Z-D22629 pump?

Confirm your air compressor model number, type number, and parts diagram before ordering. The pump footprint and pulley match the older pump style in many applications, but model verification is still needed before replacement.

What parts come with the Z-D22629 pump kit?

The Z-D22629 pump kit includes the twin cylinder oil-lubricated pump, extended vent case breather tube, screw-in air filter, flywheel, flywheel bolt, and flywheel washer.

  • Performance Note: Approximately 36 seconds longer to reach cut-out pressure compared with previous aluminum-style pumps

    • Z-D22629 Cross Reference

    • N076027
    • DeVilbiss CAC-4029
    • DeVilbiss AC-0171
    • DeVilbiss D22629
    • DeVilbiss D22623
    • DeVilbiss D22625
    • DeVilbiss CAC-4026
