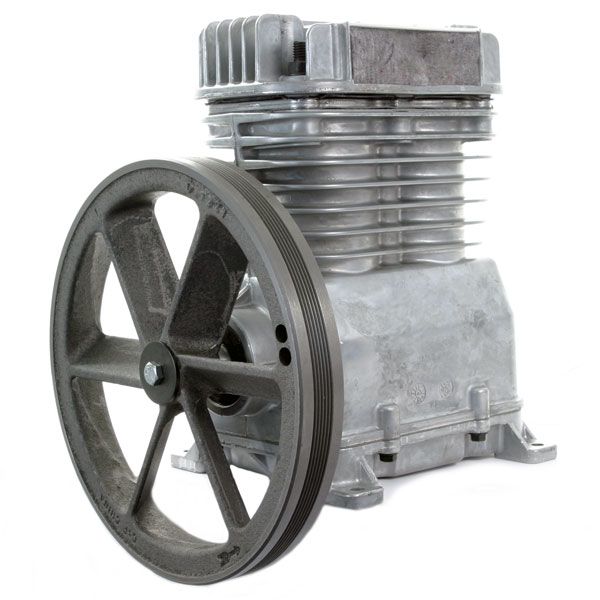

AC-0171 aluminum twin cylinder compressor pump assembly
AC-0171 aluminum twin cylinder compressor pump assembly

AC-0171 twin cylinder air compressor pump

Reference Item Only
Part Number
AC-0171
Part Number: AC-0171
Brand: DeVilbiss Craftsman Porter Cable

The AC-0171 and AC-0204 Air Compressor Pump was used by DeVilbiss Air Power Company for many years on their line of twin-cylinder oil lubricated air compressors.


This AC-0171 Pump was used on many air compressors manufactured by DeVilbiss.


Torque Specifications
HEAD BOLTS & STUDS:25-30 Ft.Lbs
REED VALVE SCREWS:13-17 In.Lbs
CONNECTING ROD BOLTS:7-10 Ft.Lbs
CRANKSHAFT END PLATE BOLTS:9-12 Ft.Lbs
BASE BOLTS:9-12 Ft.Lbs
FLYWHEEL:15-20 Ft.Lbs

Need Help? Call us:

1-269-685-4123

Related Items

The AC-0171 Replacement Oil Lubricated Pump kit will fit the following models:

Delta Air Compressor Model #
66-750 Type 0

Sears Craftsman Model numbers:
919-15725 Type 1
919-15726 Type 0
919-18416 Type 1
919-18419 Type 1
919-18419 Type 2
919-18543 Type 1
919-18695 Type 1
919-19540 Type 0
919-19541 Type 0
919-19541 Type 1
919-19541 Type 2
919-19541 Type 3
919-72728 Type 0
919-72728 Type 2
919-72800 Type 0
919-72800 Type 1

ACBL320 Type 2
ACBL320 Type 3
ACBL320 Type 4
ACBL520 Type 0
ACBL520 Type 1
ACBL530VP Type 2
ACBL530VP Type 3
ACBL530VP Type 4
ACBL5G20 Type 0
ACBL5G20 Type 2
ACBL5G20 Type 3
ACBL5G20HP Type 0
ACBL660V Type 0
ACBL660V Type 0
ACBL660V Type 1
ACSL530RVP Type 3

AFL2512 Type 0
AFL2512 Type 1
AFL2520 Type 0
AFL2520 Type 1
AFL520 Type 0
AFL520 Type 1
AFL560V Type 1
AFL560V Type 1
AFL560V Type 2
AFL560V Type 2
AFL560V Type 3
AFL560V Type 3
AFL5G20 Type 0
AFL660V Type 0
AFL660V Type 0
AFL660V Type 1
ATCL4520 Type 0
ATCL4520 Type 2

BACL4520 Type 0
BACL4520 Type 2

C5510 Type 0
C7501M Type 0

CPL55GH8W Type 0
CPL6025 Type 1
CPLC7060V Type 0
CPLC7060V Type 1
CPLC7060V Type 2
EXL5020 Type 0
EXL6560V Type 0
EXLC5G20 Type 0
EXLC7060V Type 0
HL6560V Type 0
HL7060V Type 0
IMCL4520 Type 0
IMCL4520 Type 2
IR25E20AD Type 0
IR35E20AD Type 1
IR35E20AD Type 2
IR4E20AD Type 0
IR5E20AD Type 1
IR5E20AD Type 2
IR5E30AD Type 0
IR5E30AD Type 1
IR5E60VAD Type 0
IR5E60VAD Type 0
IR5E60VAD Type 1
IR5E60VAD Type 1
IR5G20AD Type 0
IR6E60VAD Type 0
IR6E60VAD Type 0
IRC4E20AD Type 0
IRC4E20AD Type 1
IRC5E20AD Type 1
IRC5E60VAD Type 0
IRC5E60VAD Type 0
IRC5E60VAD Type 1
IRC5E60VAD Type 1
IRC6E60VAD Type 0
IRC6E60VAD Type 0

IRL5020 Type 0
IRL5G20 Type 0
IRL5G20 Type 2
IRL5G20 Type 3
IRL6520 Type 0
IRL6530 Type 0
IRL6530 Type 1
IRL6560V Type 0
IRLC5020 Type 0
IRLC6520 Type 0
IRLC6560V Type 0
IRLC6560V Type 1

L2512 Type 0
L2512 Type 1
L2520 Type 0
L2520 Type 1
L320 Type 2
L320 Type 3
L320 Type 4
L420 Type 0
L5020 Type 0
L520 Type 0
L520 Type 1
L520 Type 2
L530 Type 1
L560V Type 1
L560V Type 1
L560V Type 3
L560V Type 3
L5G20 Type 3
L6530 Type 0
L6530 Type 1
L660V Type 0
L660V Type 0
L660V Type 1
L660V Type 2
L660V Type 3


PALC520 Type 0
PALC520 Type 1
PALC560V Type 1
PALC560V Type 1
PALC6520 Type 0
PALC6560V Type 0
PALC6560V Type 1
PALC7060V Type 0


PENTAIRSUBS Type 1


PRL5020 Type 0
PRLC5020 Type 0

RA4E20AD Type 0
RA5E20AD Type 1
RA5E20AD Type 2
RA5E60VAD Type 0
RA5E60VAD Type 0
RA5E60VAD Type 1
RA5E60VAD Type 1
RA6E60VAD Type 0
RA6E60VAD Type 0
RAC5E20AD Type 1
RAC5E60VAD Type 0
RAC5E60VAD Type 0
RAC5E60VAD Type 1
RAC5E60VAD Type 1
RAL5020 Type 0
RAL5G20 Type 0
RAL5G20 Type 2
RAL5G20 Type 3
RAL6520 Type 0
RAL6560V Type O
RALC5020 Type 0
RALC6520 Type 0
RALC6560V Type 0
RALC6560V Type 1


SDS2E8DCD Type 0
SDS2E8DCD Type 1
SDS5G8D Type 0
SDS5G8D Type 1
