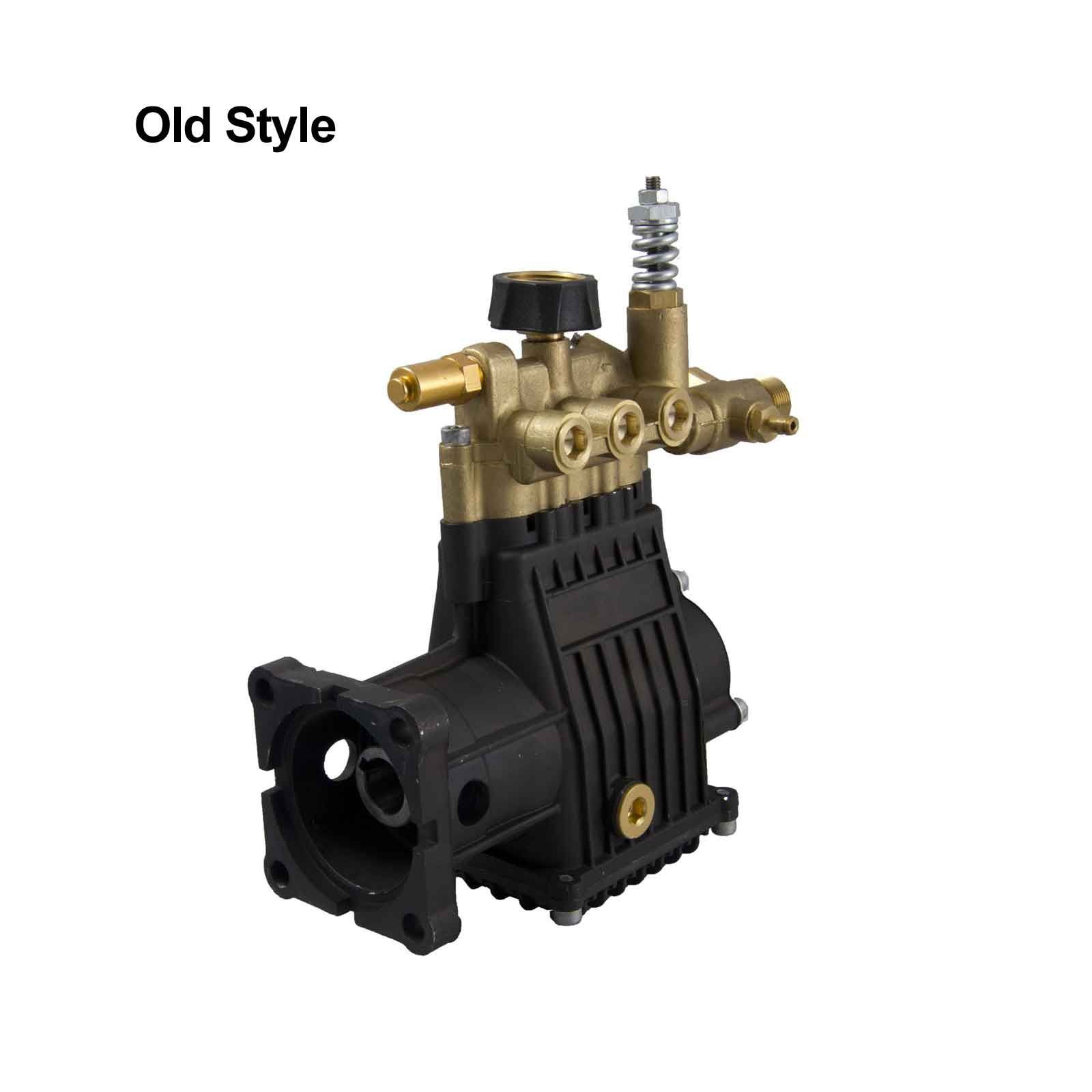

530002 Triplex Plunger Pump by AAA 2.8 GPM 3200 PSI

530002 AAA triplex pumps are highly efficient pumps that minimized engine load while delivering top performance.

These  AAA pumps from FNA Group are equipped with Patented Power Boost technology that provides higher pressure at the spray nozzle.

This latest version AAA 530002 pump contains dual oversized ball bearings for better wear, friction resistance and longer lasting performance in tough cleaning environments. 90036 pump is equipped with the Easy-Start feature.

Features of the 530002 AAA Pump:

• 3200 PSI @ 2.8 GPM
• Power Boost Technology
• Fully adjustable unloader system with ergonomic control
• Sight glass and advanced oil seal technology, does away with the need for a dipstick
• Thermal relief protection to prevent pump overheating
• Dual oversized radial ball bearings are installed for better wear, friction resistance and
• precision ceramic coated pistons for extended seal life
• Crankcase is manufactured from fully anodized die cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure
• Forged brass head
• Gas engine flange and hollow shaft that fits most horizontal shaft engines



Specifications of the 530002 AAA Pump

• PSI: 3200
• GPM: 2.8
• Inlet Port: 3/4 GH
• Discharge Port: Threaded M22 male connection
• Inlet Pressure Range: 10-60 PSI
• Thermal Relief Port: 1/4" NPT
• Shaft Diameter: 3.4"
• Flange Bolt Pattern: SAE J-609A
• Key Way: 3/16"
• Pump Oil Capacity: 8.0 FL oz.
• Power Boost: Yes
• Head: Brass
