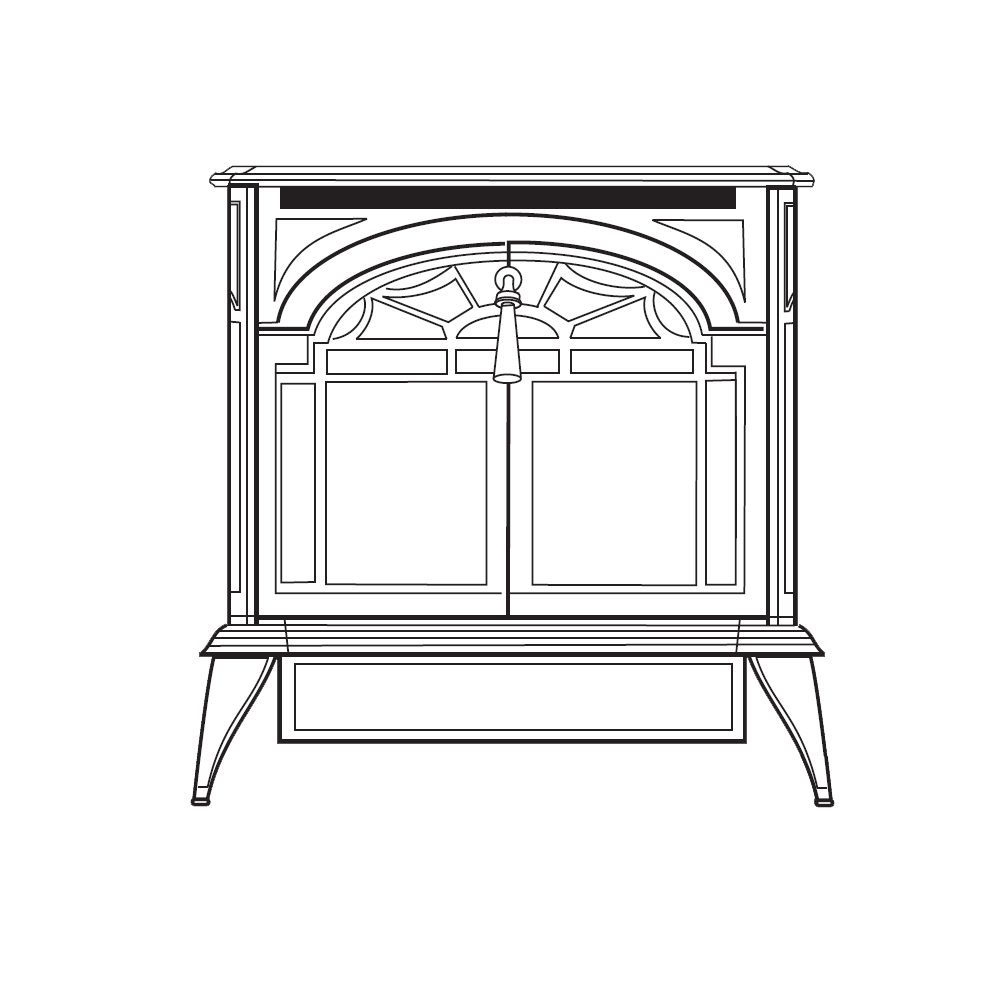

SNV30RP Stardance B-Vent Liquid Propane Gas Heater 28,000 BTU

The SNV30RP is a liquid propane gas Stardance heater with a B-vent configuration. This heater features millivolt gas control and has a maximum input rating of 28,000 BTUs per hour.

SNV30RP uses a Type B venting system or a Class A chimney system to vent exhaust from combustion outdoors. The SNV30RP requires this venting setup to operate.

The burner features a HI/LO adjustment knob that allows for flame and temperature adjustment. An On/Off manual control switch is also included with this heater.

Features of the Stardance SNV30RP

• Lights using an electronic ignitor with millivolt gas control.
• Must be installed with a B-vent setup for proper operation.
• Features a top-convertible electronic LPG pilot assembly.
• Supports an optional thermostat control method. (Thermostat sold separately)
• An optional blower fan (sold separately) can be installed to enhance heat distribution.
• Built from durable cast iron.
• NFI Certified.

Specifications

Fuel Type: Liquid Propane Gas Only

Max. Input Rating: 28,000 BTU/hr.

Min. Input Rating: 21,500 BTU/hr.

Max. LPG Inlet Pressure: 14 in. W.C

Min. LPG Inlet Pressure: 11 in. W.C

Manifold Pressure: 10 in. W.C

Air Shutter Setting: 3/8 in.
