SCORPIO35DEN Scorpio 35 in. Direct Vent Natural Gas Fireplace, 20,000 BTUs

The Scorpio35DEN is a 35 in. natural gas fireplace rated at 20,000 BTUs an hour. This direct vent fireplace is from Astria's Scorpio series of units.

This fireplace uses a direct vent system that pulls combustion air from and vents any exhaust outdoors.

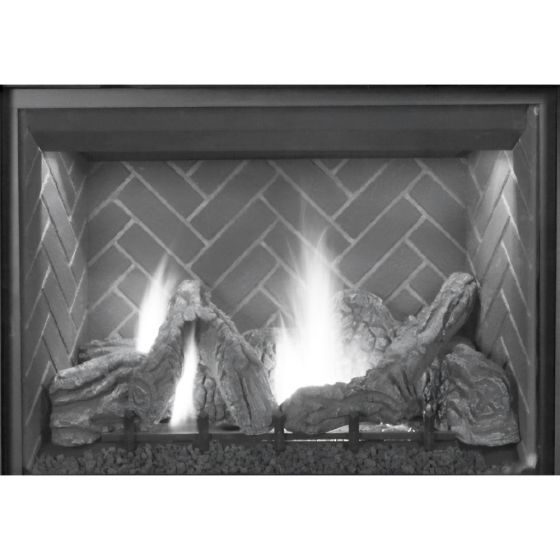

The Scorpio35DEN is a traditional-style fireplace unit that includes a log set, volcanic stone, and glowing embers.

Pilot Assembly Information

Scorpio35DEN units are capable of using either an electronic Proflame II or an EcoFlow natural gas pilot assembly. Either pilot supports remote control via a transmitter and receiver. A remote transmitter and receiver come standard with the fireplace.

A Scorpio35DEN unit with a Proflame II pilot will use different parts compared to a unit that uses an EcoFlow pilot. Always refer to the owner's manual for the fireplace for a full replacement parts chart.

Parts that begin with an H are typically going to be for the Proflame II pilot assembly. Part numbers that begin with a or F will typically be for an Ecoflow pilot.

Specifications for the Scorpio35DEN Fireplace

Heat Rating Range: 14,000 - 20,000 BTUs / Hr.

Minimum Gas Inlet Pressure: 5 in. W.C

Maximum Gas Inlet Pressure: 10.5 in. W.C

Manifold Gas Supply Pressure: 3.5 in. W.C

Main Burner Shutter Opening: 1/16 in.
