RG04-1M RG04-1M RECEIVER FOR PROCOM HEATERS

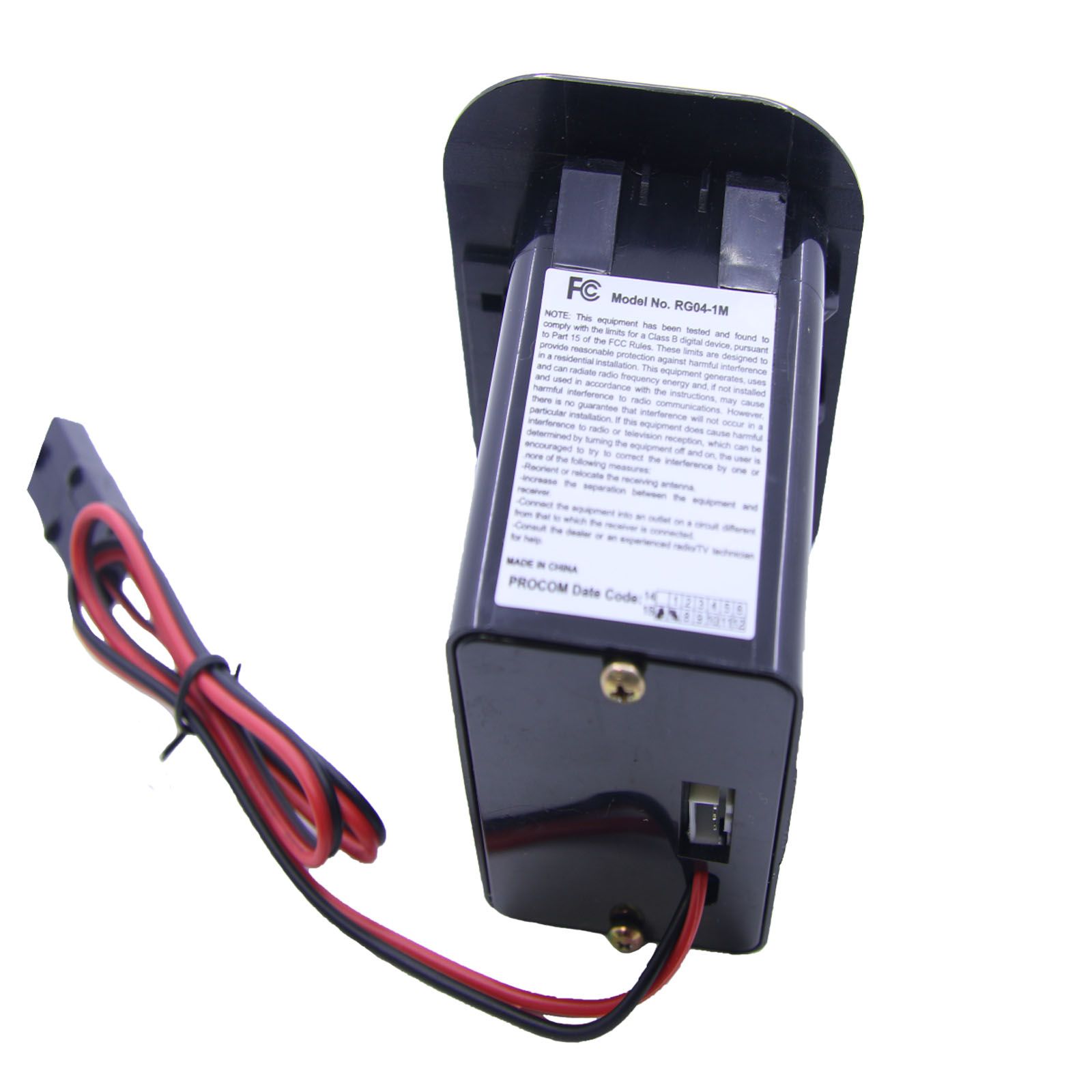

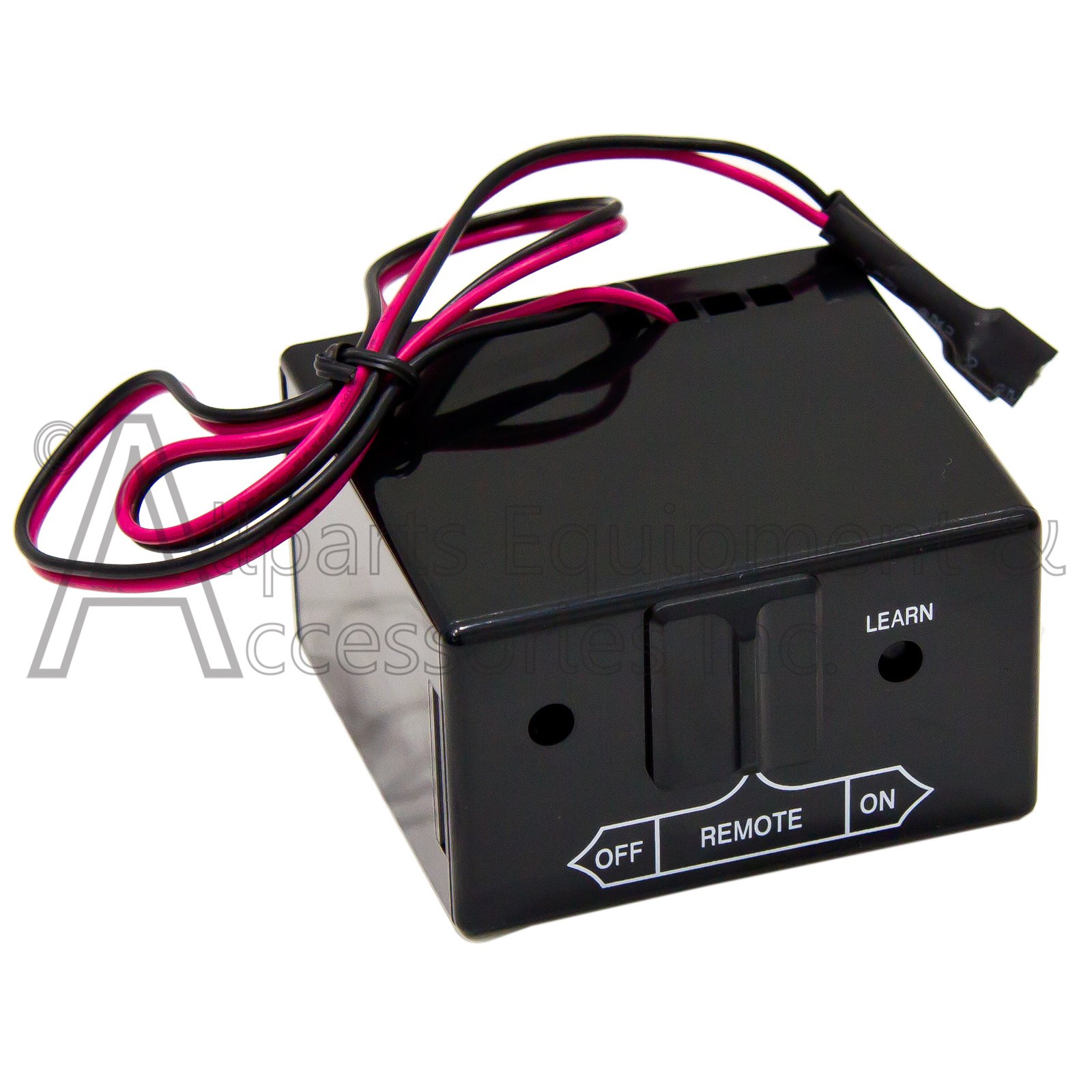

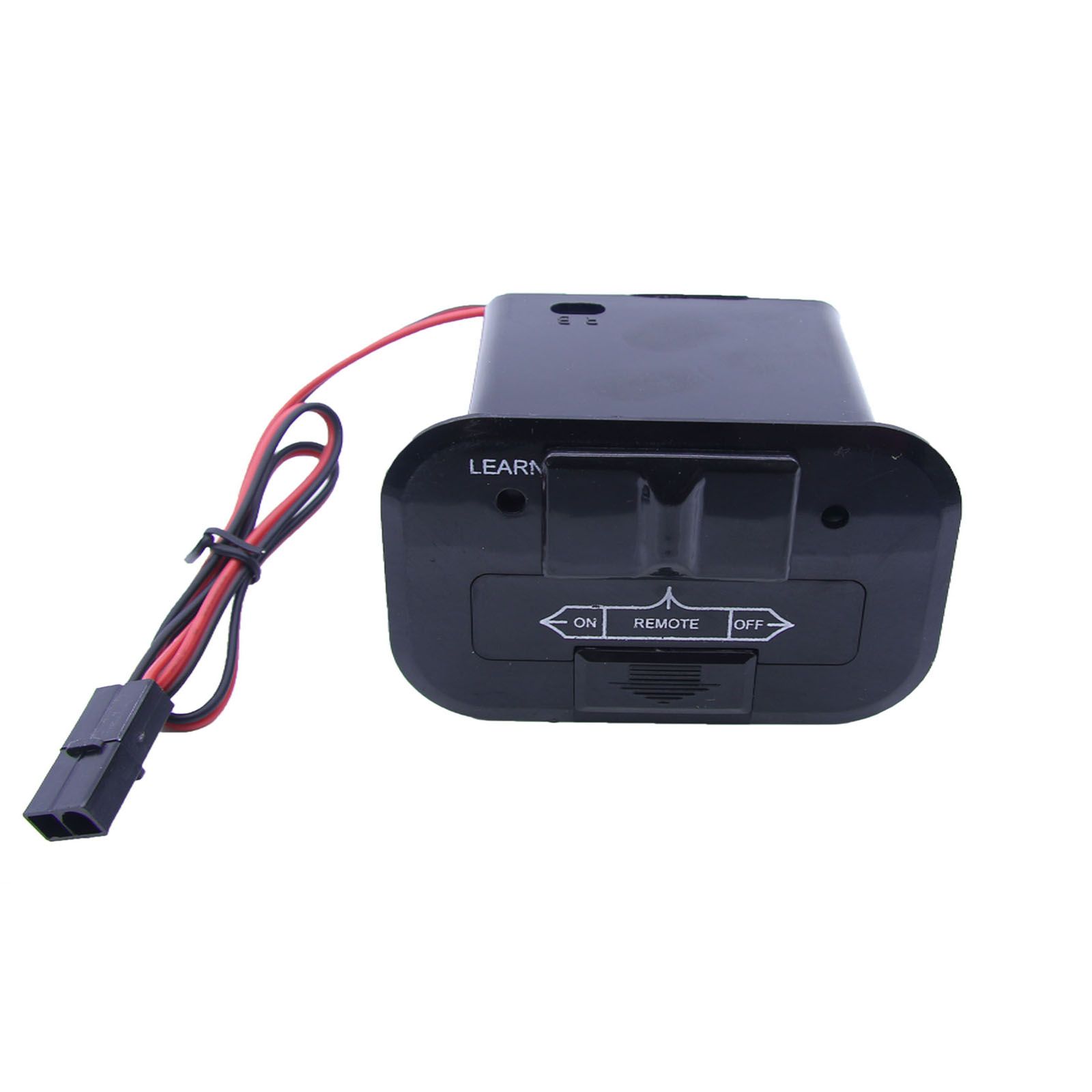

RG04-1M Procom receiver with connector for use with the RG04-1T Remote Transmitter and was a ProCom only item, we have been advised this item is No Longer Available and is now replaced with the UN3 6 Volt Receiver.
The UN3 is not an exact replacement receiver as it does "NOT" snap into the same location as the original RG04-1M receiver.
The new UN3 receiver can be placed behind the bracket or we suggest moving the receiver as far away from the flame as possible and placing the receiver box under the heat resistant SKY-RS-1 receiver box cover.
The UN3 receiver consist of the following items:
Double Wire connector
Requires 4 AA Batteries
In some applications the wiring harness from the old RG04-1M receiver will need to be reused if a new UN-3 Receiver is used.
This is simply done by loosening the small screws on the back of the receiver and exchanging the wire harnesses.
This RG04-1M Can be replaced with the CON-TH Remote Kit see service notes
Service Note:
The RG04-1M ProCom Receiver has a special housing and the UN3 "WILL NOT FIT" in the same spot.
We suggest to just place the receiver anyplace under the fireplace as far away from the burner as the wires will allow.
In some applications the wiring harness from the old RG04-1M receiver will need to be reused on the new UN-3 Receiver.
This is simply done by loosening the small screws on the back of the receiver and exchanging the wire harnesses.
