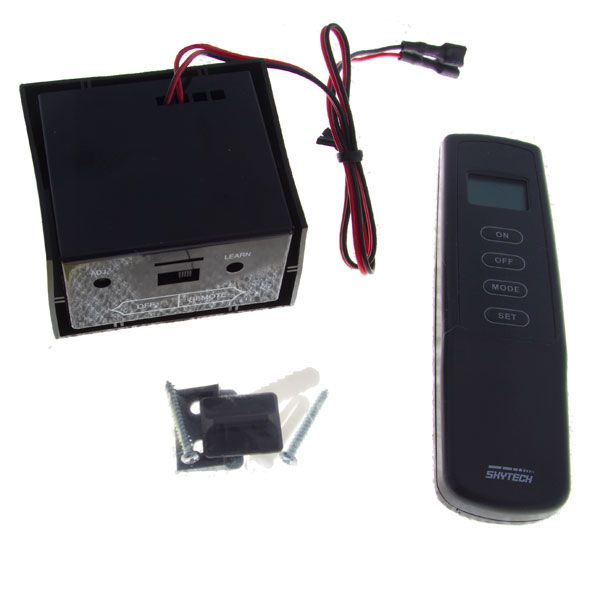

CON-TH REMOTE CONTROL KIT FOR LATCHING SOLENOID STYLE SYSTEMS

The Skytech CON-TH remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heating appliances, including fireplaces, gas log sets, stoves and wall heaters.

The system is operated manually from the remote handheld transmitter and operates on radio frequencies for worry free RF connections not requiring line of sight to operate efficiently within a 20-foot range using non-directional signals.

This CON-TN system operates on one of 255 security codes that are programmed into the UN3 transmitter at the factory.

Note: The remote receiver must learn the transmitter code prior to initial use.

This remote control SYSTEM offers the user a battery-operated remote Control to power a ON/OFF latching solenoid such as those used with gas valves used in some decorative gas logs, gas fireplaces and other gas heating appliances.

The circuit uses the battery power from the receiver to operate a latching solenoid.

The circuit has reversing polarity software which reverses the positive (+) and negative (-) output of the receiver’s battery power to drive solenoid (ON/OFF FLAME) or open/close.

The SYSTEM is controlled by the remote transmitter.

The transmitter operates on a 12V battery made specifically for remote Controls and electronic lighters. Before using the transmitter install the 12-volt (A-23) battery in the battery compartment.

The Skytech CON-TH  Remote System also offers the following features:

All battery operated Remote and Receiver.
LCD display for room and set temperatures in both F and C.
Single Function Control for operating Latching Solenoid Gas Valve Systems.
Radio Frequency Operated RF.

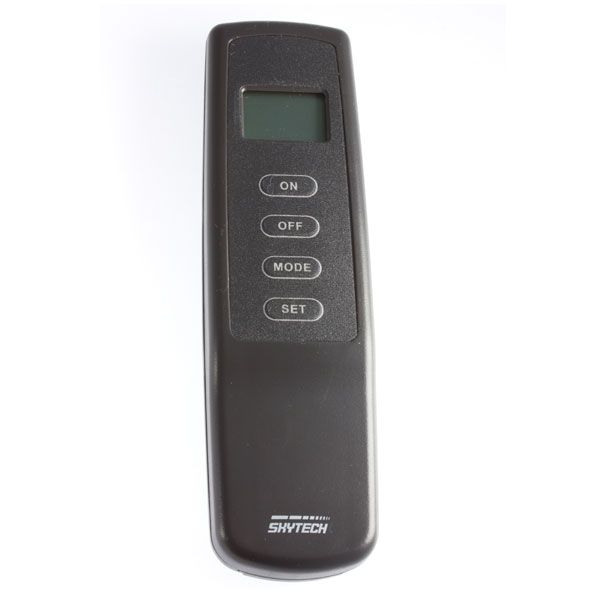

4-button ON/OFF/Mode/Set transmitter with fingerprint resistant surface.
Automatic Programming with multiple Security Codes.

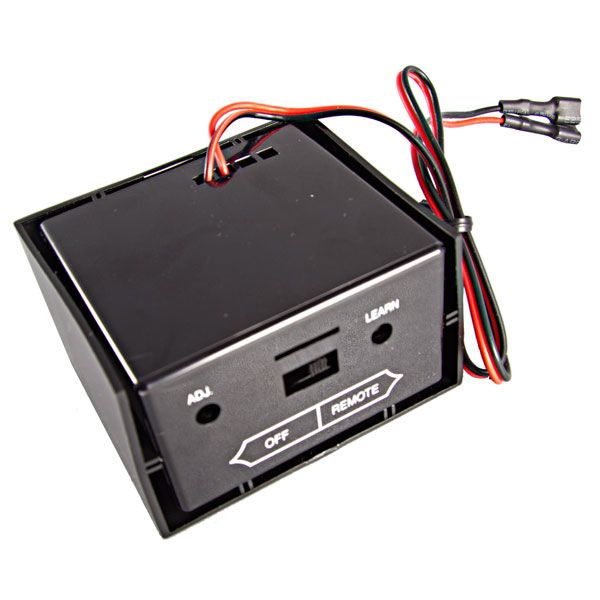

Receiver with learn function.

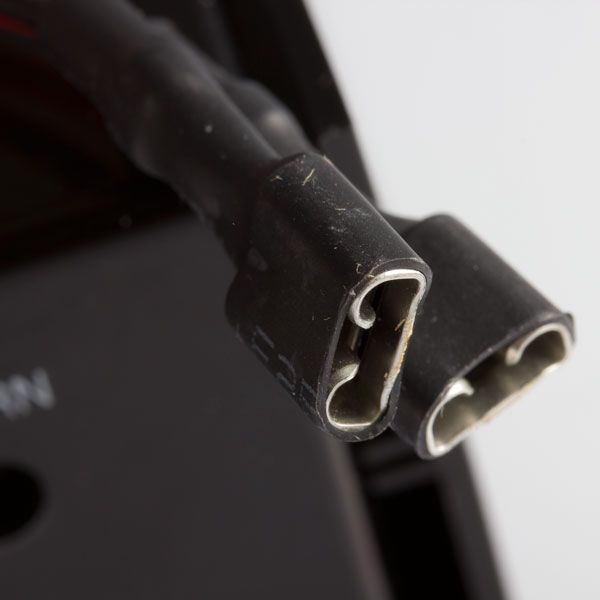

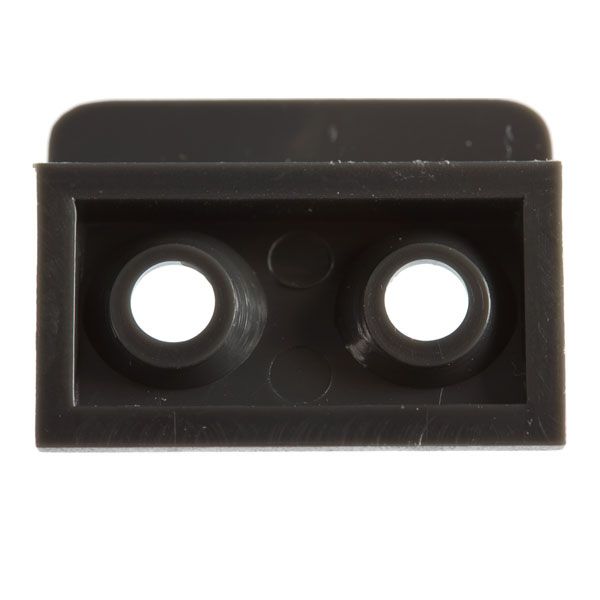

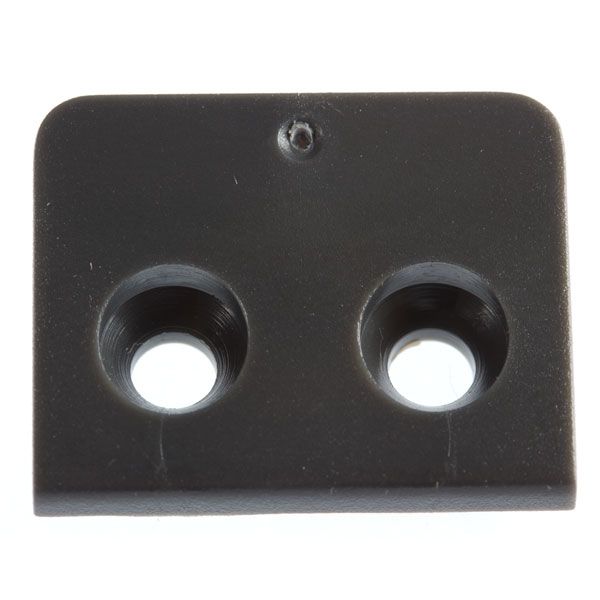

Snap-on wall plate with wires with connectors
