Be the first to review this product
N076027 oil lubricated air compressor pump kit

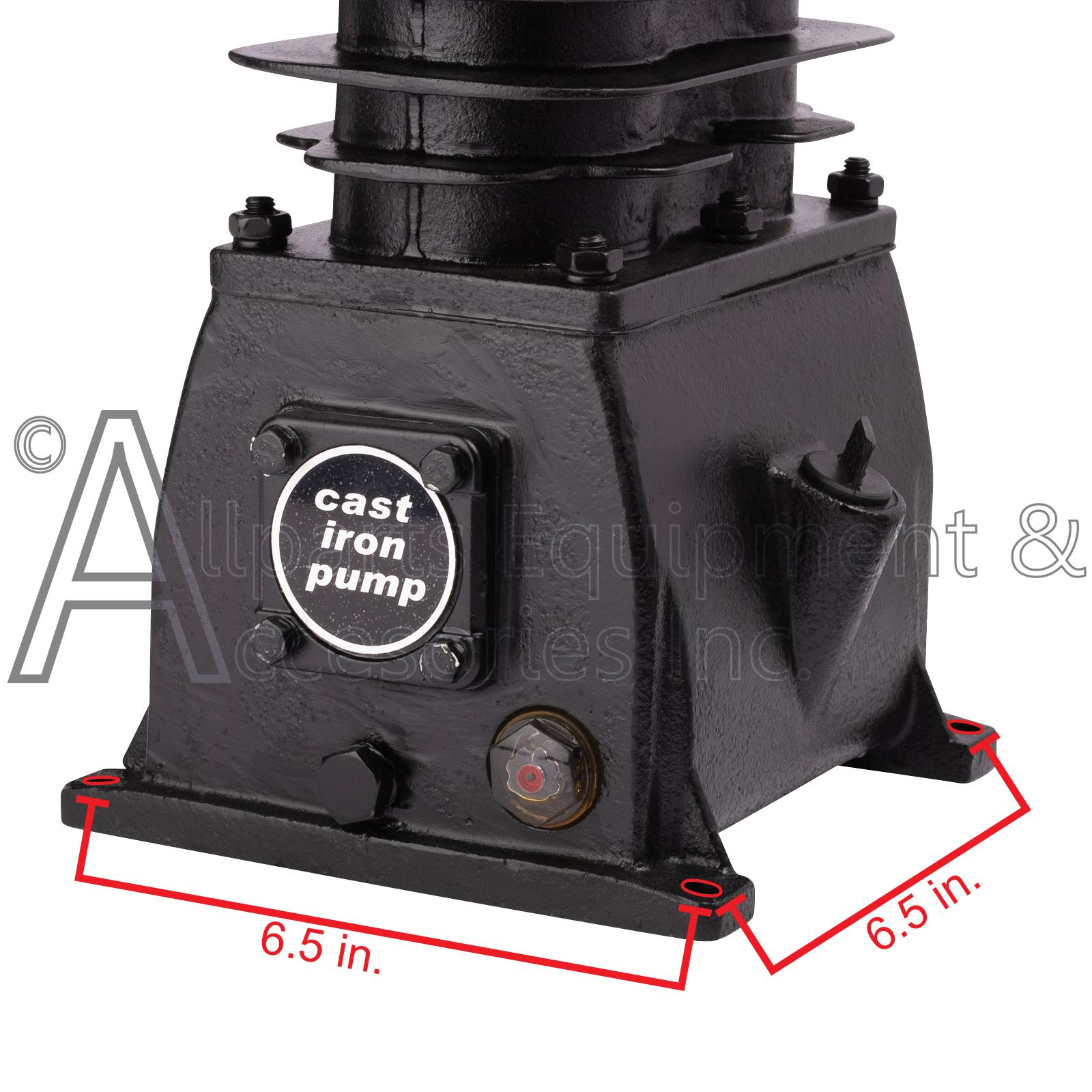

N076027 oil lubricated air compressor pump kit N076027 single stage air compressor pump The base mount measurements on the N076027 air compressor pump. F3269 cast iron cylinder F3269 crankcase oil breather Pump Service Kit Oil Lubricated Single Stage Cast Iron Twin Cylinder

N076027 Pump Service Kit Oil Lubricated Single Stage Cast Iron Twin Cylinder

In stock
Part Number
N076027
$469.90
Part Number: N076027
Compatible Brands: Black + Decker, Craftsman, DeVilbiss, Porter Cable
Shipping Weight: 65 Lbs
Documents:

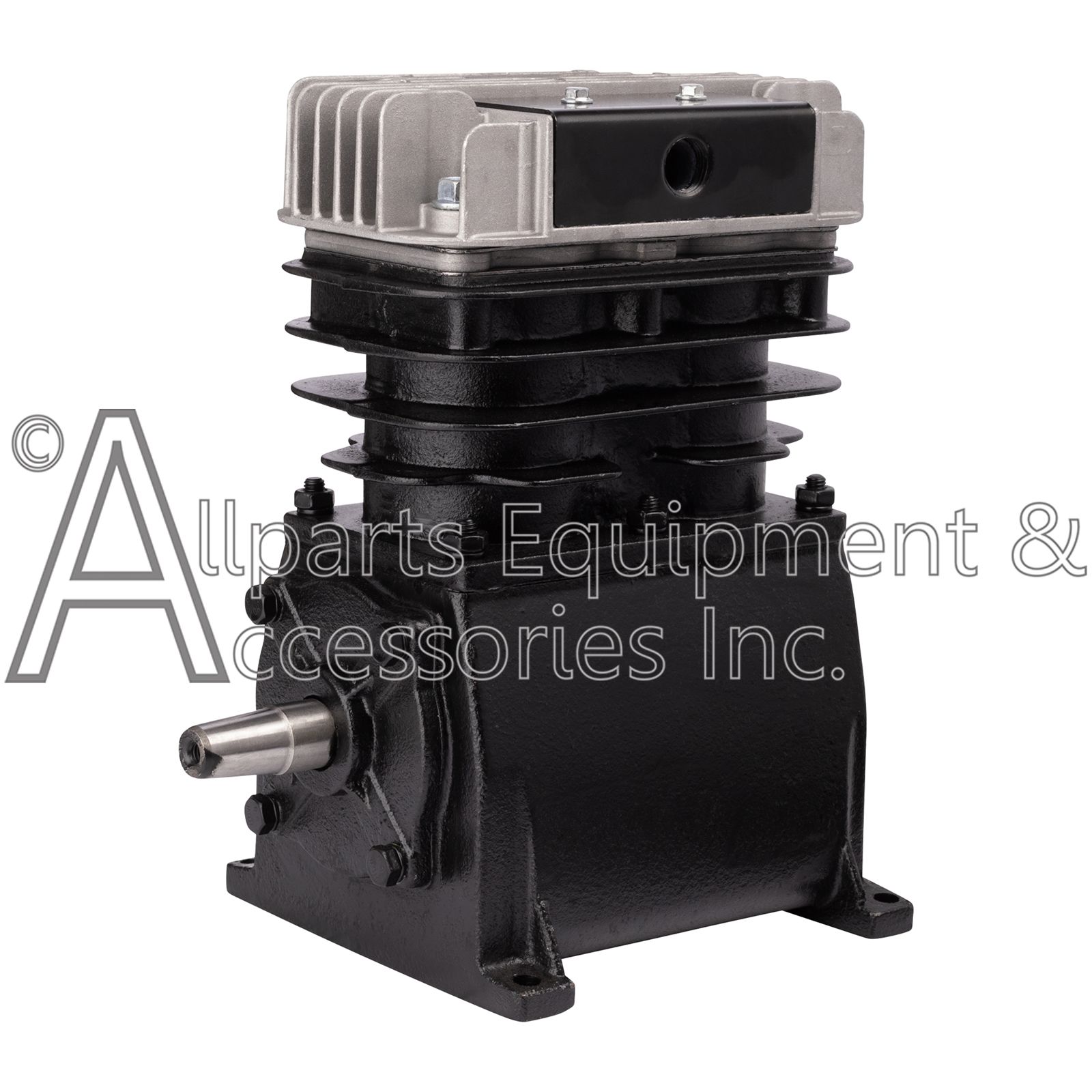

N076027 Pump replacement kit is the newest style twin cylinder oil lubricated pump available for the replacement of many of the previous model twin cylinder oil lubricated single stage pumps that were produced by DeVilbiss Air Power Company.

This pump is configured with the outlet side of the head facing the outside of the air compressor tank.

N076027 Replacement Oil Lubricated Pump Kit has the following new features:

  • New Cast Iron Crankcase.
  • Replaceable Cast Iron Cylinder.
  • Oil Sight Glass Window to view oil level.
  • Oil drain pump extension Tube for easier oil change and maintenance.
  • Crankcase oil breather.


N076027 Pump replacement kit will replace the following DeVilbiss oil lubricated pumps that were used by Sears Craftsman, Porter Cable, Air America, DeWALT and several other privately labels compressors.

These model include the CAC-4029 Pump, AC-0171 Pump, D22629 Pump, D22623 Pump, D22625 Pump, CAC-4026 Pump and most twin cylinder oil lubricated air compressor pumps that were manufactured by DeVilbiss Air Power Equipment out of Jackson Tennessee.

N076027 has a slightly smaller bore than the previous Aluminum style pumps and will take approximately 36 seconds longer to reach the cut out pressure.

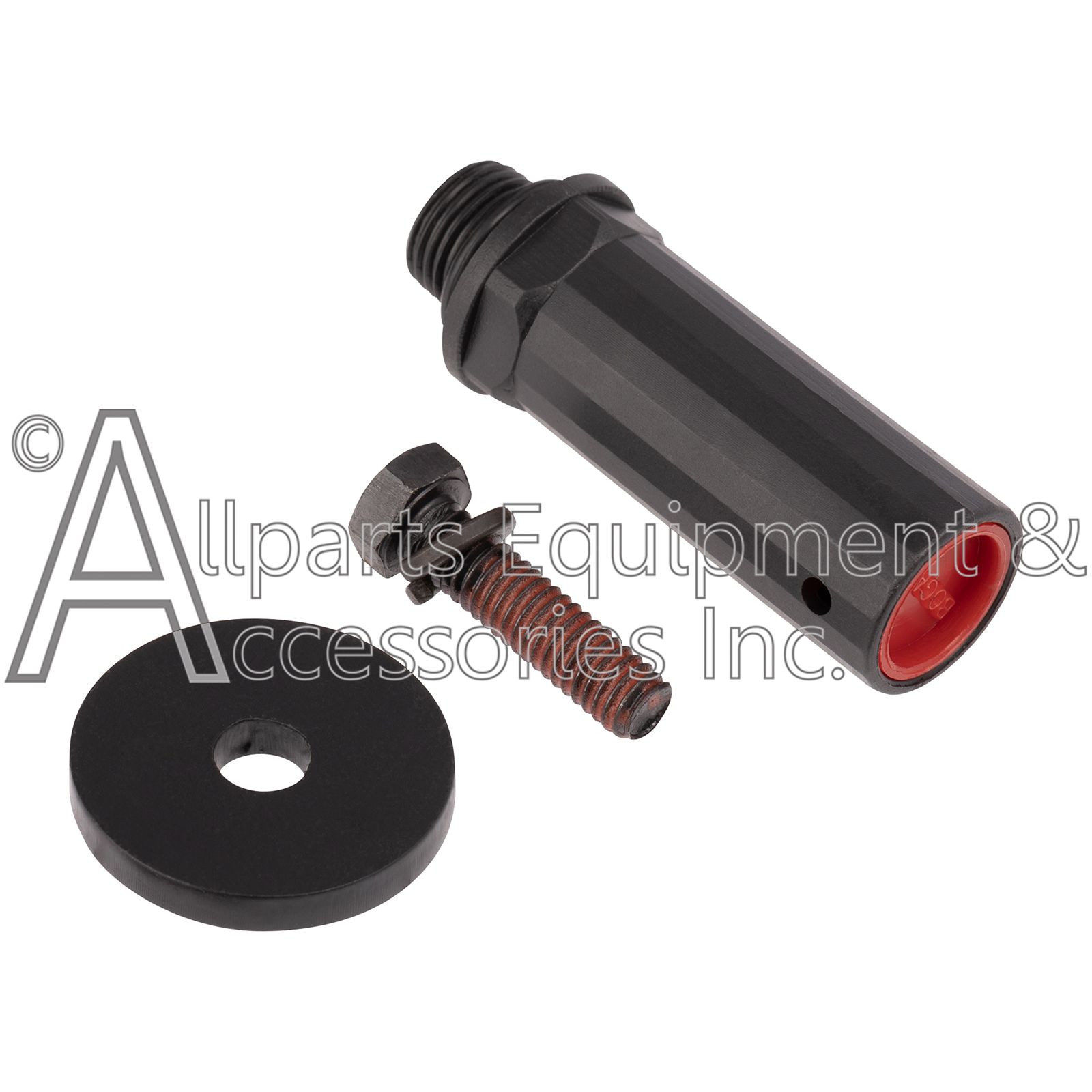

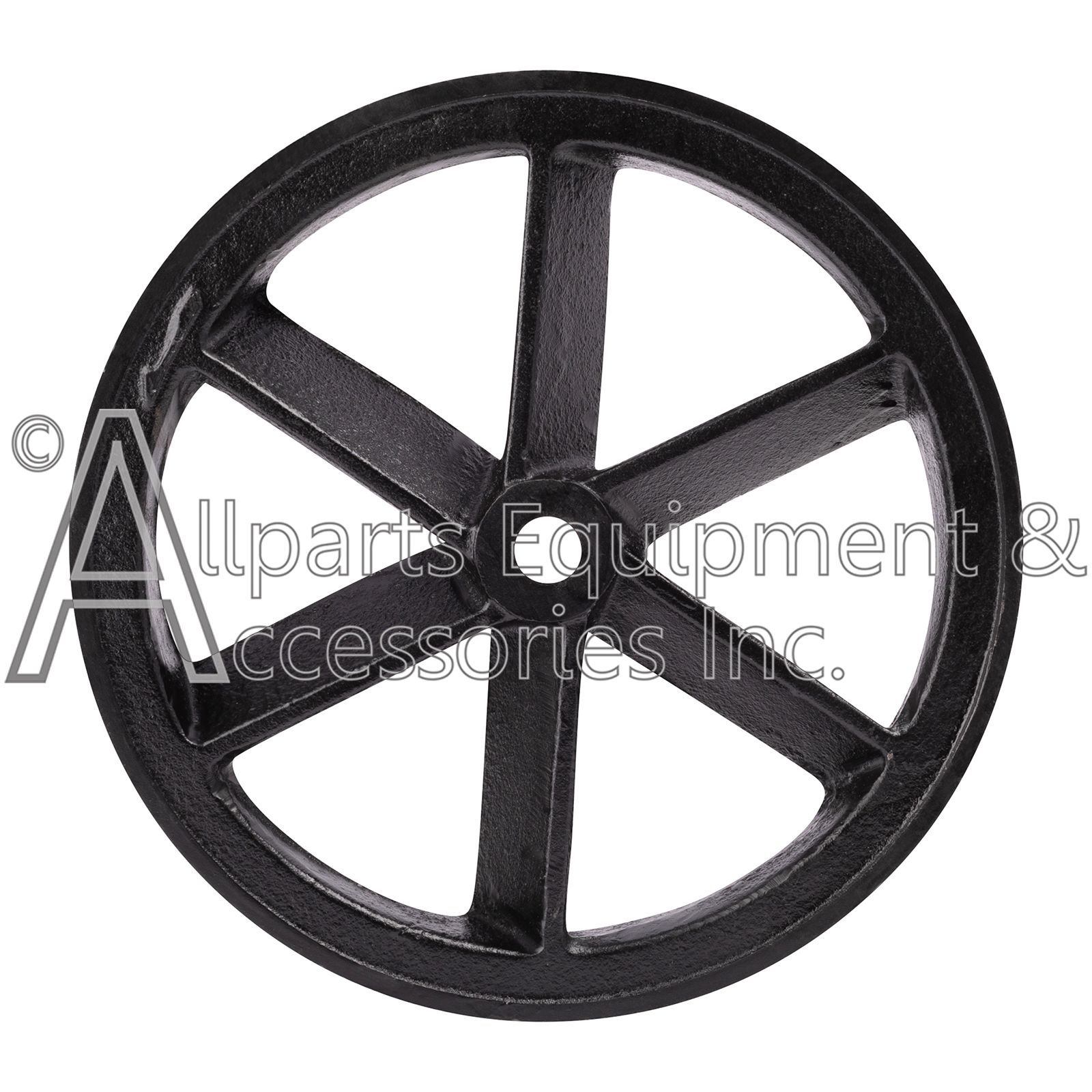

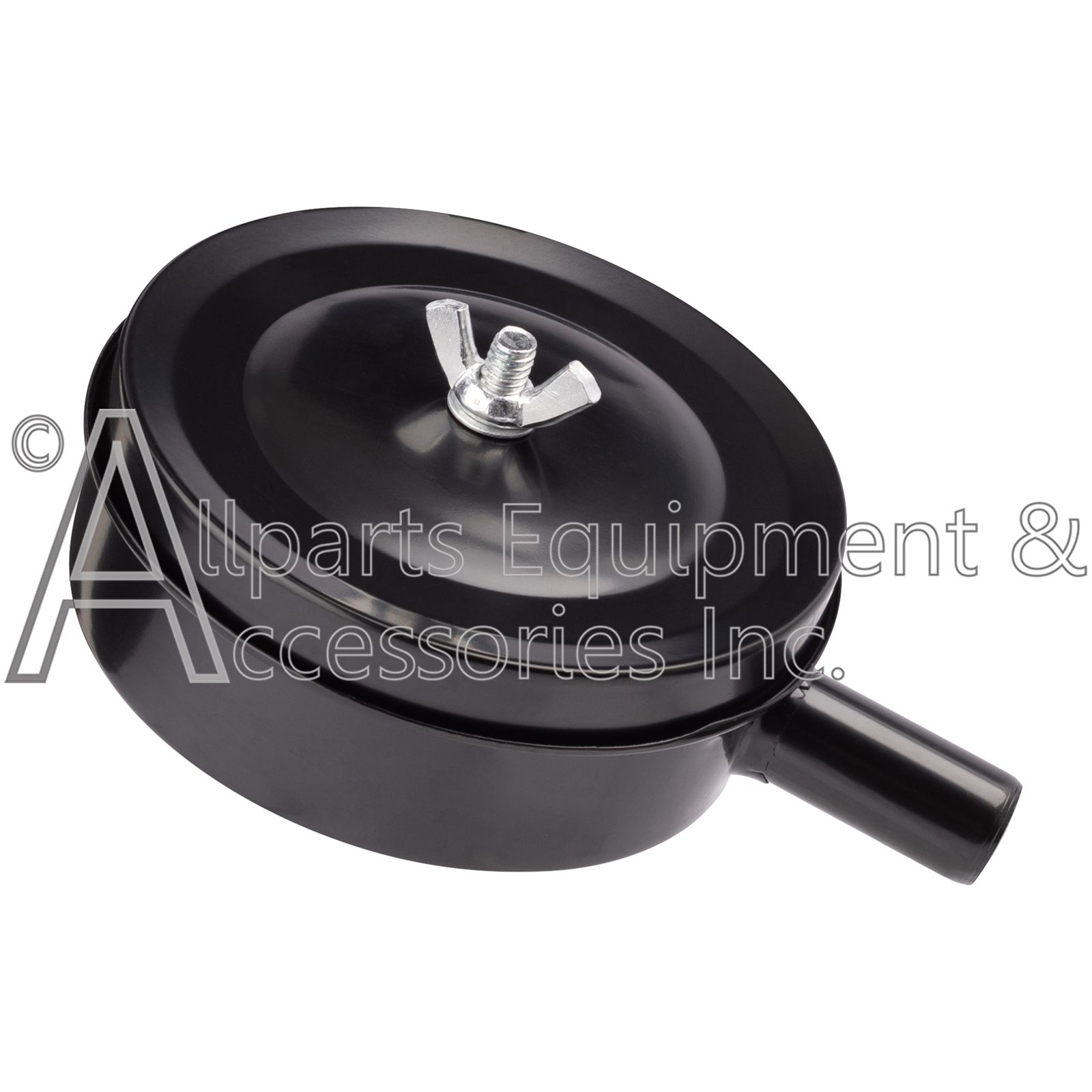

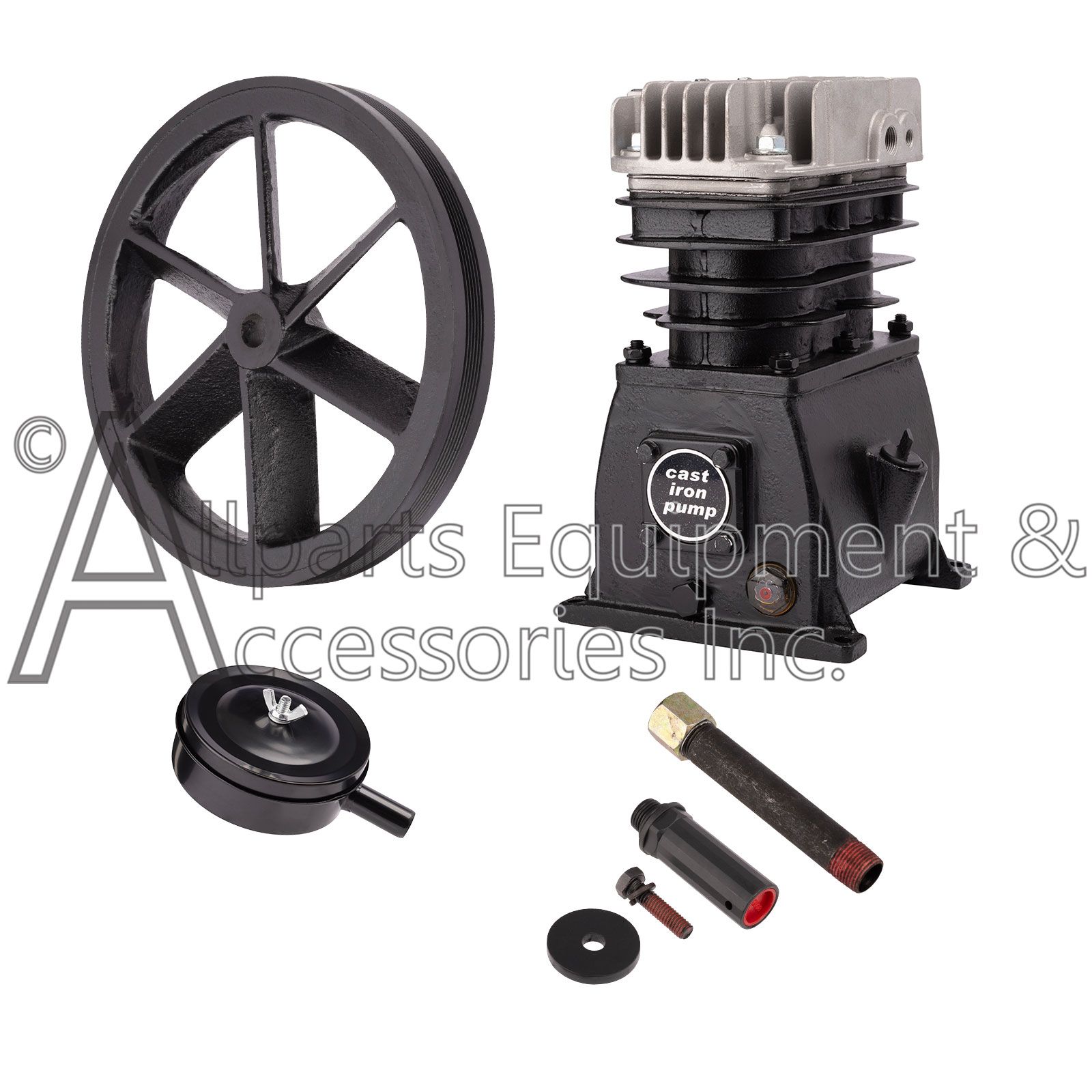

This replacement pump comes with a new Extended Vent Case Breather Tube, Automotive Style Screw In Air Filter, Flywheel with Bolt and Washer so that the N076027 Pump Kit will fit numerous applications.

The footprint and pulley on the new N076027 Pump are exactly the same and on most application only the pump will need to be changed.

The N076027 Pump can be used to replace the following air compressor pumps.

AC-0336 Twin Cylinder Oil Lubricated Pump

D22620 Twin Cylinder Oil Lubricated Pump

D22261



This N076027 replacement pump is compatible with following models :


L660V-CA A 6.0HP 60G VS OL 1STG 24

CPL55GH8W A 5.5HP 8G WB OL 1STG GAS

ACBL660V A 6.0HP 60G VS OL 1STG 24

CPLC7060V-CA

RAC5E20AD-CA A 5.0HP 20G HP OL 1STG 24

IR25E20AD A 2.5HP 20G HP OL 1STG 12

IR5E30AD A 5.0HP 30G HP OL 1STG 24

IRC5E60VAD A 5.0HP 60G VS OL 1STG 24

L6520-CA A 6.5HP 20G HP OL 1STG 24

L560V A 5.0HP 60G VS OL 1STG 24

RAC5E60VAD A 5.0HP 60G VS OL 1STG 24

IRL6560V-CA POCKET HOLE JIG KIT

ACBL520-CA A 5.0HP 20G HP OL 1STG 12

IR5E60VAD A 5.0HP 60G VS OL 1STG 24

L6530-CA A 6.5HP 30G HP OL 1STG 24

EXLC7060V A 7.0HP 60G VS OL 1STG 24

RA5E20AD-CA A 5.0HP 20G HP OL 1STG 24

AFL660V A 6.0HP 60G VS OL 1STG 24

RALC6560V-CA

C7501M COMPRESSOR

IR25E20AD-CA A 2.5HP 20G HP OL 1STG 12

PALC520 A 5.0HP 20G HP OL 1STG 12

RAC5E60VAD-CA

L520-CA A 5.0HP 20G HP OL 1STG 12

L530 A 5.0HP 30G HP OL 1STG 12

EXL6560V-CA

PALC6520 A 6.5HP 20G HP OL 1STG 24

L530-CA

RAC5E20AD A 5.0HP 20G HP OL 1STG 24

IR5E60VAD-CA CPLC7060V

A 7.0HP 60G VS OL 1STG 24

RALC6520 A 6.5HP 20G HP OL 1STG 24

AFL520-CA A 5.0HP 20G HP OL 1STG 12

RA6E60VAD-CA 919-18695

A 6.5HP 20G HP OL 1STG 24

IRC5E20AD-CA A 5.0HP 20G HP OL 1STG 24

C7501M-CA COMPRESSOR

L6560V A 6.5HP 60G VS OL 1STG 24

IR5E20AD A 5.0HP 20G HP OL 1STG 24

IRC5E60VAD-CA

RA5E60VAD-CA

RAL6560V A 6.5HP 60G VS OL 1STG 24

RALC6520-CA A 6.5HP 20G HP OL 1STG 24

RAL6560V-CA

IRLC6560V A 6.5HP 60G VS OL 1STG 24

HL6560V A 6.5HP 60G VS OL 1STG 24

IR5E20AD-CA A 5.0HP 20G HP OL 1STG 24

IRC6E60VAD A 6.0HP 60G VS OL 1STG 24

IR5E30AD-CA A 5.0HP 30G HP OL 1STG 24

EXLC7060V-CA L6520

A 6.5HP 20G HP OL 1STG 24

919-186950-CA A 6.5HP 20G HP OL 1STG 24
919-72800CA 6.5HP 20G HP OL 1STG 24

IRL6530 A 6.5HP 30G HP OL 1STG 24

L520 A 5.0HP 20G HP OL 1STG 12

IR6E60VAD A 6.0HP 60G VS OL 1STG 24

IRL6520-CA A 6.5HP 20G HP OL 1STG 24

ACBL520 A 5.0HP 20G HP OL 1STG 12

RAL6520 A 6.5HP 20G HP OL 1STG 24

AFL660V-CA A 6.0HP 60G VS OL 1STG 24

RAL6520-CA A 6.5HP 20G HP OL 1STG 24

ACBL760V-CA

CPL55GH8W-CA

RALC6560V A 6.5HP 60G VS OL 1STG 24

IRL6530-CA A 6.5HP 30G HP OL 1STG 24

RA5E60VAD A 5.0HP 60G VS OL 1STG 24

HL7060V A 7.0HP 60G VS OL 1STG 24

L6560V-CA

PALC520-CA A 5.0HP 20G HP OL 1STG 12

IRC6E60VAD-CA PALC6560V

A 6.5HP 60G VS OL 1STG 24

IRLC6520-CA A 6.5HP 20G HP OL 1STG 24

IR6E60VAD-CA IRL6520

A 6.5HP 20G HP OL 1STG 24

L6530 A 6.5HP 30G HP OL 1STG 24

PALC7060V A 7.0HP 60G VS OL 1STG 24

AFL520 A 5.0HP 20G HP OL 1STG 12

HL6560V-CA

ACBL760V A 7.0HP 60G VS OL 1STG 24

RA5E20AD A 5.0HP 20G HP OL 1STG 24

IRL6560V A 6.5HP 60G VS OL 1STG 24

AFL560V-CA POCKET HOLE JIG KIT

L560V-CA POCKET HOLE JIG KIT

PALC6560V-CA POCKET HOLE JIG KIT

IRC5E20AD A 5.0HP 20G HP OL 1STG 24

ACBL660V-CA A 6.0HP 60G VS OL 1STG 24

EXL6560V A 6.5HP 60G VS OL 1STG 24

PALC6520-CA A 6.5HP 20G HP OL 1STG 24

IRLC6520 A 6.5HP 20G HP OL 1STG 24

IRLC6560V-CA

RA6E60VAD A 6.0HP 60G VS OL 1STG 24

PALC7060V-CA A 7.0HP 60G VS OL 1STG 24

L660V A 6.0HP 60G VS OL 1STG 24

HL7060V-CA

AFL560V A 5.0HP 60G VS OL 1STG 24
