7106572 AAA REPLACEMENT TRIPLEX PLUNGER PUMP

7106572 AAA Triplex Plunger Pump is a highly efficient pump that minimizes engine load while delivering top performance...

This AAA Replacement service pump is a Triplex Plunger Pump equipped with a patented Powerboost technology that provides higher pressure at the spray nozzle and contains dual oversized ball bearings for better wear, friction resistance and longer lasting performance in tough cleaning environments.

Features of the 7106572:

3400 PSI @ 2.5 GPM MAX PSI
PowerBoost Technology

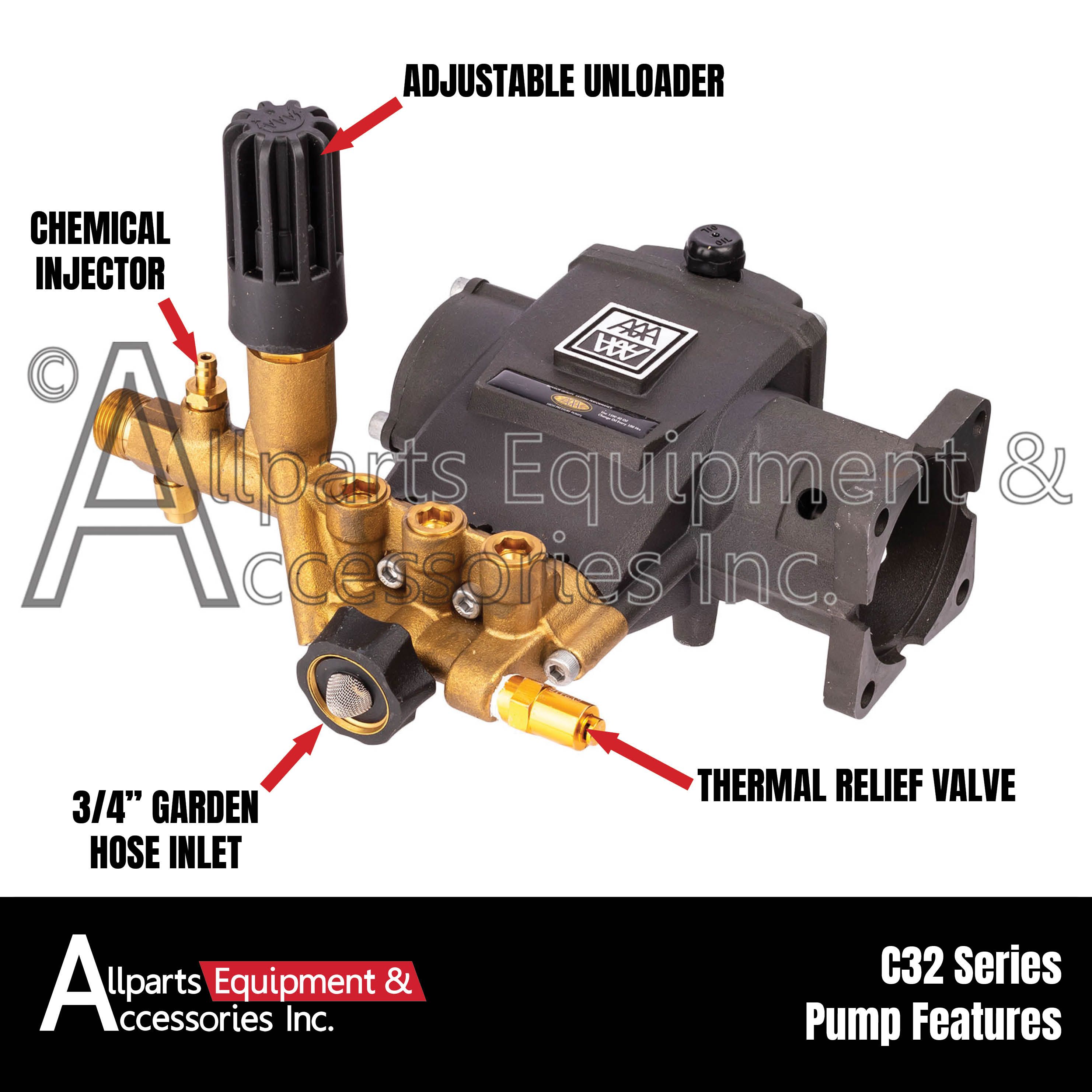

Fully adjustable unloader system with ergonomic control
Sight glass and advanced oil seal technology does away with the need for a dipstick
Thermal relief protection to prevent pump overheating
Dual oversized radial ball bearings are installed for better wear, friction resistance and precision ceramic coated pistons for extended seal life
The crankcase is manufactured from fully anodized die cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure
Gas engine flange and hollow shaft that fits most horizontal shaft engines

Specifications:

PSI: 3400
GPM: 2.5

Inlet Port: 3/4" GH
Discharge Port: Threaded male fitting
Inlet Pressure Range: 10-60 PSI
Thermal Relief Port: 1/4" NPT

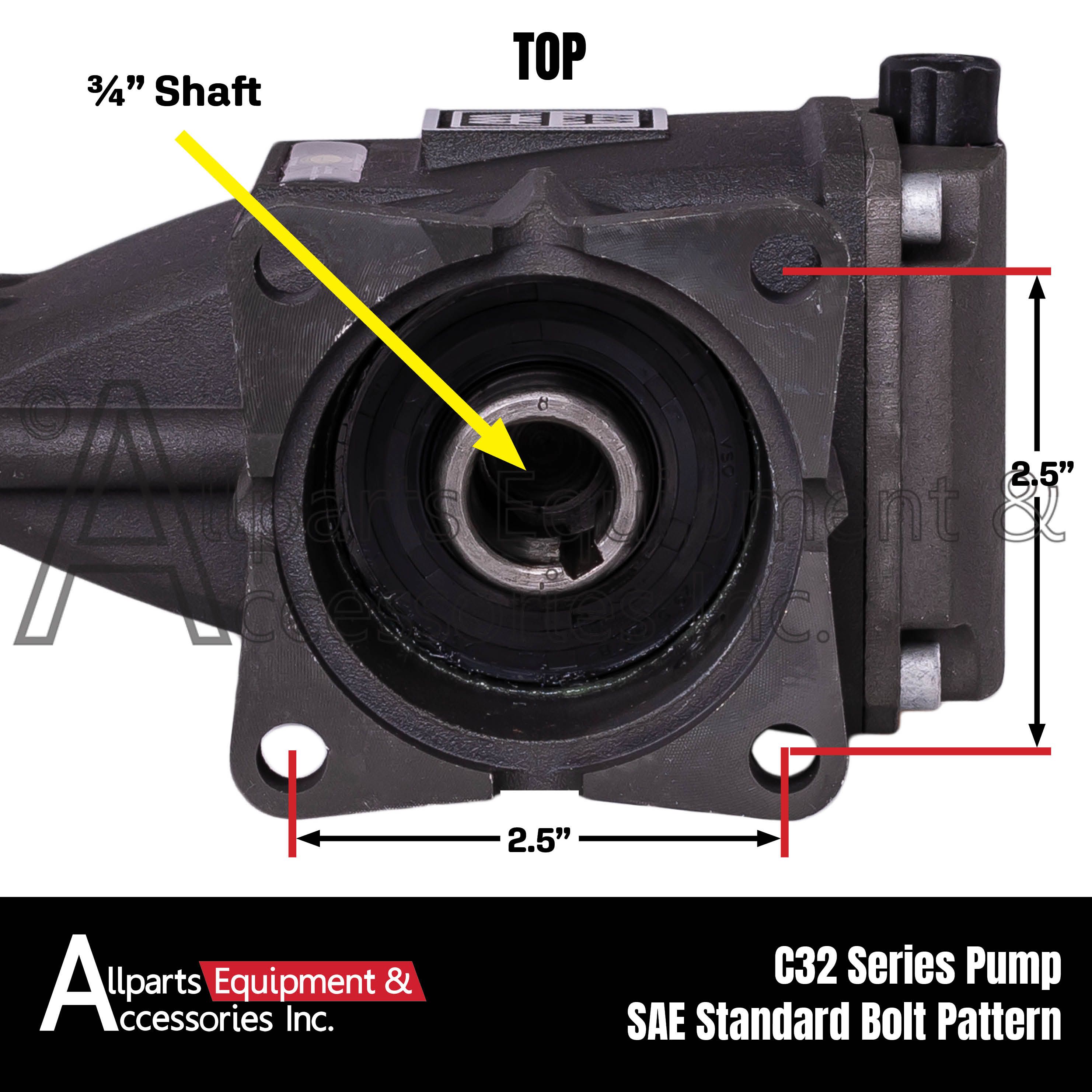

Shaft Diameter: 3/4"
Flange Bolt Pattern: SAE J-609A
Key Way: 3/16"
Pump Oil Capacity: 8.0 fl oz.
PowerBoost: Yes
Head: Brass
