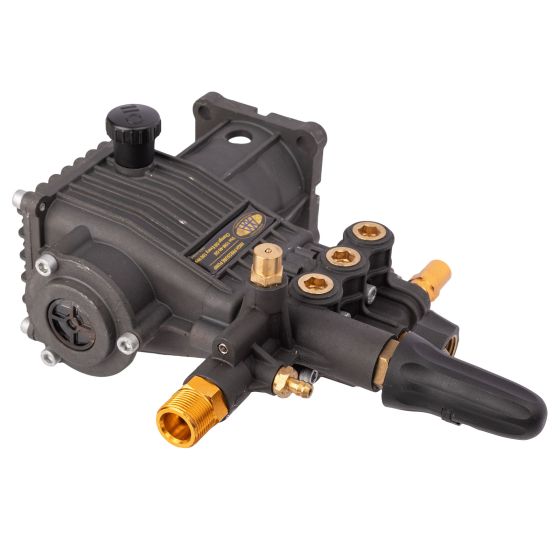

530017 PHOENIX CY SERIES HORIZONTAL TRIPLEX PUMP 3700 PSI

530017 CY Series AAA™ Horizontal Triplex Plunger Pump is a highly efficient pump that minimizes engine load while delivering top performance.

This AAA 530017 53ALD24 Triplex Plunger Pump is equipped with patented PowerBoost™ technology, which provides higher pressure at the spray nozzle.

The 530017 contains dual oversized ball bearings for better wear, friction resistance, and longer-lasting performance in tough cleaning environments.

Features Of The 530017 Pump:

3400 PSI @ 2.5 GPM PowerBoost™ Technology
Preset Unloader system.
Advanced oil seal technology does away with the need for a dipstick.
Thermal relief protection to prevent pump overheating, 140-degree preset.
Dual oversized radial ball bearings are installed for better wear and longer pump life.

Friction resistance, ceramic-coated pistons for extended seal life.

Crankcase is manufactured from fully anodized die-cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure.

Gas engine flange and hollow shaft that fits most horizontal shaft engines.

Specifications:

PSI: 3400 GPM:
2.5 Inlet Port: 3/4" Garden Hose Connector
Discharge Port: Threaded 22MM Male fitting Inlet
Pressure Range: 10-60 PSI
Thermal Relief Port: 1/4"
NPT Shaft Diameter: 3/4"
Flange Bolt Pattern: SAE J-609A
Key Way: 3/16"
Pump Oil Capacity: 8.0 fl oz.
PowerBoost®: Yes
Head: Original was Aluminum but replacement pump is Brass.
Crankcase: 7110120
