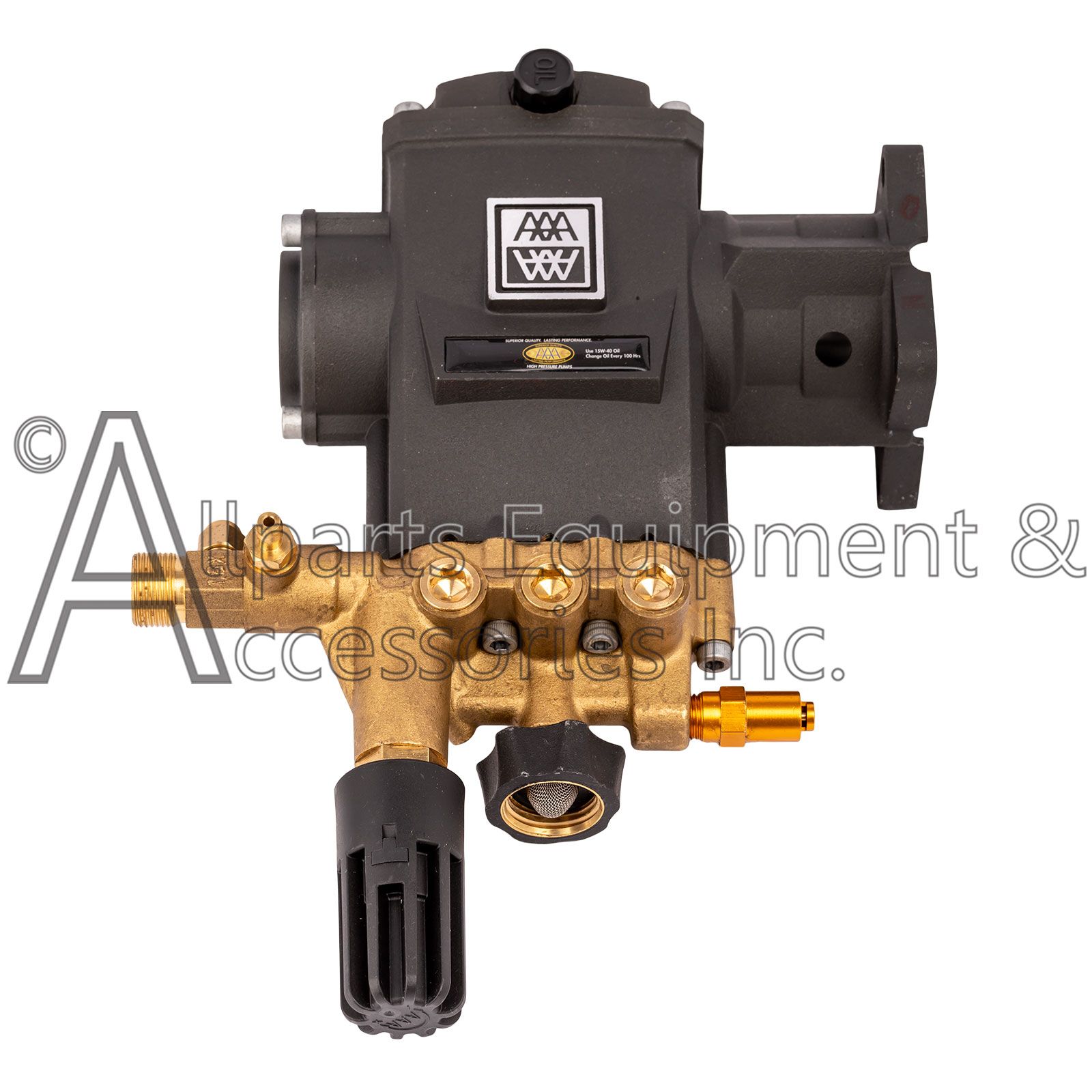

90036 AAA Triplex Plunger Pump Kit 3200 PSI at 2.8 GPM

90036 AAA triplex pump is a highly efficient pump that minimizes engine load while delivering top performance.

AAA pumps are equipped with Patented Powerboost technology that provides higher pressure at the spray nozzle.

The 90036 pump contains dual oversized ball bearings for better wear, friction resistance and longer lasting performance in tough cleaning environments. 90036 pump is equipped with the Easy-Start feature.

Features:

• 3200 PSI @ 2.8 GPM
• PowerBoost Technology
• Fully adjustable unloader system with ergonomic control
• Sight glass and advanced oil seal technology, does away with the need for a dipstick
• Thermal relief protection to prevent pump overheating
• Dual oversized radial ball bearings are installed for better wear, friction resistance and
• precision ceramic coated pistons for extended seal life
• Crankcase is manufactured from fully anodized die cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure
• Forged brass head
• Gas engine flange and hollow shaft that fits most horizontal shaft engines

Specifications:

• PSI: 3200
• GPM: 2.8

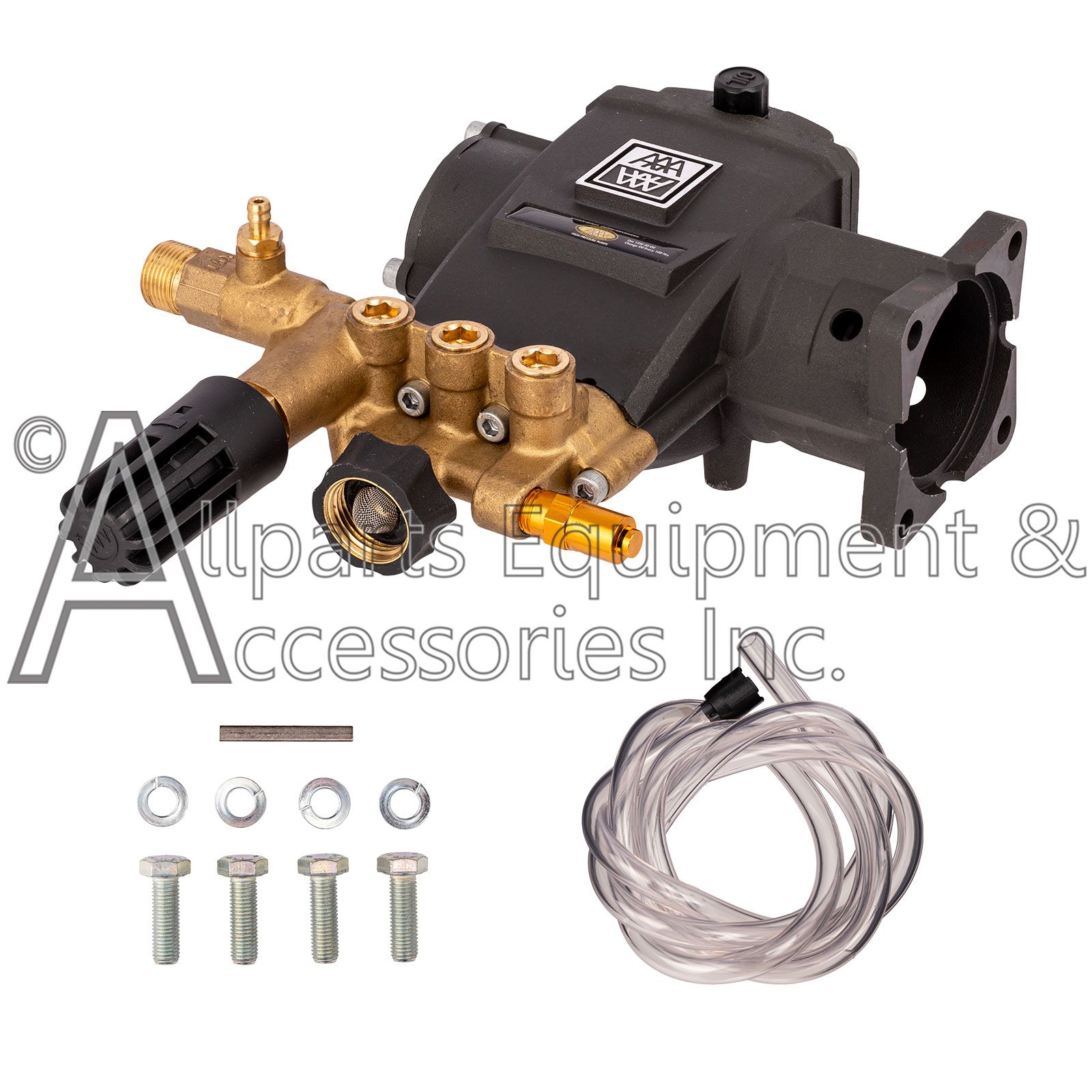

• Kit Includes: Siphon tube with filter, mounting bolts and shaft key

• Inlet Port: 3/4 GH
• Discharge Port: Threaded M22 male connection
• Inlet Pressure Range: 10-60 PSI
• Thermal Relief Port: 1/4" NPT
• Shaft Diameter: 3/4"
• Flange Bolt Pattern: SAE J-609A
• Key Way: 3/16"
• Pump Oil Capacity: 8.0 FL oz.
• PowerBoost: Yes
• Head: Brass
