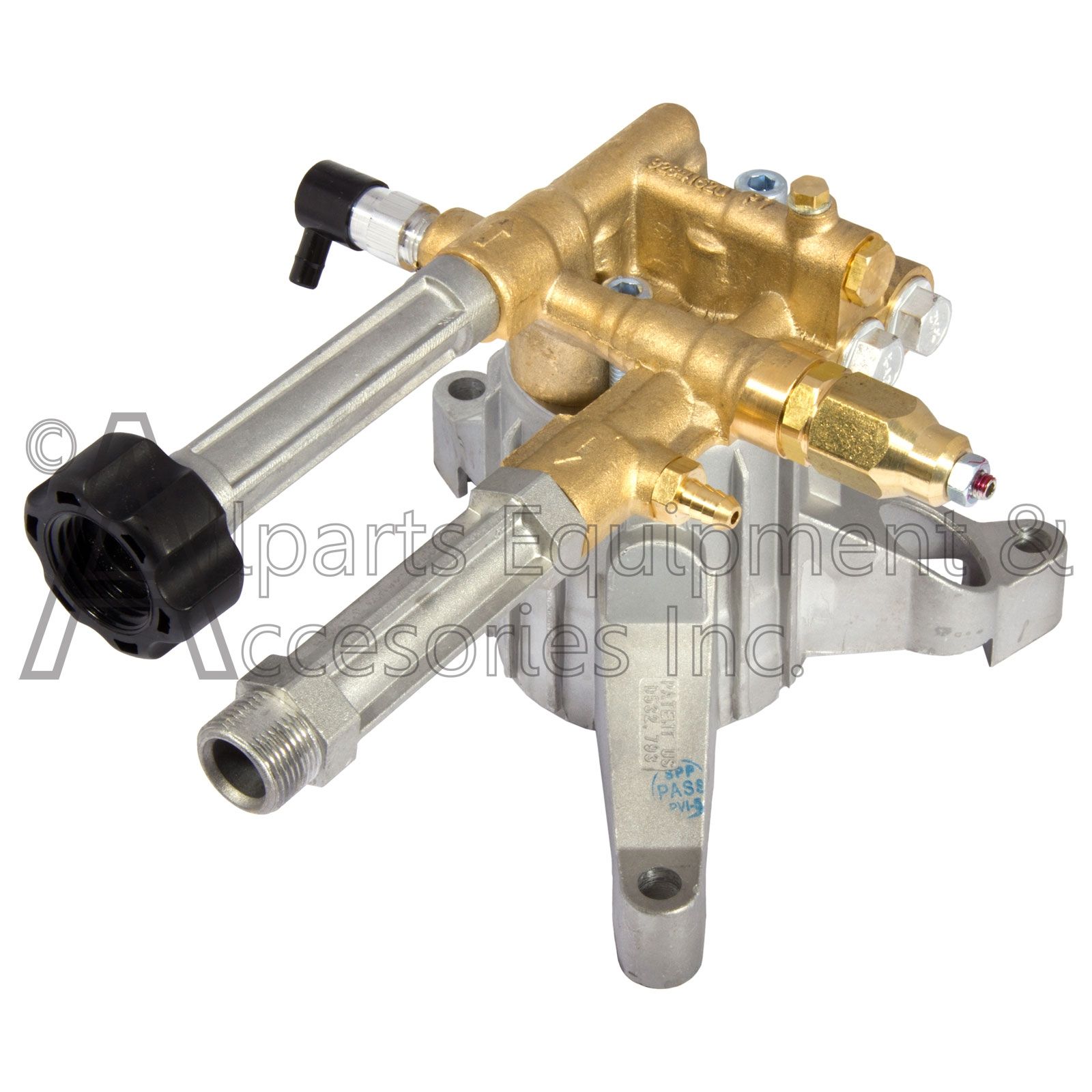

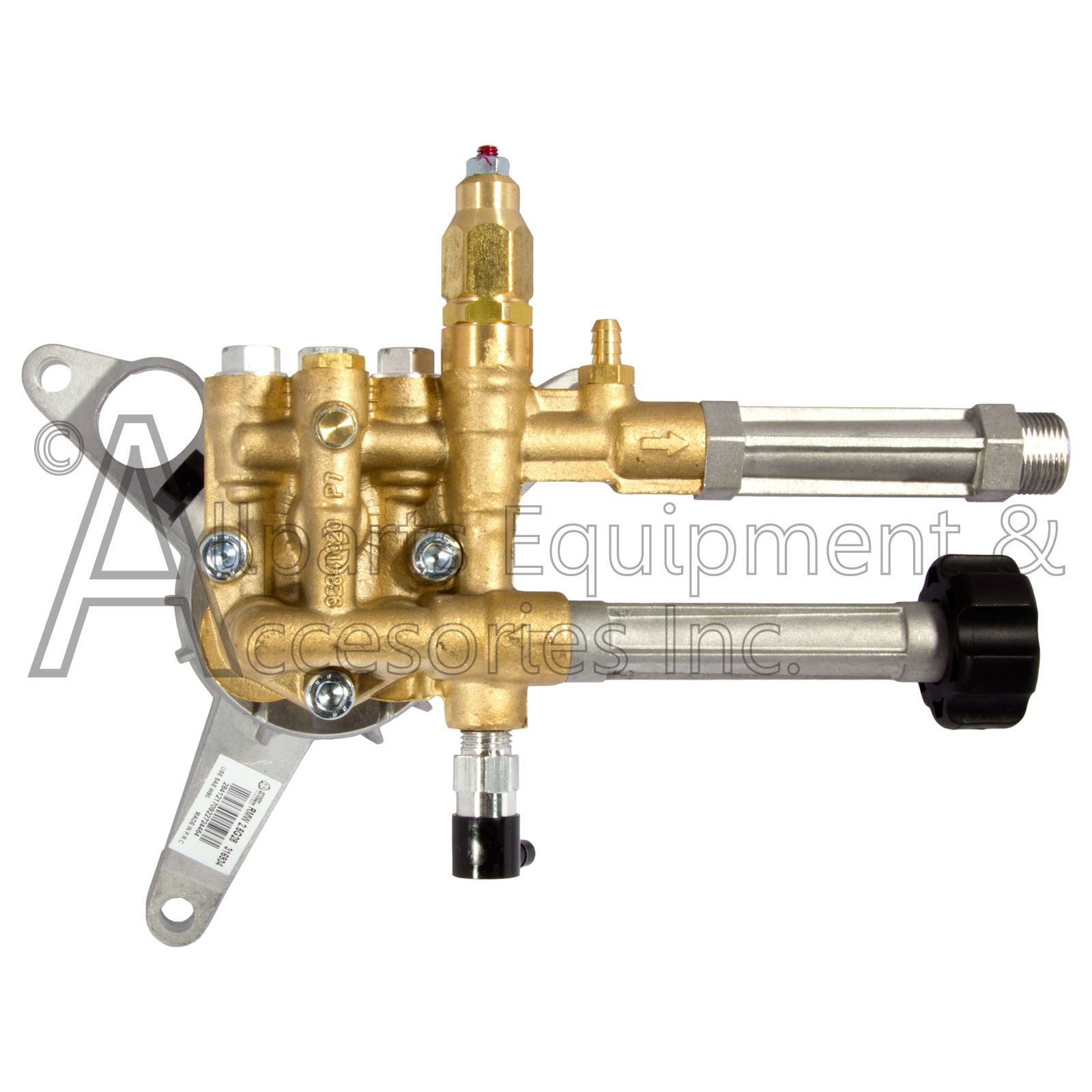

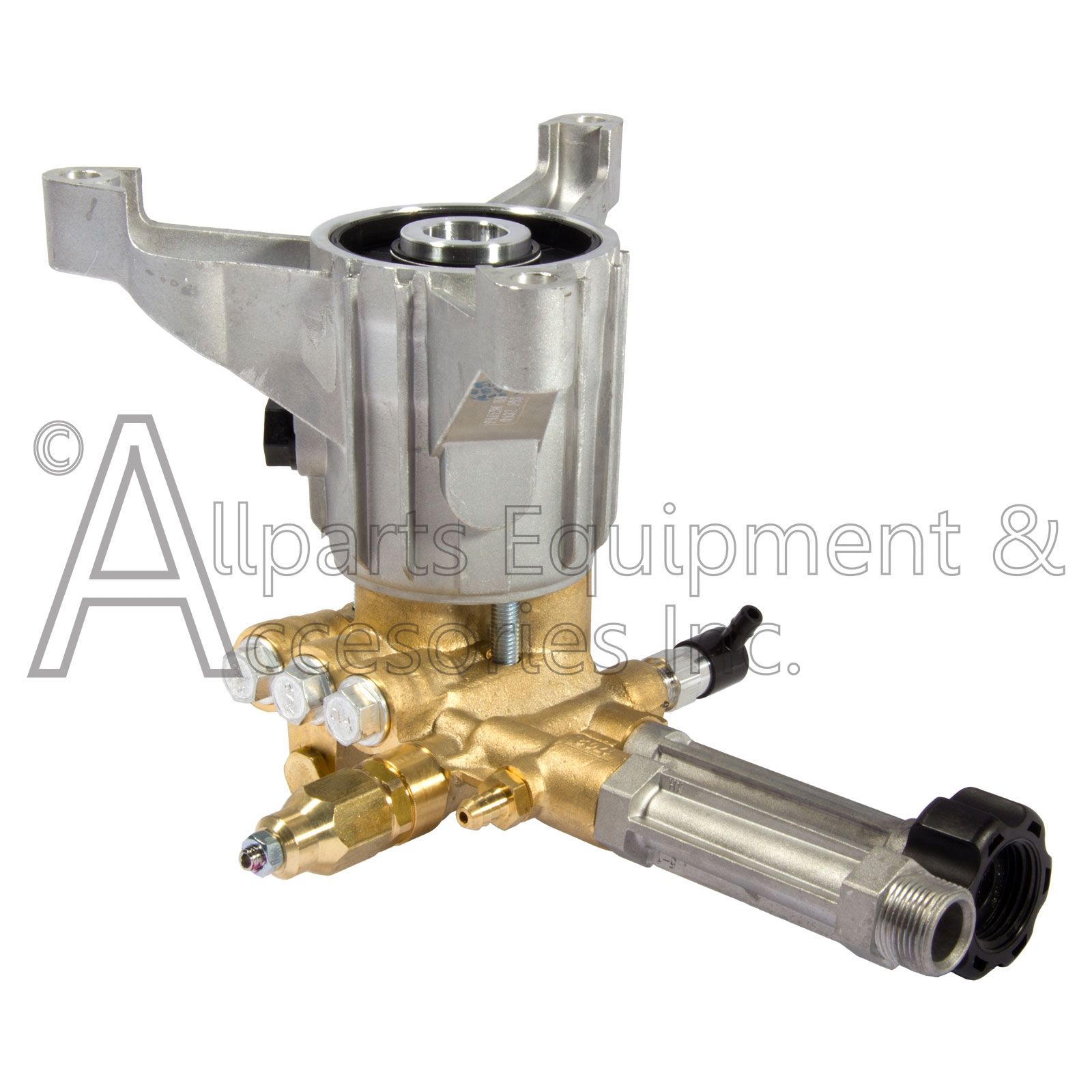

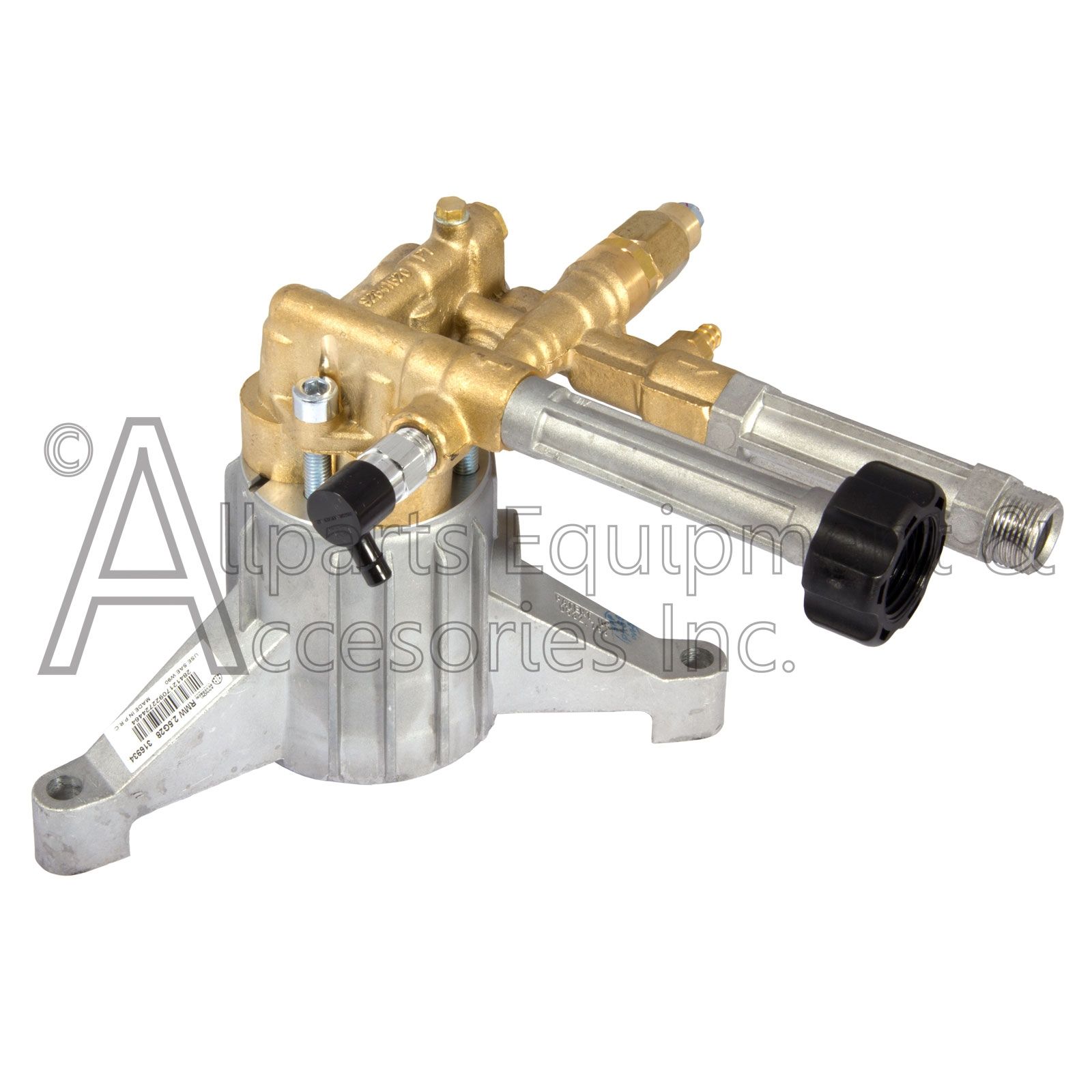

RMW2.5G28-EZ HIGH PRESSURE PUMP W/ THERMAL RELIEF VALVE

The RMW2.5G28-EZ AR (Annovi Reverberi) pump is an oil filled economy axial radial pump used in various pressure washers.

The RMW2.5G28-EZ plunger pump is rated at up to 2.5 GPM at 2800 PSI. Direct drive system provides connection to most 7/8 in. shaft 4.3 HP and above engines and spins at 3400 RPM.

The hollow shafted pump includes vertical gas engine flange, a built-in pressure control valve and chemical injection system. Comes with a standard 22mm-14 twist connect outlet, and EZ start valves.

Max GPM = 2.5
Max L/Min = 9.5
Max PSI = 2800
Max Bar = 193
Power EBHP = 4.3
Bore DIA MM = 12
Stroke MM = 9.7
Crankshaft ID Stamp = 1
Weight LBS. = 7.7

THE OUTLET TUBES ON THIS PUMP FACE TOWARDS THE SPARK PLUG.
