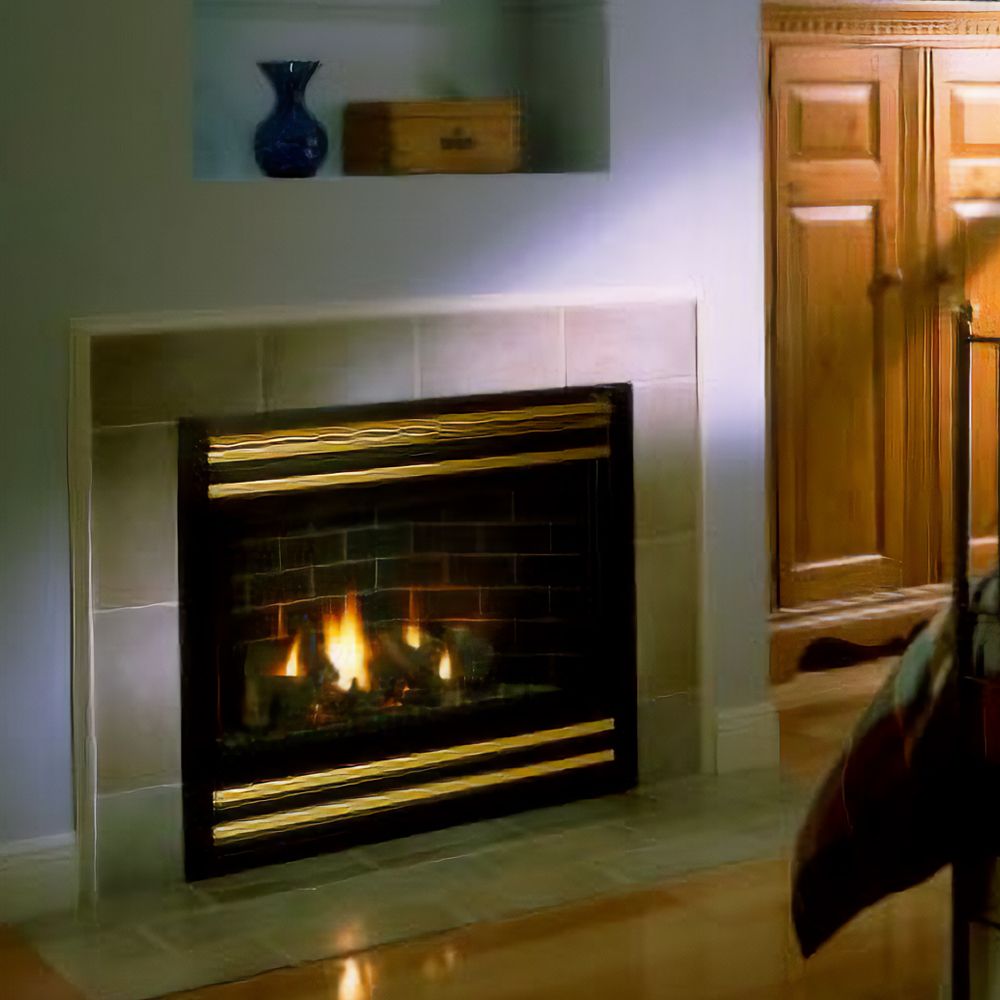

GNBC36LE Novus 36 in. Liquid Propane Gas Fireplace with Electronic Spark Ignition, 25000 BTU

Reference Item Only
Part Number
GNBC36LE
Part Number: GNBC36LE
Compatible Brands: Heatilator

The GNBC36LE is a liquid propane gas fireplace that comes equipped with a electronic spark ignition. This is a 36 in. Novus series fireplace from Heatilator that is rated at 25,000 BTUs an hour.

A B-vent configuration is used on the GNBC36LE, which means this unit uses B-vents to send combustion exhaust outside. This unit draws air from inside of the room it is installed in.


The Novus GNBC36LE vents any exhaust created from combustion using a B-vent style set-up. Fresh air required for combustion is pulled from indoors.

It is highly recommended by the manufacturer to use an outside air kit with this unit, which allows the GNBC36LE to draw outside air for combustion. This kit is not included with the GNBC36LE.


Features of the GNBC36LE Novus Fireplace

  • Utilizes a B-vent setup to pipe fireplace exhaust outdoors.
  • Draws combustion air from inside.
  • Supports an optional blower fan for enhanced heat circulation.
  • Controllable with an optional remote control smart transmitter.

Specifications

Input Rating: 25,000 BTU/hr.

Inlet Gas Pressure Range: 11 in. W.C - 14 in. W.C

Manifold Pressure: 10 in. W.C

Dimensions:

Width: 36 in.

Height: 36 in.

Length: 19 1/8 in.
