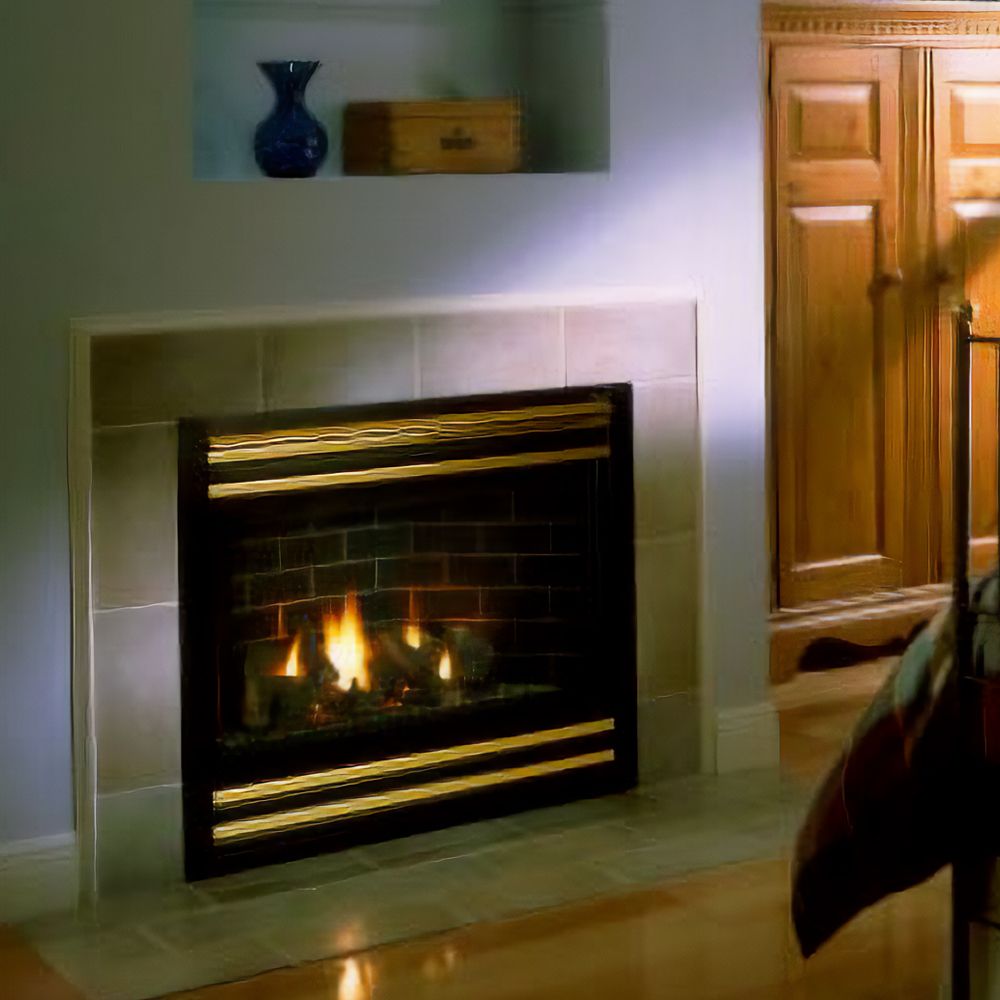

GNBC36L Novus 36 in. Liquid Propane Gas Fireplace with Push-Button Standing Pilot
Reference Item Only
Part Number
GNBC36L
The GNBC36L is a 36 in. Novus natural gas fireplace with a standing pilot assembly and a B-vent configuration.
This Novus series fireplace from Heatilator has a heat input rating of 25,000 BTU/hr. A push-button ignitor is included on the GNBC36L's natural gas pilot.
Novus fireplace model GNBC36L vents any exhaust created from combustion using a B-vent style set-up. Air required for combustion is pulled from indoors.
An AK14 outside air kit is available separate that allows the GNBC36L to draw outside air for combustion. This kit is recommended by the manufacturer.
Features of the GNBC36L Novus Fireplace
- Utilizes a B-vent setup to pipe fireplace exhaust outdoors.
- Supports an optional blower fan assembly for enhanced heat circulation.
- Uses a standing pilot that remains lit, allowing for quick ignition.
- Lights using a push-button pilot ignitor.
- Controllable with an optional remote control smart transmitter.
- Configured for liquid propane gas use only.
Specifications
Input Rating: 25,000 BTU/hr.
Inlet Gas Pressure Range: 11 in. W.C - 14 in. W.C
Manifold Pressure: 10 in. W.C
Dimensions:
Width: 36 in.
Height: 36 in.
Length: 19 1/8 in.
