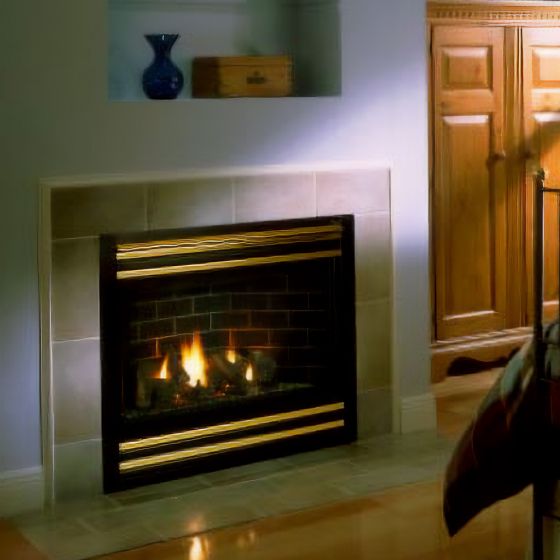

GNBC36E Novus 36 in. Natural Gas Fireplace with Electronic Spark Ignition, 27000 BTU
The GNBC36E is a natural gas fireplace that comes equipped with a electronic spark ignition. This is a 36 in. Novus series fireplace from Heatilator rated at 27,000 BTUs an hour.
A B-vent configuration is used on the GNBC36E, which means this unit uses B-vents to send combustion exhaust outside. This unit draws air from inside of the room it is installed in.
The Novus GNBC36E vents any exhaust created from combustion using a B-vent style set-up. Fresh air required for combustion is pulled from indoors.
It is highly recommended by the manufacturer to use an outside air kit with this unit, which allows the GNBC36E to draw outside air for combustion. This kit is not included with the GNBC36E.
Features of the GNBC36E Novus Fireplace
- Utilizes a B-vent setup to pipe fireplace exhaust outdoors.
- Draws combustion air from inside.
- Supports an optional blower fan for enhanced heat circulation.
- Controllable with an optional remote control smart transmitter.
Specifications
Input Rating: 27,000 BTU/hr.
Inlet Gas Pressure Range: 4.5 in. W.C - 7.0 in. W.C
Manifold Pressure: 3.5 in. W.C
Dimensions:
Width: 36 in.
Height: 36 in.
Length: 19 1/8 in.
