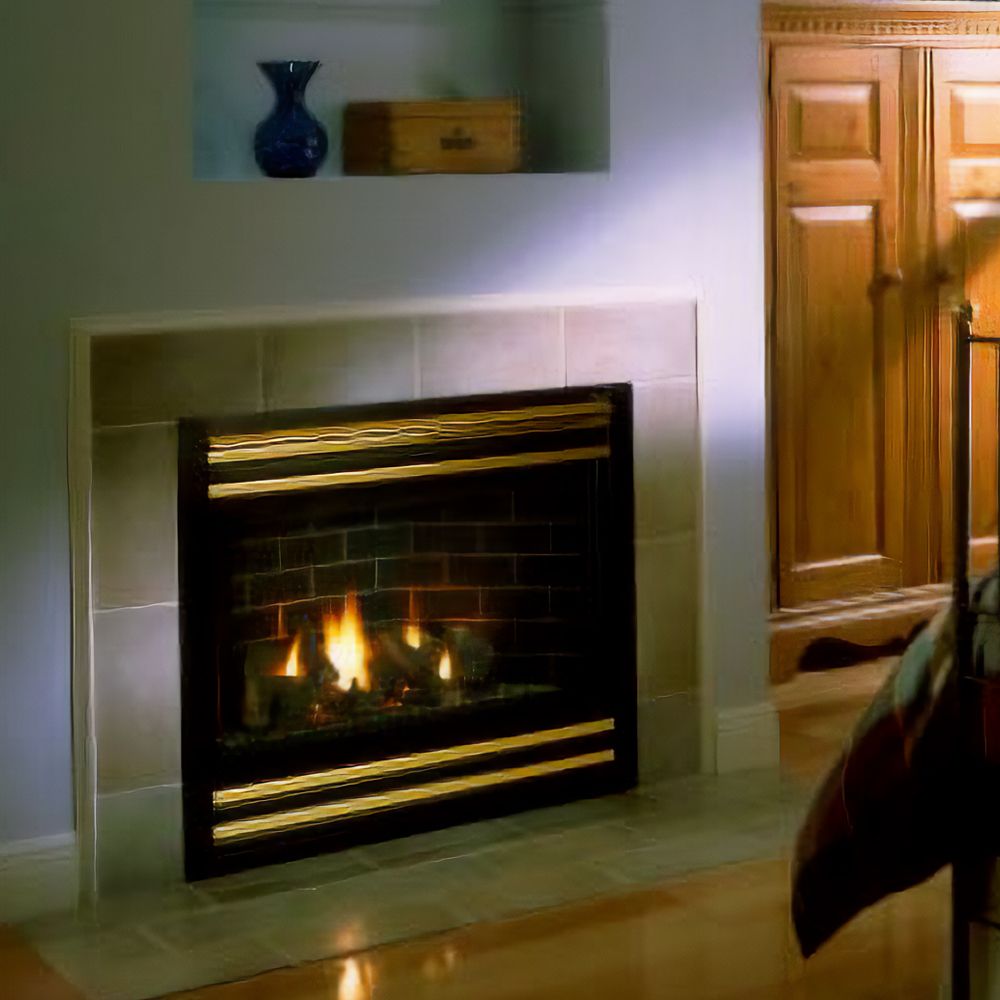

GNBC33 Novus 33 in. Natural Gas Fireplace with Push-Button Standing Pilot
Reference Item Only
Part Number
GNBC33
The GNBC33 is a 33 in. Novus natural gas fireplace with a standing pilot assembly and a B-vent configuration.
This 33 in. Novus series fireplace from Heatilator has a heat input rating of 25,000 BTU/hr. A push-button ignitor is included on the GNBC33's natural gas pilot.
GNBC33 vents any exhaust created from combustion using a B-vent style set-up. Air required for combustion is pulled from indoors.
An AK14 outside air kit is available separate that allows the GNBC33 to draw outside air for combustion. This kit is recommended by the manufacturer.
Features of the GNBC33 Novus Fireplace
- Utilizes a B-vent setup to pipe fireplace exhaust outdoors.
- Supports an optional blower fan assembly for enhanced heat circulation.
- Uses a standing pilot that remains lit, allowing for quick ignition.
- Lights using a push-button pilot ignitor.
- Controllable with an optional remote control smart transmitter.
Specifications
Input Rating: 25,000 BTU/hr.
Inlet Gas Pressure Range: 4.5 in. W.C - 7.0 in. W.C
Manifold Pressure: 3.5 in. W.C
Dimensions:
Width: 33 in.
Height: 36 in.
Length: 19 1/8 in.
