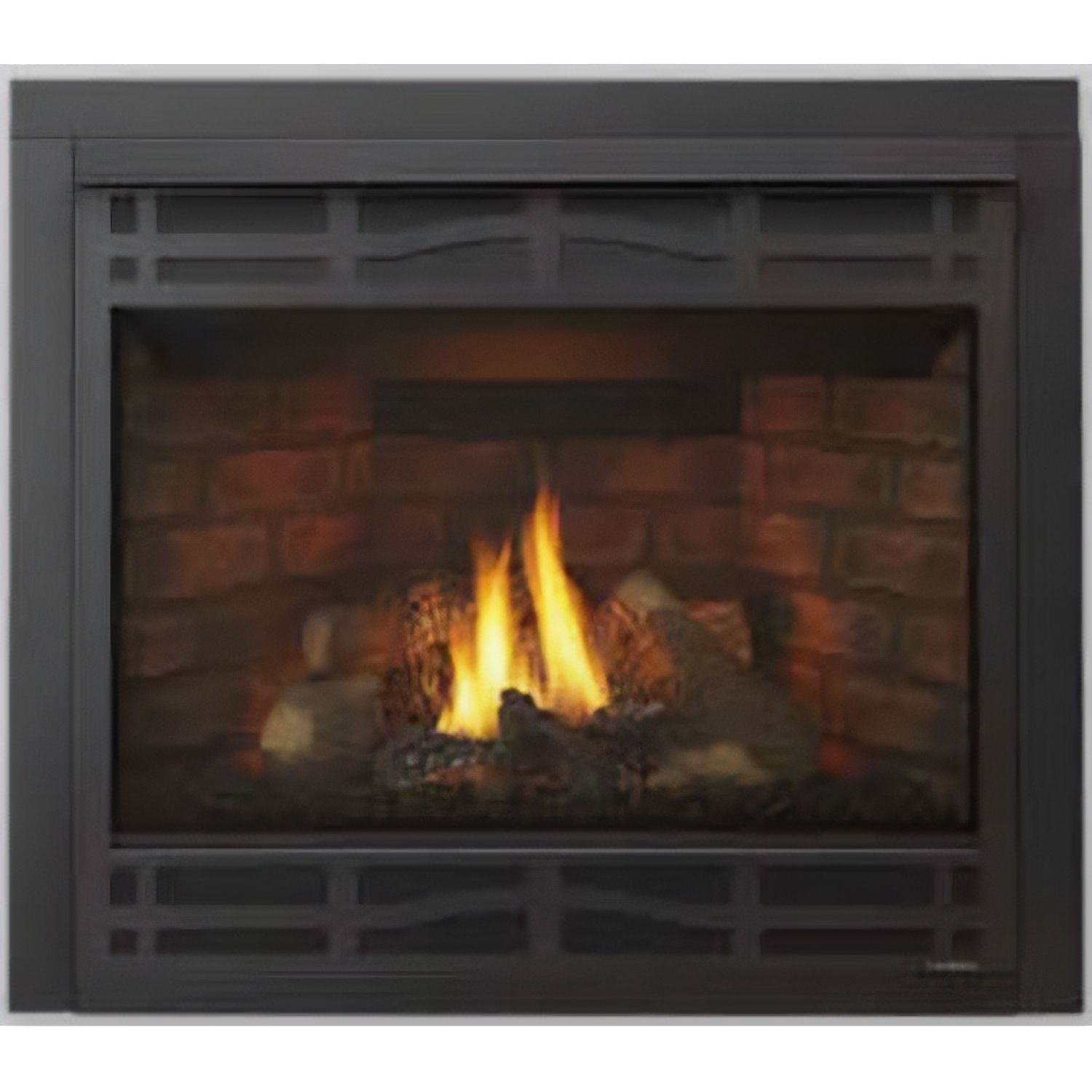

GNBC30 Novus Series 30 in. B-Vent Natural Gas Fireplace

Reference Item Only
Part Number
GNBC30
Part Number: GNBC30
Compatible Brands: Heatilator

The GNBC30 is a Novus B-vent fireplace that is equip with a standing pilot.

This 30 in. Novus fireplace has a heat input rating of 25,000 BTU/hr. A push-button ignitor is included on the GNBC30's natural gas pilot.


GNBC30 uses a B-vent setup. This means that the fireplace vents exhaust outside through the B-vents and pull air for combustion from inside.

An AK14 outside air kit is available separate that allows the GNBC30 to draw outside air for combustion. This kit is recommended by the manufacturer.


Features of the GNBC30 Novus Fireplace

  • Utilizes a B-vent setup to pipe fireplace exhaust outdoors.
  • Supports an optional blower fan assembly for enhanced heat circulation.
  • Uses a standing pilot that remains lit, allowing for quick ignition.
  • Lights using a push-button pilot ignitor.
  • Controllable with an optional remote control smart transmitter.

Specifications

Input Rating: 25,000 BTU/hr.

Inlet Gas Pressure Range: 4.5 in. W.C - 7.0 in. W.C

Manifold Pressure: 3.5 in. W.C

Dimensions:

Width: 30 in.

Height: 36 in.

Length: 19 1/8 in.
