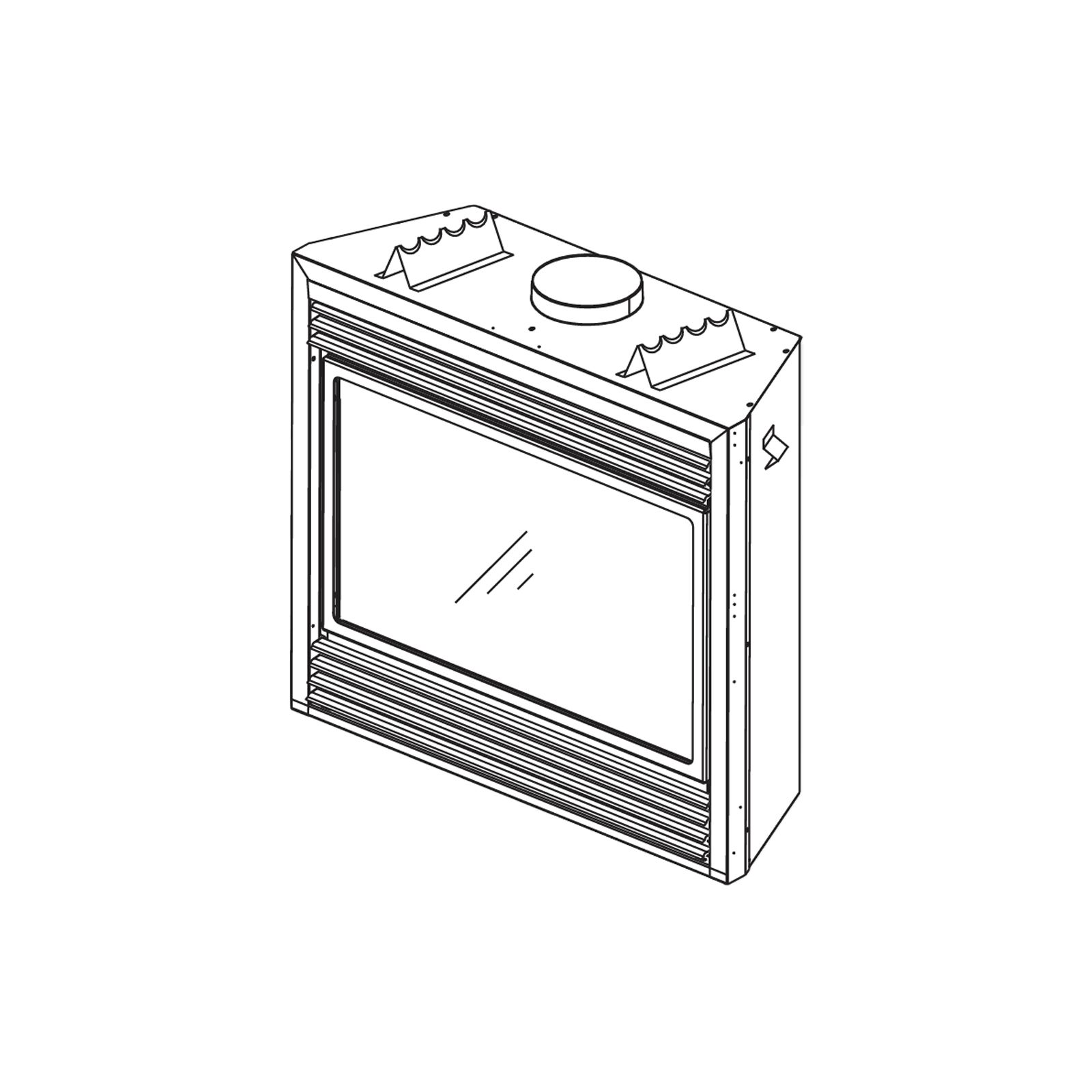

GD36PTR Direct Vent Napoleon Fireplace for Use with Liquid Propane Gas

The GD36PTR is a direct vent liquid propane gas fireplace from Napoleon. This fireplace has a maximum output rating of 22,880 BTU/hr. and features a Venturi valve for improved HVAC airflow control to help regulate airflow.

A blower assembly can optionally be installed onto the GD36PTR for improved heat distribution. A 60hz power outlet is required for operation if the blower is installed.

Specifications of the GD36PTR Fireplace

Max. Input Rating: 26,000 BTU/hr.

Max. Output Rating: 22,880 BTU/hr.

Altitude Range: 0-4,500 ft.

Min. Inlet Gas Pressure: 11 in. w.c

Max. Inlet Gas Pressure: 13 in. w.c

Manifold Pressure: 10 in. w.c

Dimensions:

• Height: 33 in.

• Width: 14 1/4 in.

• Length: 37 1/4 in.
