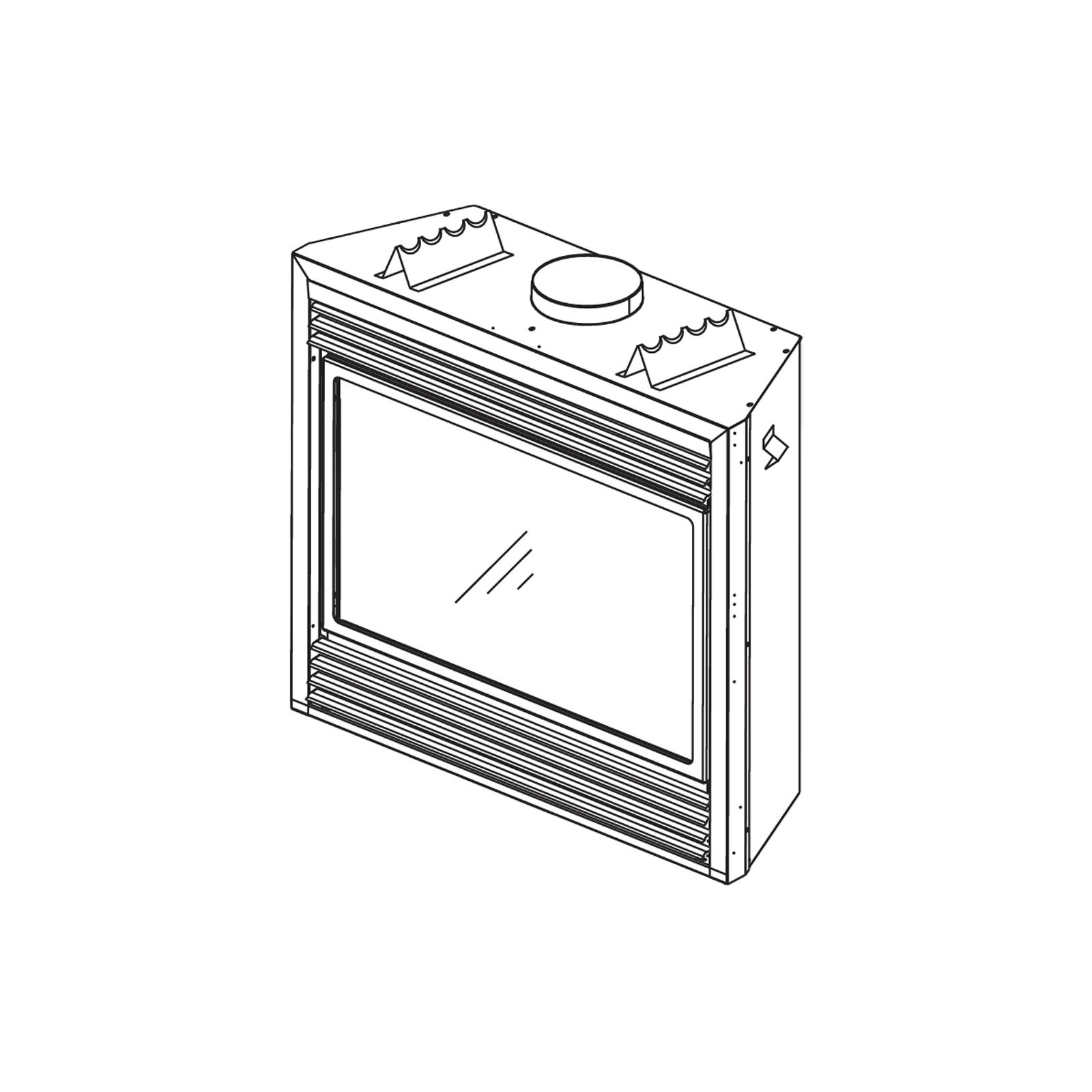

GD36NTR Napoleon Direct Vent Natural Gas Fireplace

The GD36NTR is a direct vent natural gas fireplace from Napoleon. This fireplace has a maximum output rating of 22,360 BTU/hr. and features a Venturi valve for improved HVAC airflow control to help regulate airflow.

An optional blower assembly can also be installed onto the GD36NTR to increase the heat distribution. A 60hz power outlet is required for operation if a blower is installed.

Specifications of the GD36NTR Fireplace

Max. Input Rating: 26,000 BTU/hr.

Max. Output Rating: 22,360 BTU/hr.

Altitude Range: 0-4,500 ft.

Min. Inlet Gas Pressure: 4.5 in. w.c

Max. Inlet Gas Pressure:: 7 in. w.c

Manifold Pressure: 3.5 in. w.c

Dimensions:

• Height: 33 in.

• Width: 14 1/4 in.

• Length: 37 1/4 in.
