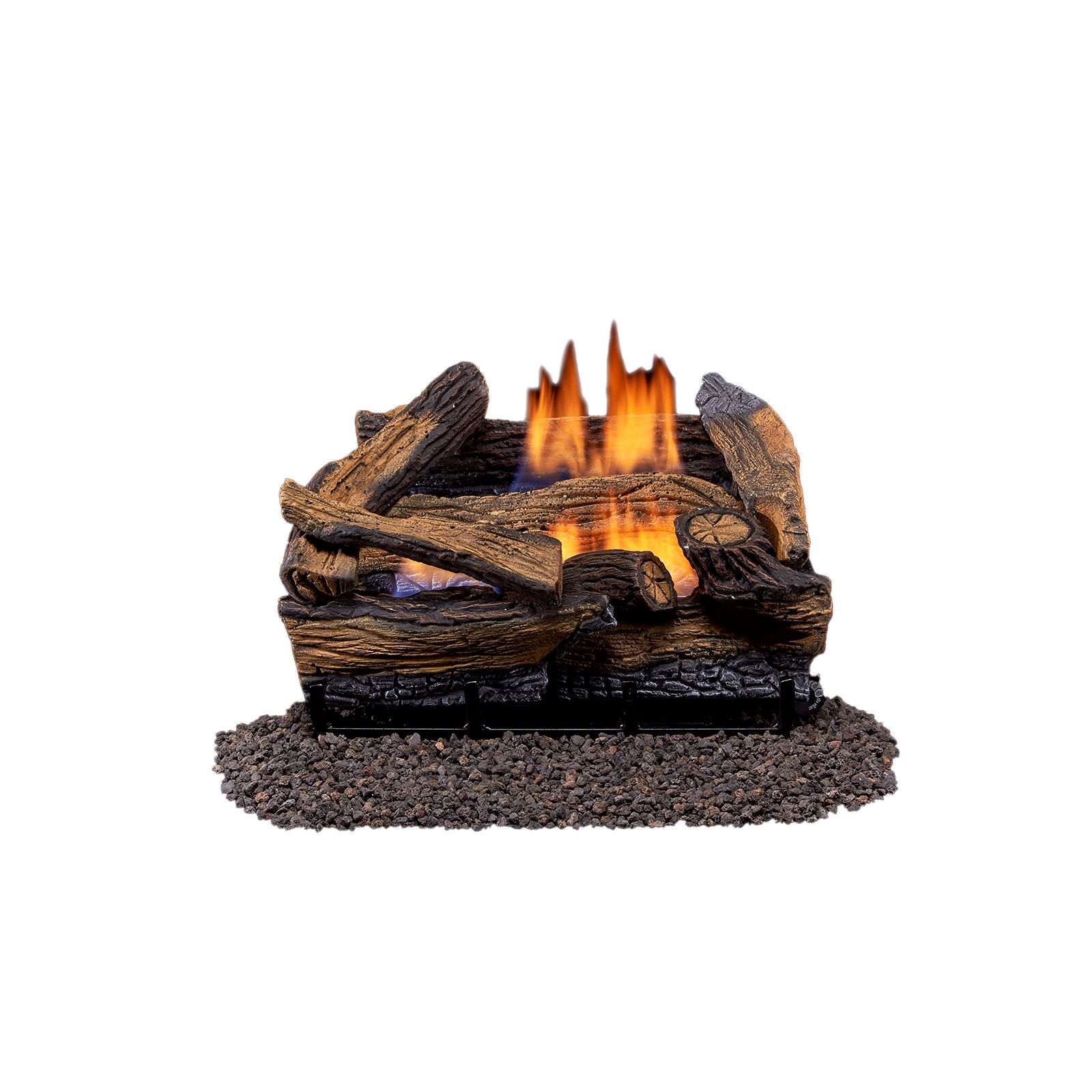

FDLR18-1 Duluth Forge Dual Fuel Vent-Free Gas Log Chassis

FDLR18-1 is a vent-free gas log chassis from Duluth Forge. This log heater burns with a yellow-colored flame and features an electronic piezo ignition. This dual fuel gas log chassis is configurable for either natural gas and liquid propane.

The FDLR18-1 comes from the manufacturer configured for liquid propane. Converting the FDLR18-1 from liquid propane to natural gas should only be done by a qualified installer.

This is a vent-free heater that requires enough air flow and clearance space to safely operate. The FDLR18-1 has an ODS safety shutoff pilot, which will automatically turn off the log chassis heater if there isn't enough oxygen for it to safely operate. For specific details on the air flow and clearance requirements, please refer to the FDLR18-1's user's manual.

A built-in thermostat heat control manages the FDLR18-1's heat output and maintains a set temperature by cycling the burner on and off. The FDLR18-1 uses a piezo ignition system which requires a AAA battery to operate. This gas log chassis heater is also remote-ready.

Features of the FDLR18-1 Duluth Forge Log Chassis

• Heat Control Thermostat with Auto-Cycling Burner
• Comes with remote transmitter for temperature adjustment
• Heater burns with a two rows of yellow flames
• Electronic Piezo ignitor lights with push-button start

Specifications of the FDLR18-1 Duluth Forge Log Chassis

• Gas Type: Dual-Fuel (Natural Gas or Liquid Propane)
• Ignition Type: Electronic Piezo Ignitor
• Maximum Heating Input: 30,000 BTU/Hr.

• Manifold Pressure: 4 in. W.C (NG) / 14 in. W.C (LPG)
• Minimum Inlet Gas Pressure: 5 in. (NG) / 11 in. (LPG)
• Maximum Inlet Gas Pressure: 9.5 in. (NG) / 11 in. (LPG)

Required Minimum Firebox Size

• Height: 20 in.
• Width: 29 in.
• Depth: 13 in.
