F2660 Ecoflow Wireless Wall Remote Control EF-WWRCK

F2660 Ecoflow Wireless Wall Remote Control EF-WWRCK transmitter was used on the Superior line of direct vent fireplaces and is designed to work with the VCS-ECOMOD fireplace control module.

This F2660 Wall Mounted wireless transmitter has the following features enabled On /Of and Hi/Lo

The transmitter operates on one of 65,536 security codes that are programmed into the transmitter at the factory, Ecoflow transmitter operates on radio frequencies with non-directional signals with an operating range is approximately 20-feet unobstructed.

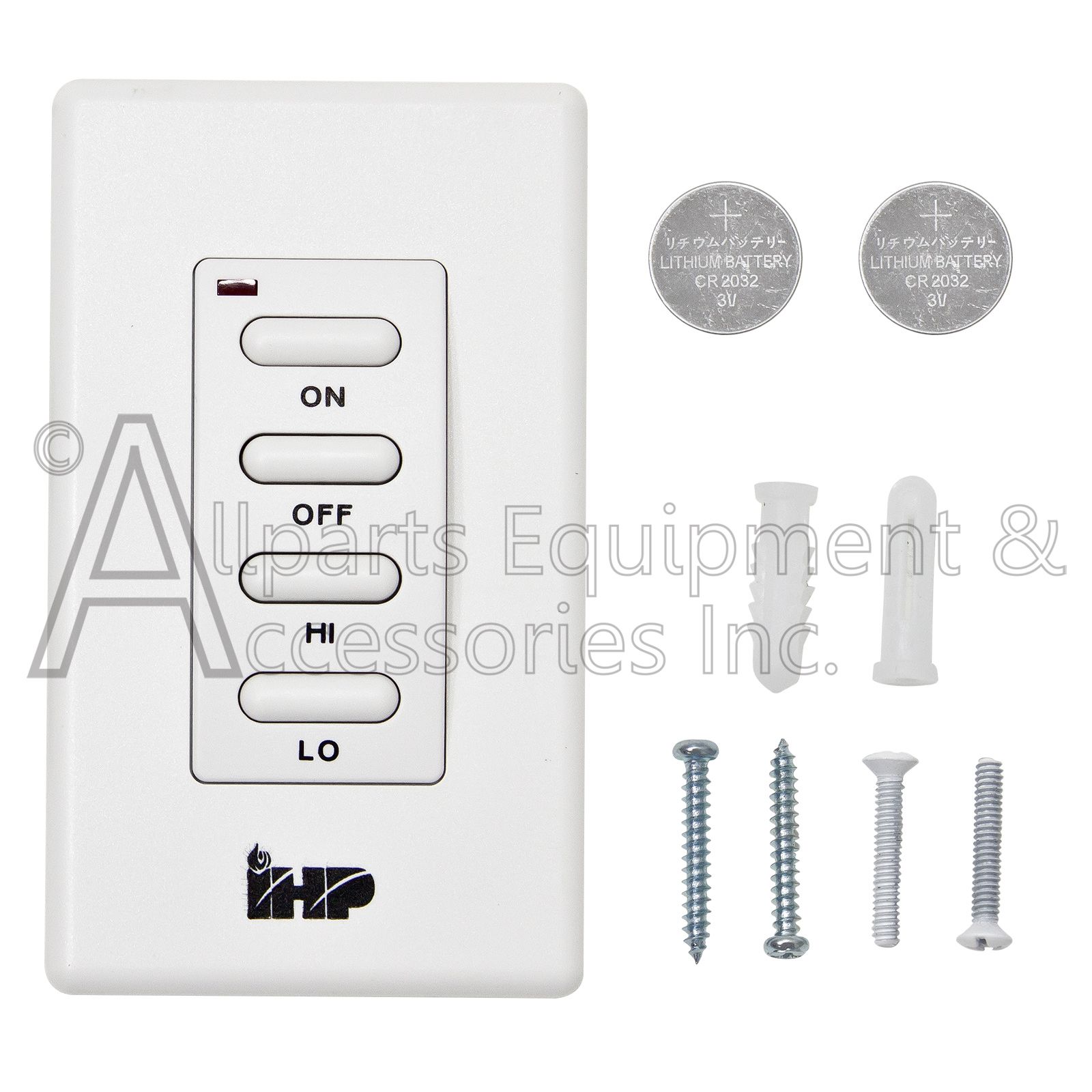

The F2660 transmitter has ON/OFF and HI/LO, functions that are activated by pressing the buttons on the face of the transmitter.

When a button on the transmitter is pressed, a signal light on the transmitter illuminates briefly to verify that a signal has been sent.

Upon initial use, there may be a delay of three seconds before the remote receiver will respond to the transmitter.

This is part of the system’s design.

Service Note:

If the signal light does not illuminate, check the position of the transmitter’s battery.
