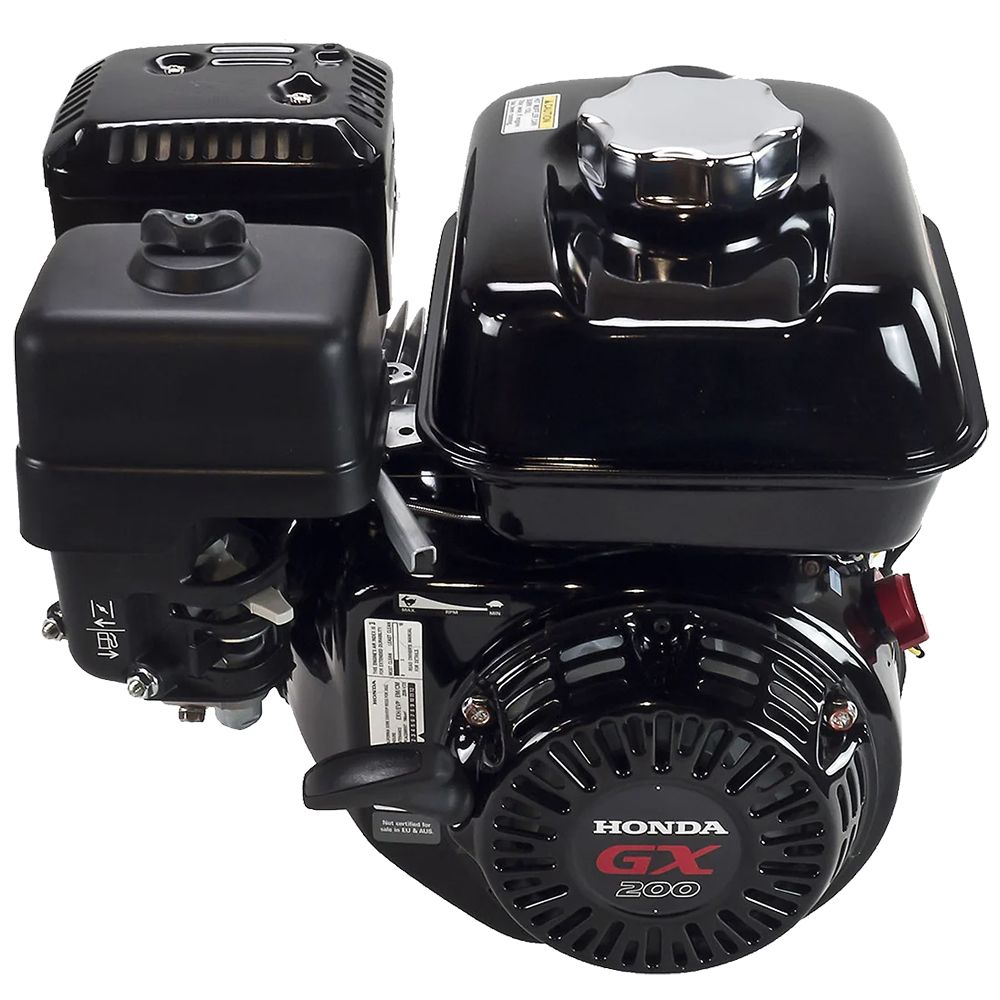

100464 Honda GX200 196cc 50-State Engine, Black

The 100464 is a Honda GX200 series 50-State engine with a black recoil housing and a black fuel tank. It also features a pull-cord recoil starter with an ergonomic handle for easy starting.

Honda’s 100464 engine is designed for heavy-duty use on various small engine industrial power equipment, such as pressure washers, generators, and more.

This engine utilizes an OHV design for efficient combustion. It has several safety shutoff features, including a low oil safety shutoff, to prevent accidental damage to the engine.

This 100464 engine is also under the following Honda model numbers. GX200D-QAPW & GX200T2-QAPW.

Features of the 100464 Honda Engine

• Uses an ergonomically designed pull-cord recoil starter, with an optional E-start.
• Features a stable design with a ball-bearing-supported crankshaft for vibration reduction.
• Built from durable components that hold up to demanding industrial applications.
• Features a high power-to-displacement ratio.
• Meets 50-State environmental regulation standards.

Specifications

Engine Displacement: 196cc

Net Power Rating: 5.8 HP

Max. Net Torque: 2.78 lbs. per ft.

Bore: 2.67 in.

Stroke: 2.12 in.

Compression Ratio: 8.5:1

Fuel Tank Capacity: 3.1 Liters

Engine Oil Capacity: 20 1/4 fl. oz.

Dimensions:

Length: 12 5/8 in.

Height: 13 5/8 in.

Width: 14 3/4 in.

Dry Weight: 35 1/2 lbs.
