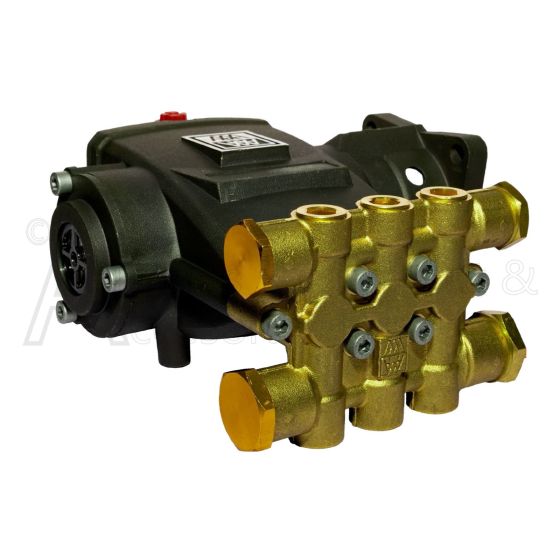

530028 C32X AAA Hollow Shaft Pump 12x8.2
In stock
Part Number
530028
$389.90
The 530028 AAA Pump is a C32X Series with a 3/4 Inch hollow shaft rated up to 3700 PSI at 2.5 GPM. Triplex Plunger Pump Kit from FNA Group - Simpson Cleaning.
This easy-to-install Triplex Plunger Pump kit replacement from AAA is horizontally mounted with a patented design that provides higher pressure at the spray nozzle.
Features Of The 530028:
- Equipped with an oil sight glass and advanced oil seal technology.
- Gas engine flange and hollow shaft that fits most horizontal shaft engines.
- Thermal relief protection valve to prevent pump overheating.
- Fully anodized aluminum crankcase that’s corrosion-resistant and sealed to prevent contamination or lube failure.
Dual oversized radial ball bearings are installed for better wear, friction resistance, and precision ceramic-coated pistons for extended seal life.
Kit includes a Siphon tube with filter, mounting bolts, and a shaft key.
Specifications Of The 530028:
PSI: 3700 Max burst Pressure
GPM: 2.5 gallons per minute
Inlet Port: 3/4" GH
Discharge Port: Threaded male fitting
Inlet Pressure Range: 10-60 PSI
Thermal Relief Port: 1/4" NPT
Shaft Diameter: 3/4"
Flange Bolt Pattern: SAE J-609A
Key Way: 3/16"
Pump Oil Capacity: 8.0 fl oz.
Head: Brass
