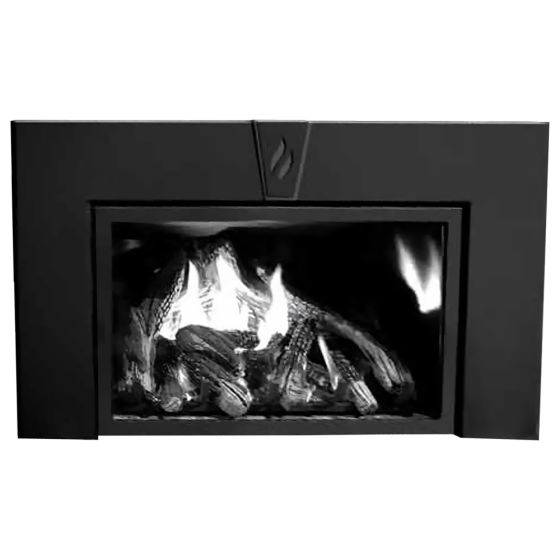

C-12529 Enviro E33I Gas Log Insert with Intermittent Pilot and Digital Control Module

The C-12529 is an Enviro direct-vent gas log insert that features an intermittent pilot assembly (IPI) and a DFC Proflame 2 module.

It can be configured for use with either natural gas or liquid propane gas, and insert can be toggled between IPI and CPI modes.

This fireplace insert is the DFC (Digital Fireplace Control) variation of the Enviro E33I gas log insert. It uses a Proflame 2 DFC module to manage the unit's ignition and flames.

Features of the Enviro C-12529

• The ignitor, when set to IPI, only lights when ignition is required.
• Can be configured to run on either natural gas or liquid propane gas.
• Comes standard with a Proflame 2 DFC module and remote transmitter.
• Uses a direct vent setup that pulls combustion air from outdoors.
• NFI certified.

Specifications

Natural Gas:

Max. Heat Input: 34,000 BTUs

Max. Manifold Pressure: 3.8 in. W.C

Min. Manifold Pressure: 1.2 in. W.C

Natural Gas Inlet Pressure Range: 5.5 in. W.C - 10.5 in. W.C

Liquid Propane Gas:

Max. Heat Input: 31,000 BTUs

Max. Manifold Pressure: 11.0 in. W.C

Min. Manifold Pressure: 2.7 in. W.C

Propane Gas Inlet Pressure Range: 11.0 in. W.C - 13.0 in. W.C
