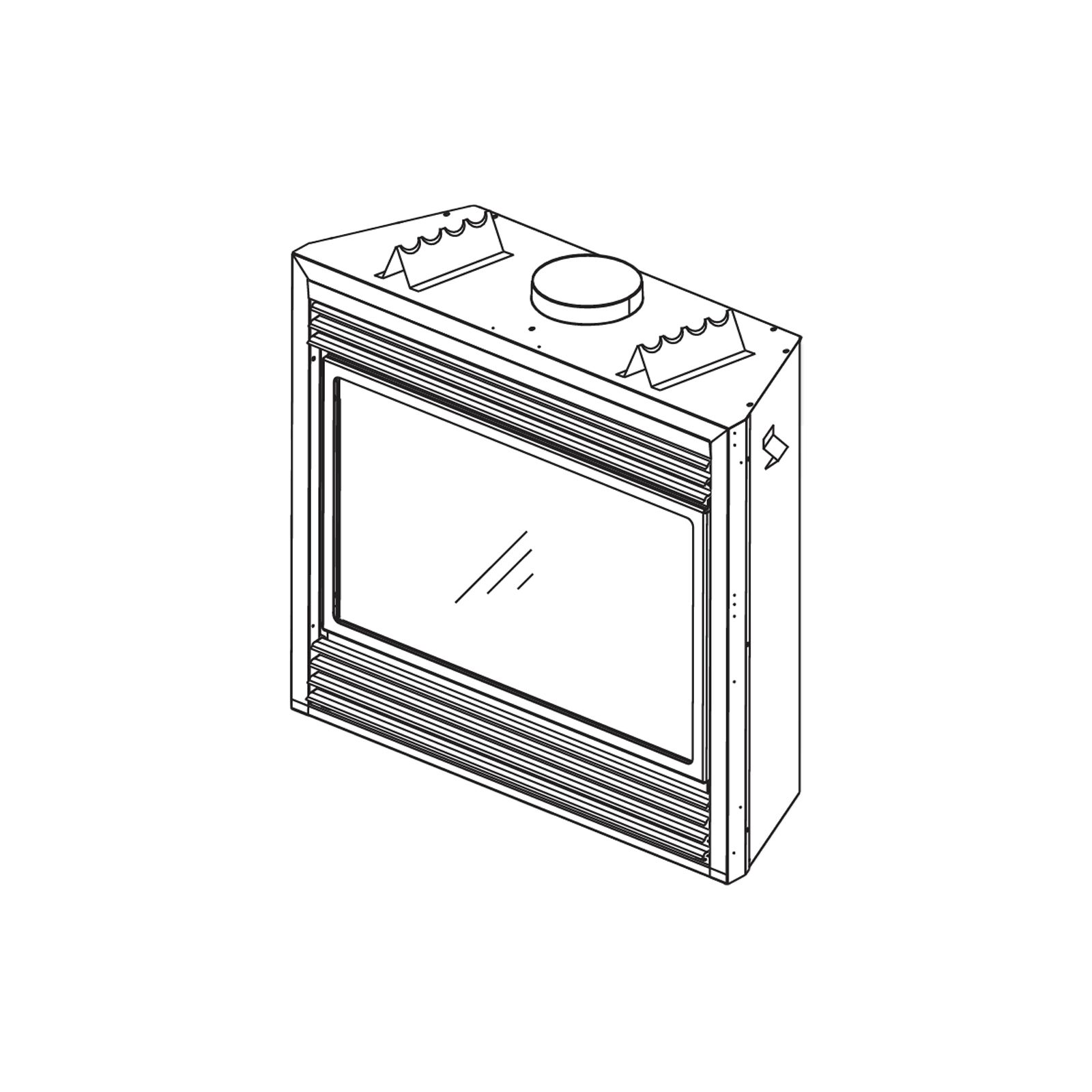

BGD36PTR Napoleon Direct Vent Fireplace for Liquid Propane Gas

The BGD36PTR is a direct vent natural gas fireplace from Napoleon. This fireplace has a maximum output rating of 22,880 BTU/hr. and features a Venturi valve for improved HVAC airflow control.

An optional blower assembly can also be installed onto the BGD36PTR for more efficient heat distribution. A 60hz power outlet is required for the blower to properly operate.

Specifications of the BGD36PTR Fireplace

Max. Input Rating: 26,000 BTU/hr.

Max. Output Rating: 22,880 BTU/hr.

Altitude Range: 0-4,500 ft.

Min. Inlet Gas Pressure: 11 in. w.c

Max. Inlet Gas Pressure:: 13 in. w.c

Manifold Pressure: 10 in. w.c

Dimensions:

• Height: 32 3/8 in.

• Width: 14 1/4 in.

• Length: 36 in.
