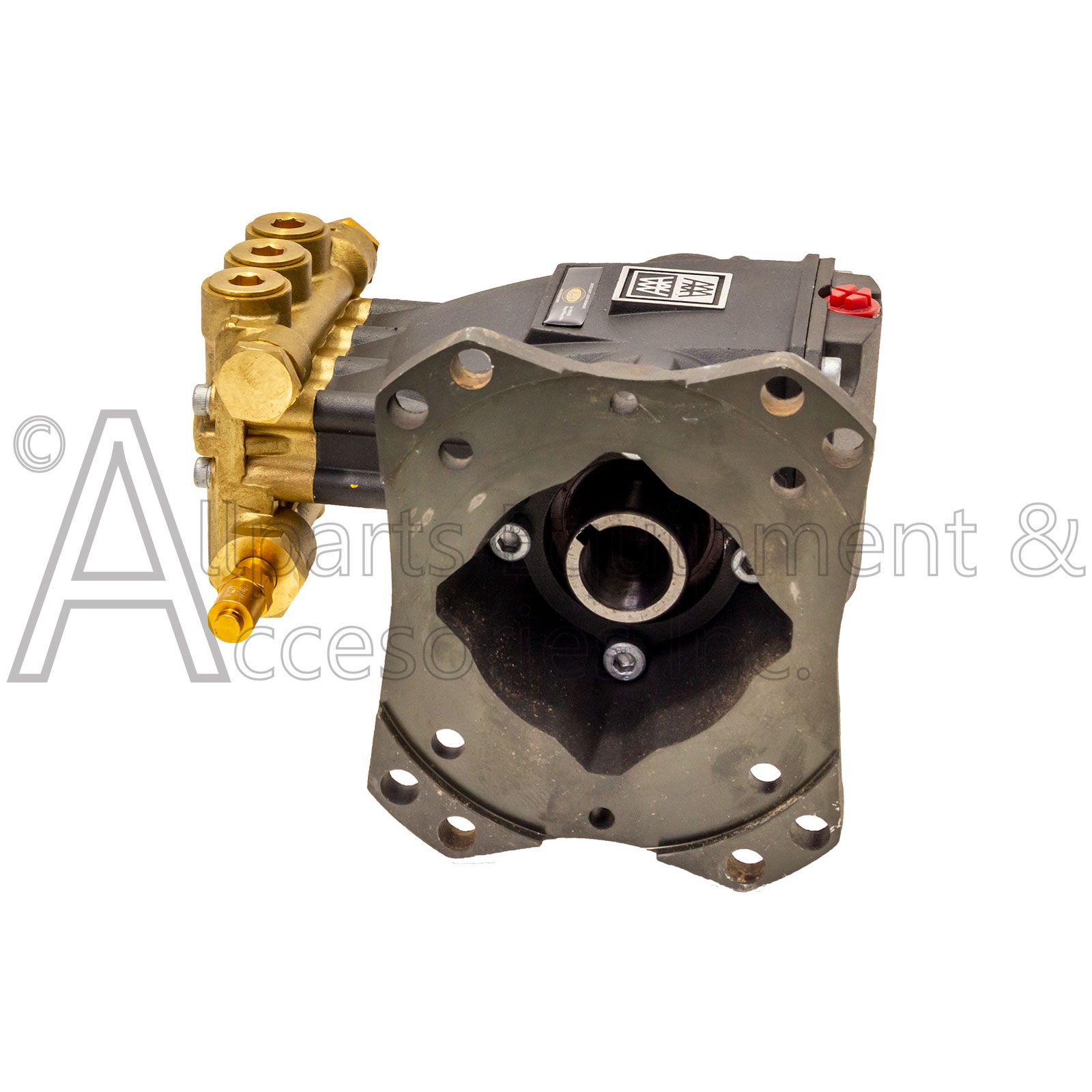

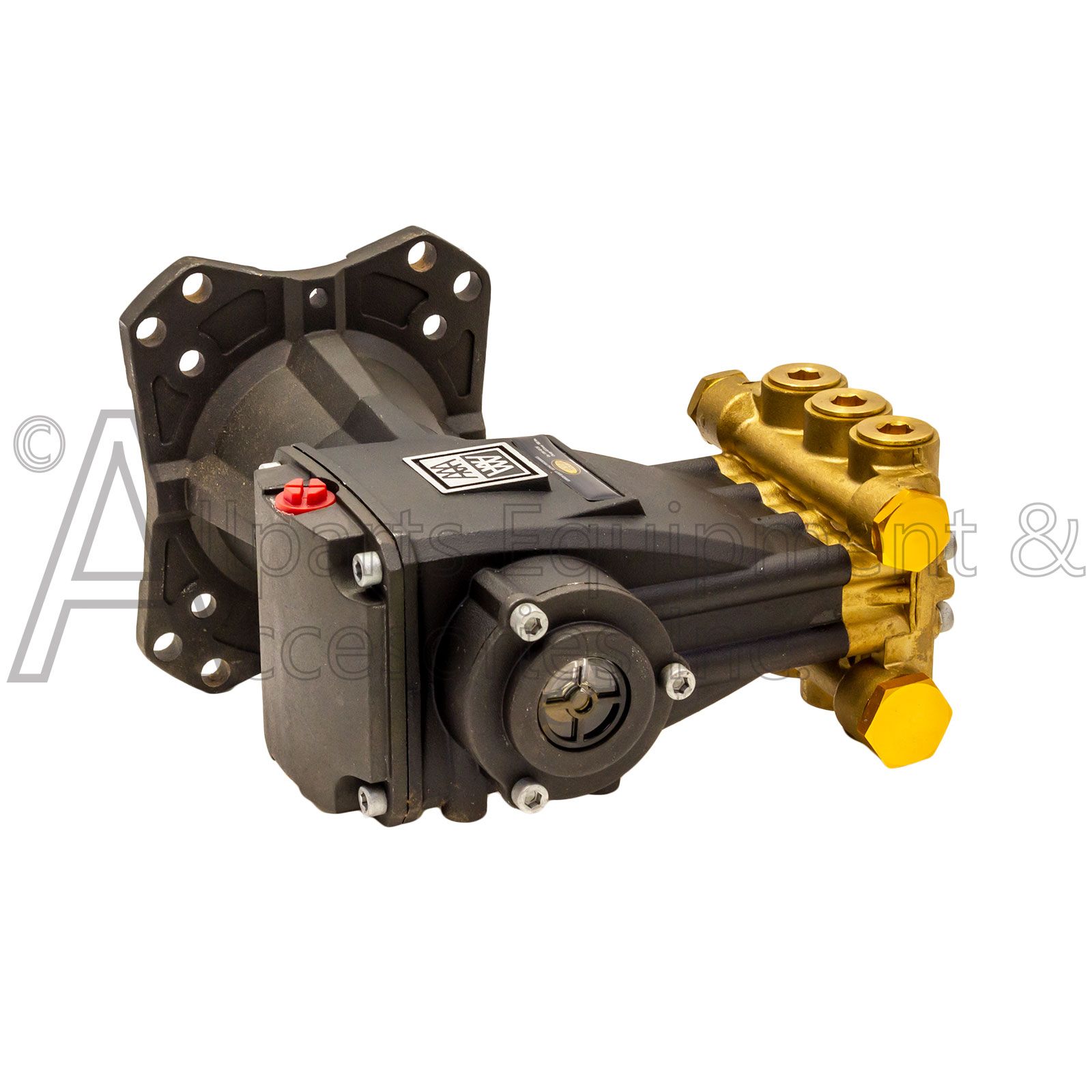

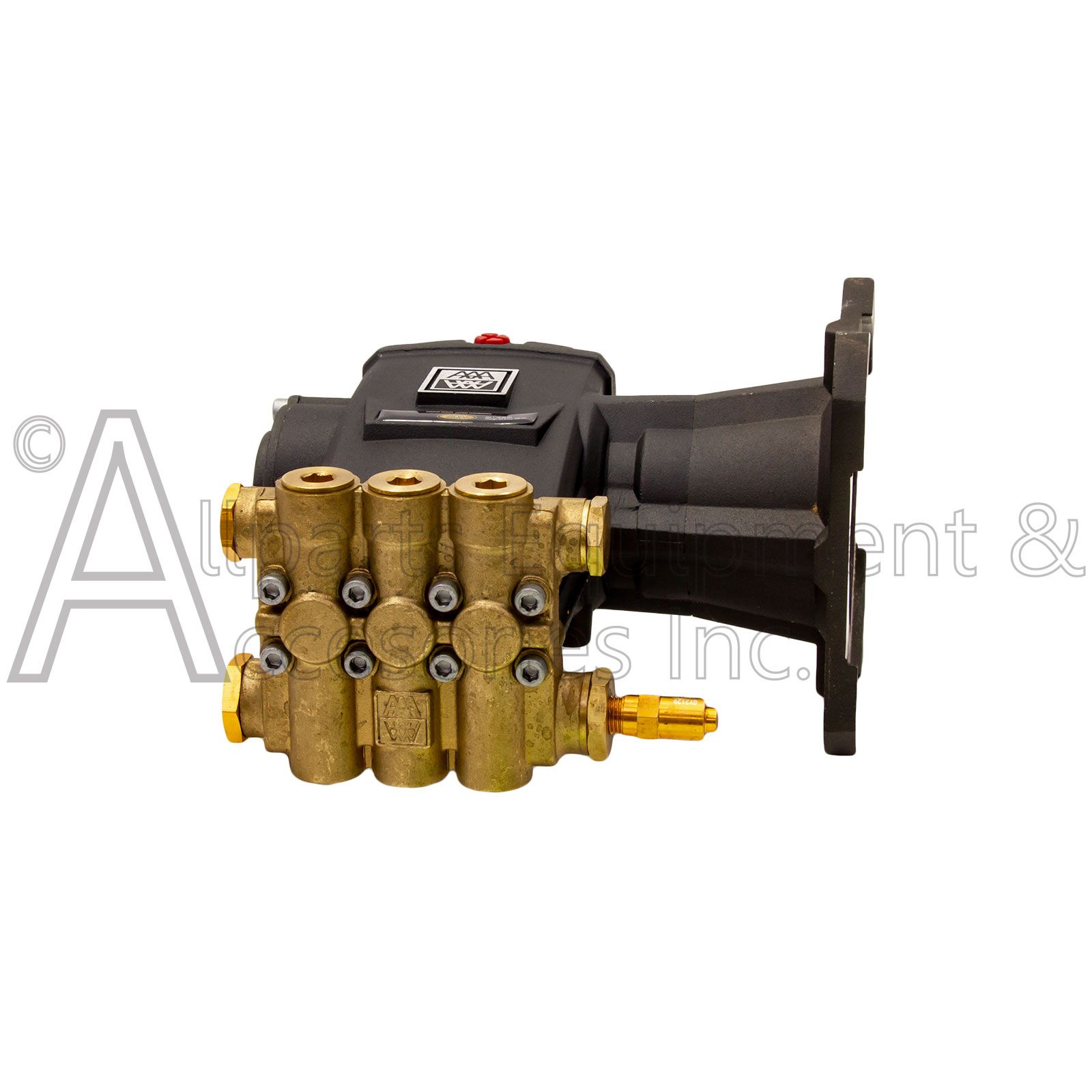

530027 PUMP C4X 13x10 HOLLOW
The 530027 AAA Pump is a C4X Series 13x10 Hollow shaft 4500 PSI at 4.0 GPM Triplex Plunger Pump Kit from FNA Group Simpson Cleaning.
This AAA easy-to-install pump replacement Triplex Plunger Pump kit has a patented Power-boost Max 4500 PSI technology that provides higher pressure at the spray nozzle.
Features:
4500 PSI+ @ 4.0 GPM Bare Pump
Sight glass and advanced oil seal technology.
Thermal relief protection to prevent pump overheating
Dual oversized radial ball bearings are installed for better wear, friction resistance, and precision ceramic-coated pistons for extended seal life.
Crankcase is manufactured from fully anodized die-cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure.
Multi Fit Gas engine flange and hollow shaft that fits most horizontal shaft engines.
Specifications:
PSI: 4500
GPM: 4.0
Inlet Port: 3/4" GH
Discharge Port: 3/8”
Inlet Pressure Range: 10-60 PSI
Thermal Relief Port: 1/4” NPT
Shaft Diameter: 1 Inch Hollow
Key Way: 1/4
Pump Oil Capacity: 12 fl oz.
Head: Brass
*Check your pressure washer’s inlet and outlet orientation to ensure compatibility
