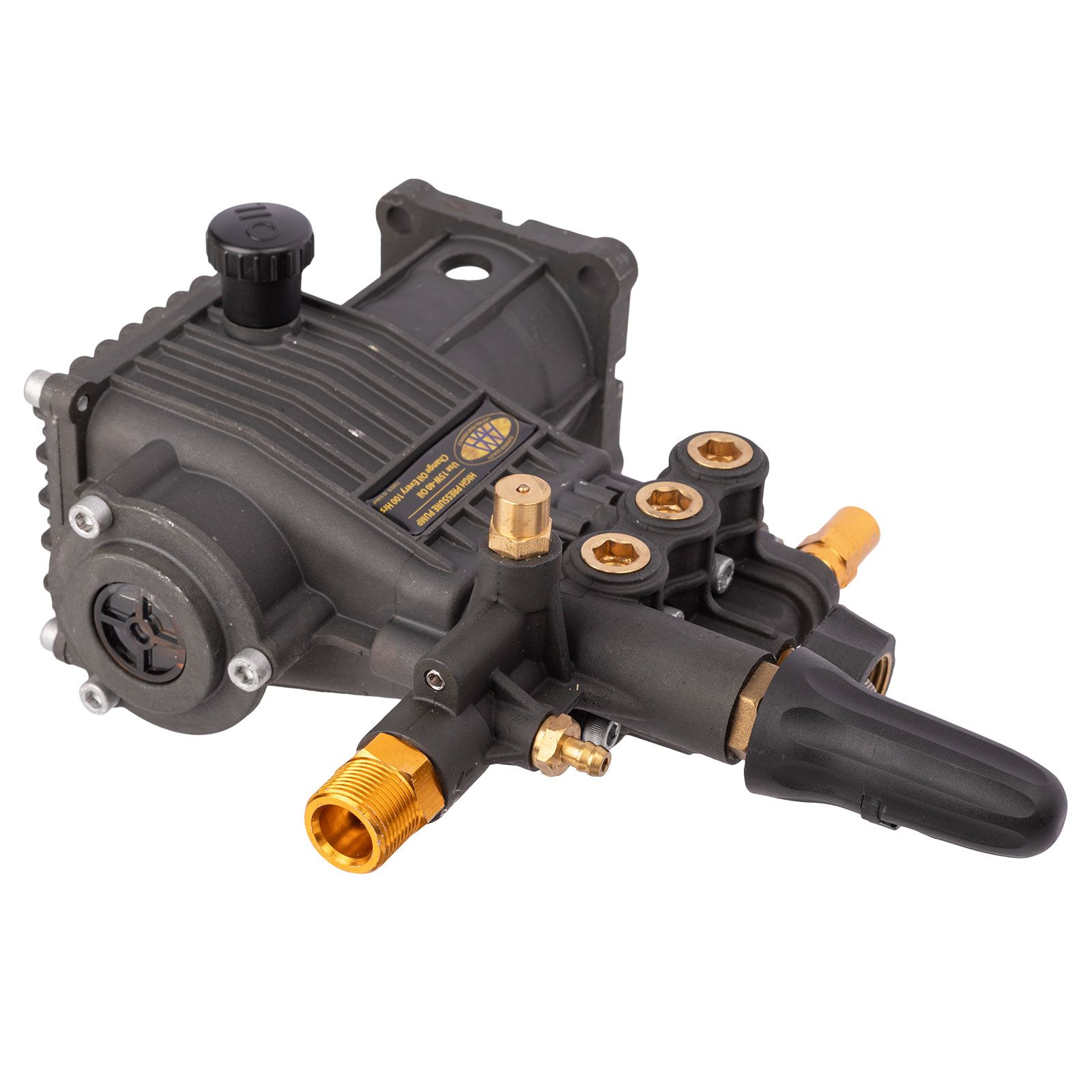

530015 Triplex Pressure Washer Plunger Pump with Horizontal Mount

The 530015 is an AAA triplex plunger pump for pressure washers. It has an aluminum head, a built-in thermal relief valve, a built-in adjustable unloader valve, and a chemical injector.

This pump uses a standard female garden hose input for maximum compatibility. It also features PowerBoost technology, which provides a greater pressure at the tip of the pressure washer's spray nozzle.

The maximum burst pressure rating for the 530015 is 3700 PSI at a flow rate of 2.5 GPM.

Features of the 530015 Triplex Pump

• Uses a fully adjustable unloader valve system.
• Uses a sight glass and advance oil seals to help monitor pump oil levels without a dipstick.
• Protected against overheating with a built-in thermal relief valve.
• Built with a corrosion-resistant aluminum pump head.
• Runs quieter than other pumps thanks to dual oversized ball bearings and ceramic plungers.
• Fits most horizontal shaft engines.

Specifications

Max. Pressure Rating: 3700 PSI

Flow Rate: 2.5 GPM

Inlet Port: 3/4 in. GH

Inlet Pressure Range: 10 - 60 PSI

Pump Oil Capacity: 8.0 fl. oz.
