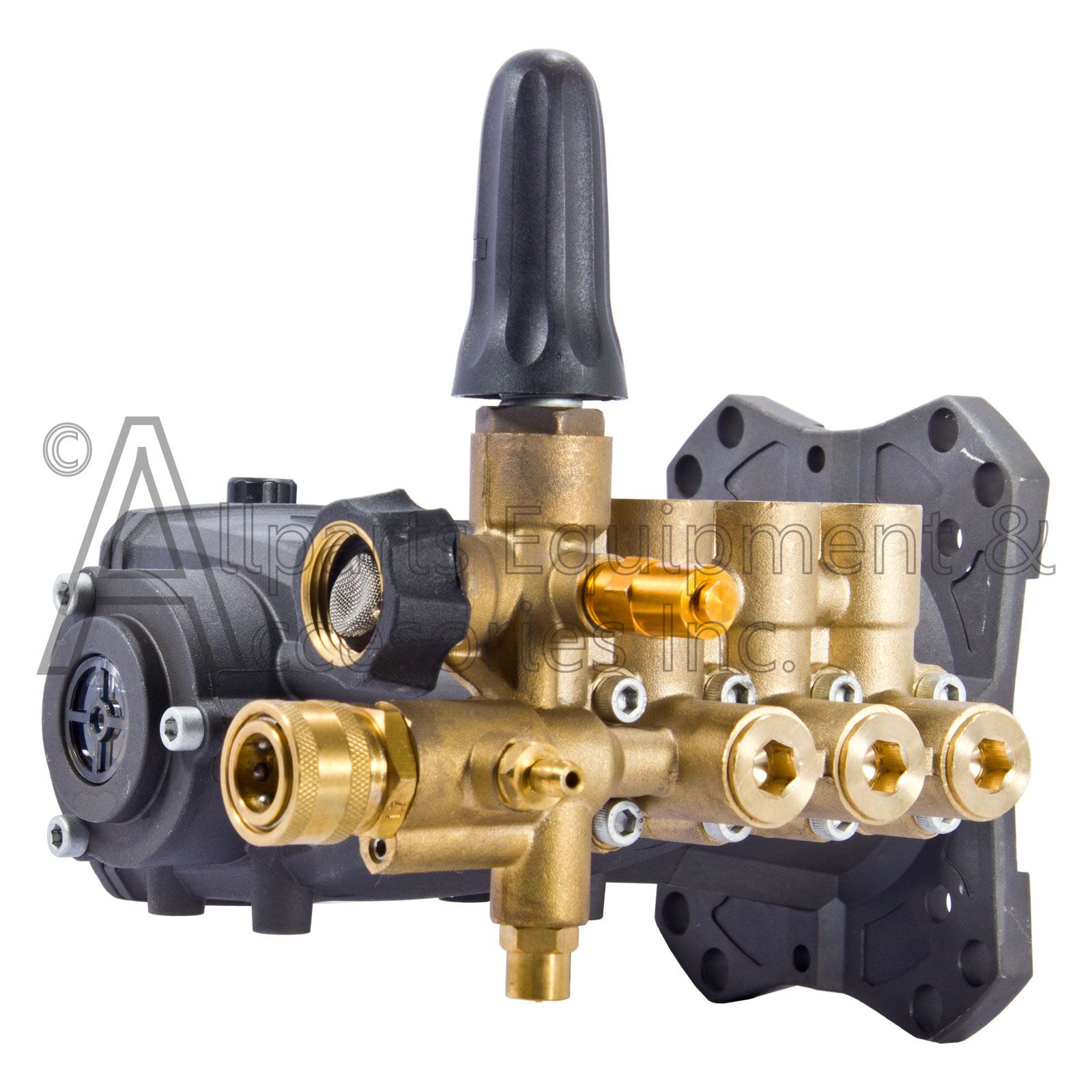

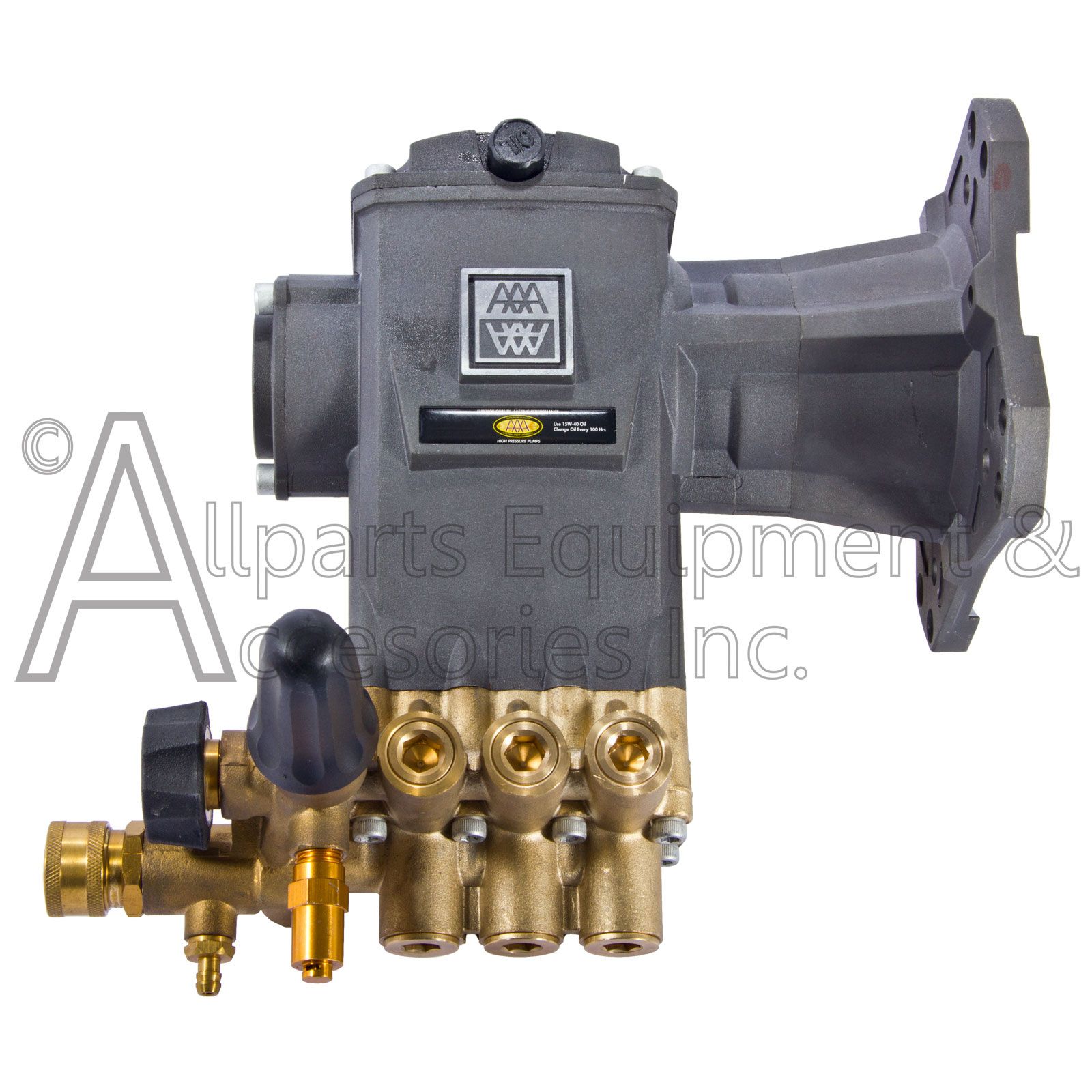

530012 aaa c41 series pump, 4000 psi @ 3.3 gpm pump kit
530012 aaa c41 series pump, 4000 psi @ 3.3 gpm pump kit 530012 AAA C42 SERIES PUMP KIT 4000PSI 3.3GPMn old style 530012 c41 series pump, 4000 psi @ 3.3 gpm pump kit view 530012 c41 series pump, 4000 psi @ 3.3 gpm pump kit view 530012 c41 series pump, 4000 psi @ 3.3 gpm pump kit

530012 AAA C42 SERIES REPLACEMENT OEM PUMP KIT 4200PSI 3.3GPM

In stock
Part Number
530012
$289.90
Part Number: 530012
Brand: AAA, OEM, DeWalt, Excell, Simpson, Delco
Shipping Weight: 22 Lbs
The 530012 AAA™ PROFESSIONAL triplex pumps manufactured by FNA are highly efficient pumps that minimized engine load while delivering top performance. AAA™ pumps are equipped with Patented Powerboost™ technology that provides higher pressure at the spray nozzle.
This 530012 pump contains dual oversized ball bearings for better wear, friction resistance and longer-lasting performance in harsh cleaning environments.

AAA™ Pumps have solid ceramic plungers along with top-performing professional, long-lasting Parker® high-pressure seals manufactured in Germany.

Service Note:
The 90039 / 530012 AAA High-pressure Pump requires a minimum 11HP 340CC Engine to perform correctly; pressure must be reduced on engines less than 11 Horse Power.


Additional Features of the AAA 530012 High-Pressure Pump are:

4000 PSI @ 3.3 GPM
PowerBoost™ Technology
Fully adjustable unloader system with ergonomic control
Sight glass and advanced oil seal technology, does away with the need for a dipstick
Thermal relief protection to prevent pump overheating
Dual oversized radial ball bearings are installed for better wear, friction resistance and precision ceramic coated pistons for extended seal life.
Crankcase is manufactured from fully anodized die-cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure.
Gas engine flange and hollow shaft that fits most horizontal shaft engines

Specifications:

PSI: 4000
GPM: 3.3
Kit Includes: Siphon tube with filter, mounting bolts, and shaft key
Inlet Port: 3/4” GH
Discharge Port: 3/8” Quick connect female
Inlet Pressure Range: 10-60 PSI
Thermal Relief Port: 1/2” NPT
Shaft Diameter: 24mm
Key Way: M8
Pump Oil Capacity: 11 fl oz.
PowerBoost®: Yes
Head: Brass

Need Help? Call us:

1-269-685-4123
