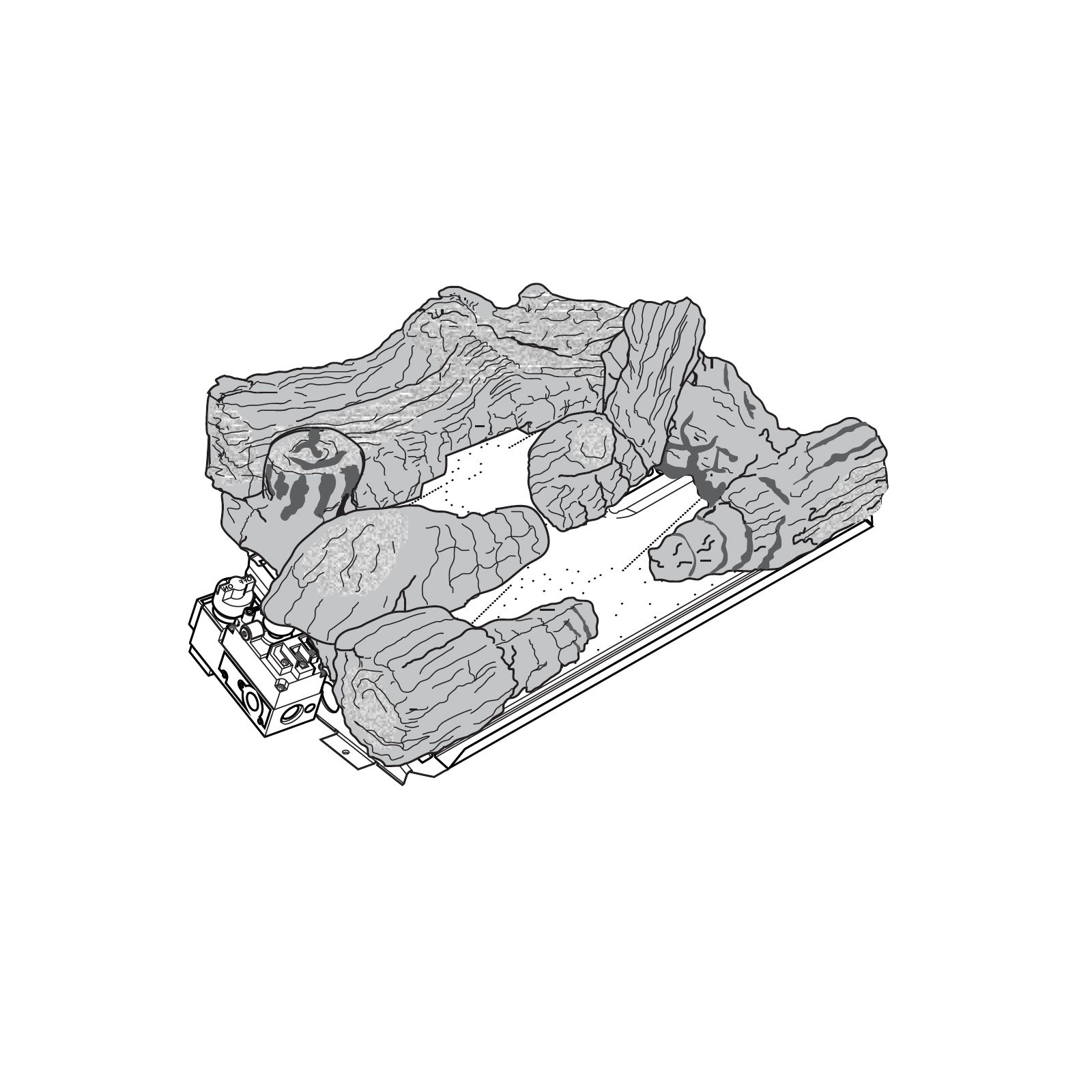

30TPB Majestic Gas Log Heater with Standing Pilot & Millivolt Gas Valve

The 30TPB is a vent-free gas log heater that features millivolt control. This Majestic gas log heater has two variations, the 30TPBNV natural gas model and the 30TPBPV liquid propane gas model.

The 30TPBPV should only be used with liquid propane gas and the 30TPBNV should only be used with natural gas.

The millivolt control gas valve in the 30TPB features an adjustable knob. An On/Off switch controls the standing ignition pilot. Additional control methods are sold separately, including a wall-mounted thermostat and a remote receiver.

This vent-free gas burner can operate without outdoor venting, though it is important to follow the specific air clearance requirements. Refer to the installation instructions for a full breakdown of the clerance requirements.

Features of the 30TPB Vent Free Gas Log Burner

• Includes a millivolt gas valve with an adjustable Hi/Low knob.
• Supports optional remote transmitter and receiver or wall-mounted thermostat. (sold separately.)
• Standing pilot remains on during operation to allow for quicker ignition.
• ODS pilot features a safety shutoff that prevents gas flow when insufficient oxygen is available.
• Comes standard with decorative ceramic fiber log set and decorative crushed volcanic rock.

Specifications

Max. NG Input Rating: 38,000 BTU/hr.

Max. LPG Input Rating: 34,000 BTU/hr.

Min. NG Input Rating: 26,000 BTU/hr.

Min. LPG Input Rating: 26,000 BTU/hr.

Max. NG Inlet Pressure: 5 in. w.c

Min. NG Inlet Pressure: 11 in. w.c

Max. LPG Inlet Pressure: 10.5 in. w.c

Min. NG Inlet Pressure: 13 in. w.c
