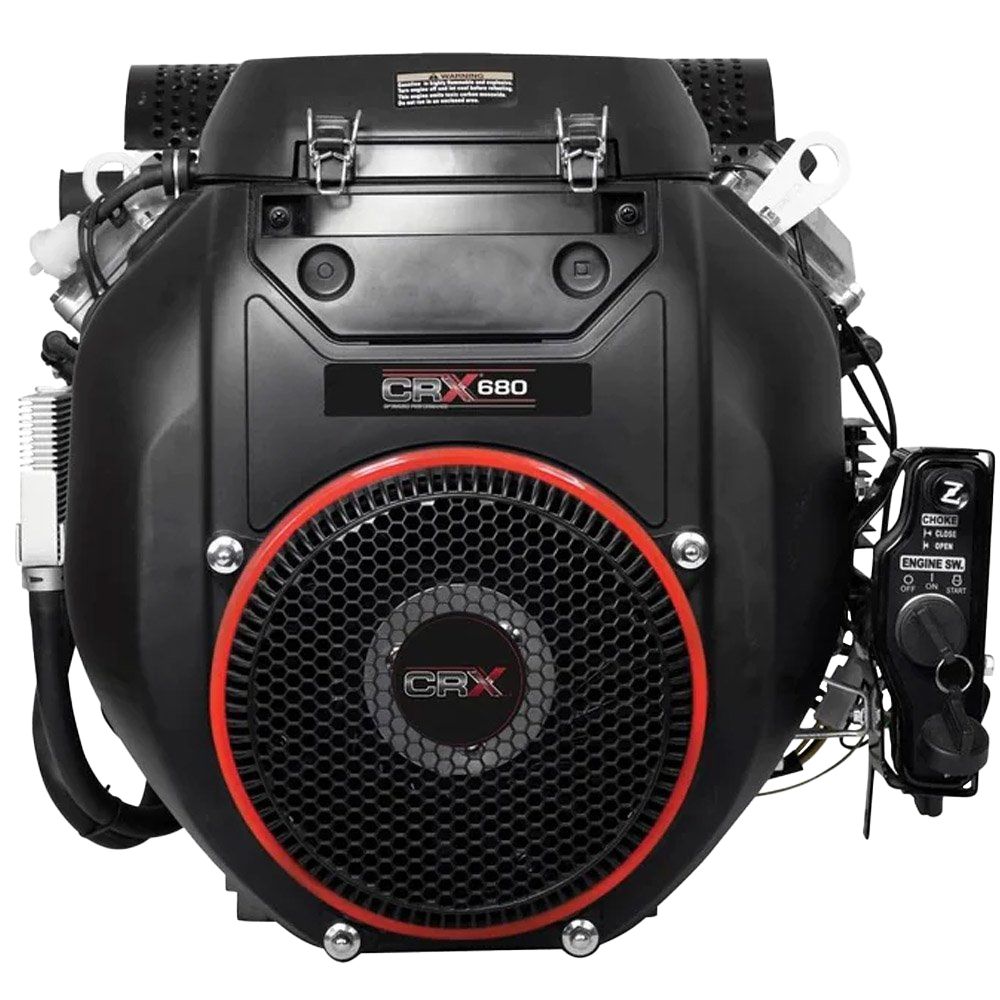

100732 CRX680 V-Twin Engine, 50-State, Black
Out Of Stock
Part Number
100732
$1,299.00
The 100732 is a CRX680 engine with an electronic key start. It's net power is 19.4 HP at 3600 RPM and features an overhead valve design, a dual-element air filtration system, and a 20A alternator.
This CRX680 engine is built for heavy-duty applications and is commonly found in pressure washers, garden equipment, water pumps, generators, and more.
The 100732 engine has an integrated oil cooler, air filter, and a low oil shutdown feature, which helps prevent engine damage.
Features Of The 100732 CRX680:
- Stabilized crankcase with oversized ball bearings, which lowers vibrations and reduces wear.
- Heavy-duty mufflers and shields improve sound quality and keep operating noise low.
- Advanced air filtration system helps maintain optimal power on dusty job sites.
- Features full-pressure lubrication, ensuring a constant, controlled oil flow to critical components.
- Equipped with cast iron cylinders, which help decrease friction and keep the engine cool in heavy-duty applications.
Specifications Of The 100732 Engine:
Engine Displacement: 678cc
Net Power: 19.4 HP at 3600 RPM
Net Torque: 42 Nm at 2600 RPM
Bore x Stroke: 3.07 in x 1.77 in. (65 x 45mm)
Compression Ratio: 8.5 : 1
Alternator Output: 12 volts, 20 Amps, 240 Watts
Oil Capacity: 47.36 fl. oz.
Dimensions:
Length: 20 in.
Width: 20 in.
Height: 19 in.
Weight: 109 lbs.
