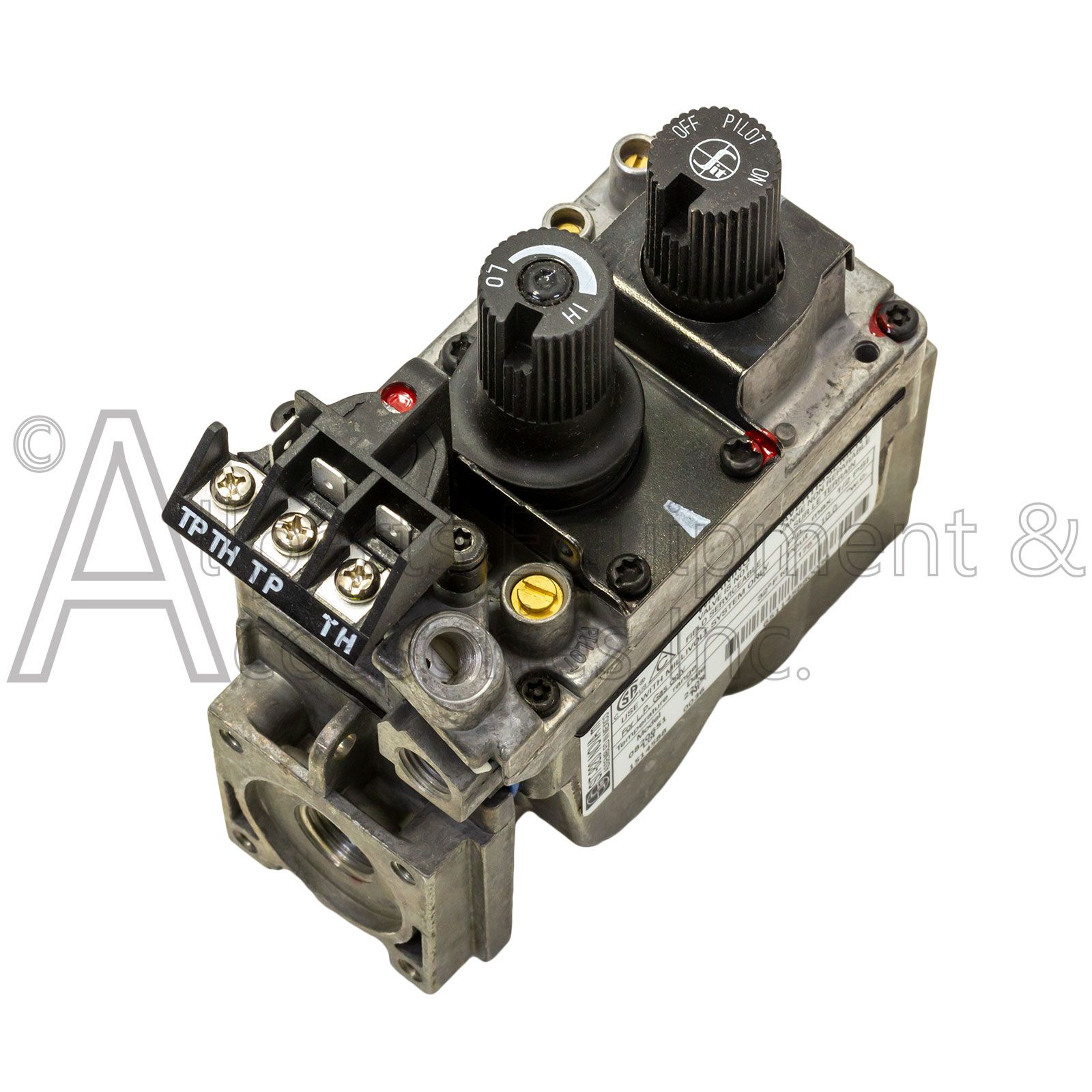

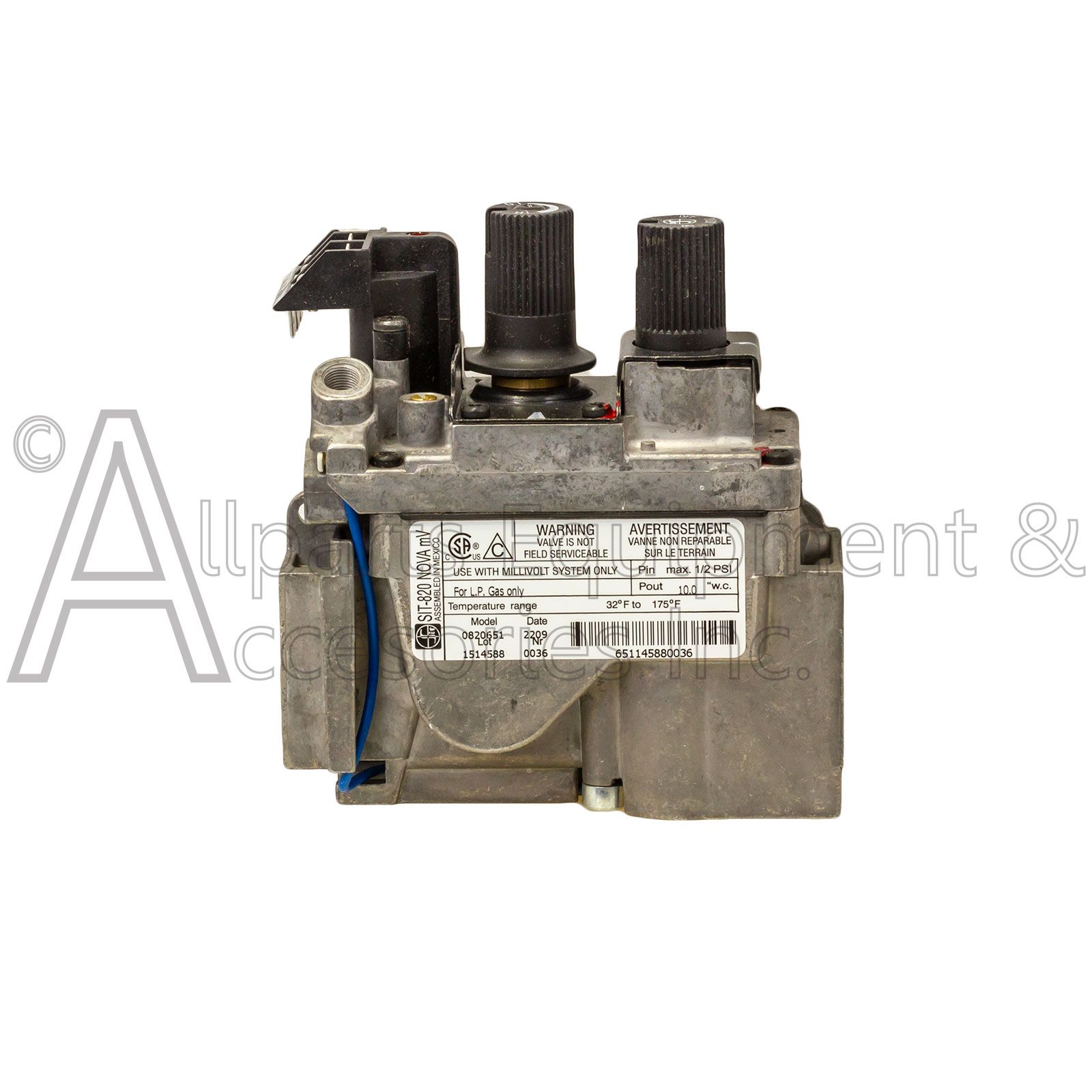

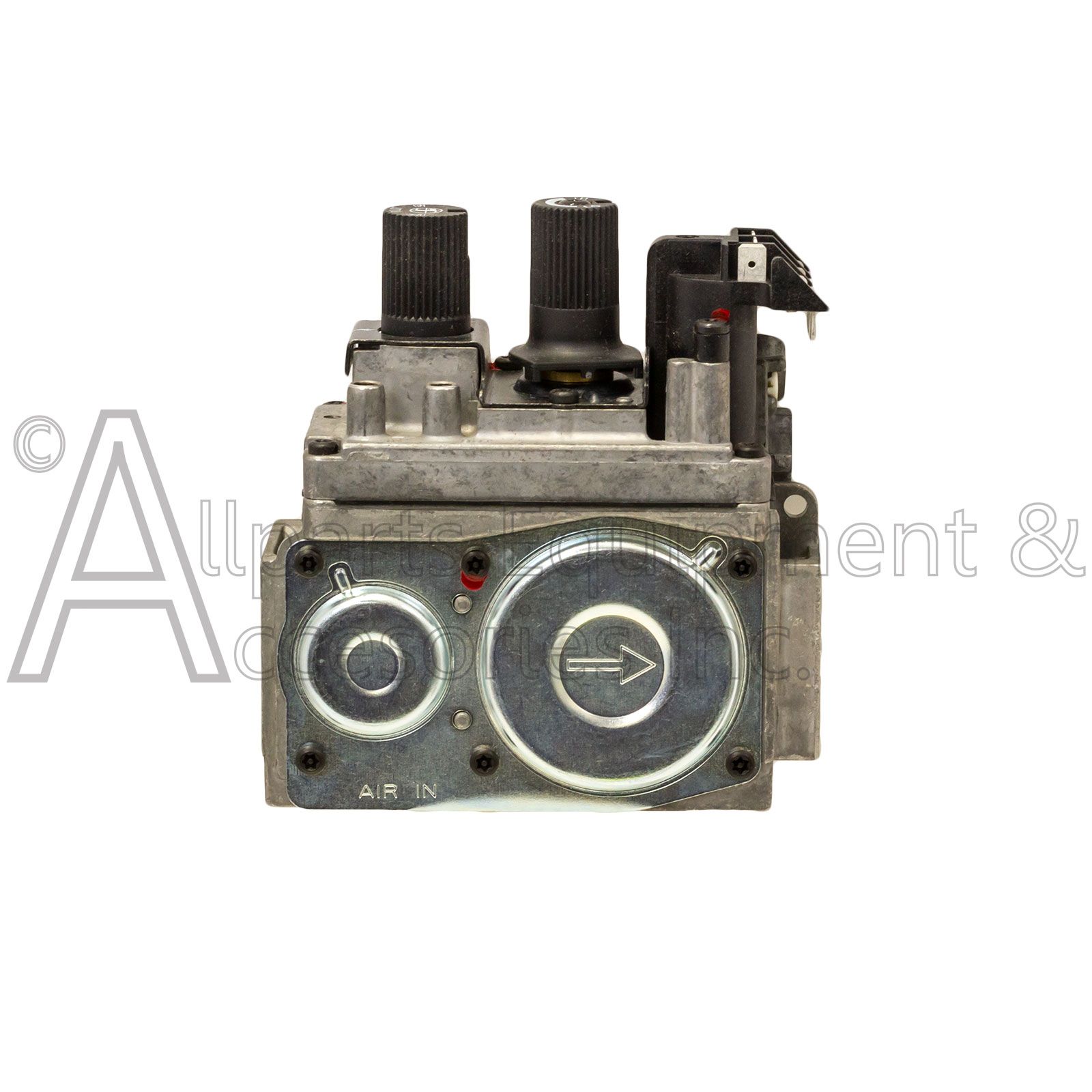

0820651 Propane Gas Valve SIT 820 NOVA

The 0820651 is a SIT NOVA liquid propane gas valve with a Hi/Lo variable flame adjustment knob. The 0820651 is a remote-ready millivolt gas valve that is compatible with millivolt remote transmitters and receivers.

This split-system millivolt SIT valve is designed for use with compatible vented liquid propane appliances only.

Specifications of 0820651 Gas Valve

• Minimum Voltage: 145mV
• Coil Resistance: 2.25±0.5
• Thermo-Electric Unit Hold-in Current: Less than 285Ma
• Drop-out Current: Greater than 125mA with coil resistance 0.018± 0.003
• Gas Type: Propane Gas
• Manual Pressure Set-Point: 10.0” w.c. ± 0.4
• Range of Adjustment: 10.0” w.c. -6.3” w.c. Set at 30K btu/hr
• Thermocouple Connection: ¹¹/₃₂ ASA-DNC
• Propane "LPG" Gas Inlet: ³/₈ in. NPT
• Propane "LPG" Gas Outlet: ³/₈ in. NPT
• Maximum Propane Gas Inlet Pressure: ¹/₂ PSIG
• Ambient operating Temperature: 32° to 175° F
• Maximum @ 1 in. w.c. Pressure Drop: 162,000 BTU per hour
• Regulation Capacity: 8,100 to 315,900 BTU AP per hour
• Maximum Inlet Pressure: ¹/₂ PSIG
