520738 GLOW BAR HSI ROUND SPIRAL IGNITER KIT
In stock
Part Number
520738
$129.90

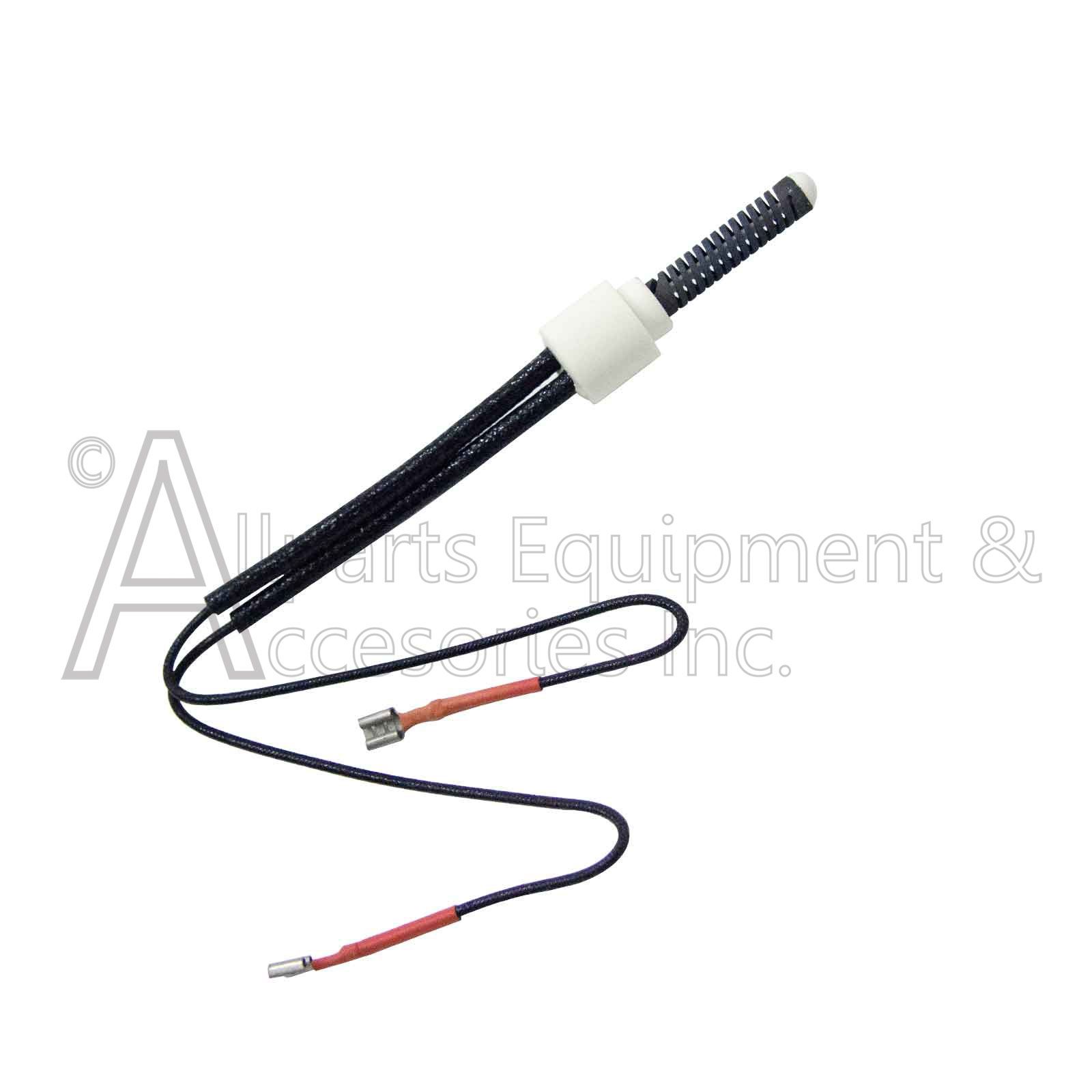

520738 Glow Bar Replacement Kit is the Original Equipment shouldered round spiral series HSI Hot Surface Igniter and Glow Bar for Dynavent, Suburban, and Williams through wall furnaces and greenhouse heaters.
520738 is the most current part number and replaces all previous part numbers including: 100980, 187667, 231313
520738 Glow Bar Hot Surface Igniter fits the following Dynavent and Suburban wall furnace models:
DNV25N
DNV25P
DNV25G
DNV25GS
DNV40N
DNV40P
DNV40G
DNV40Gs
Allparts Equipment is No Longer providing technical service for the Dynavent and Suburban Aire line of through the wall gas furnaces as they have been purchased MarVair and Airxcell owned company.
All service question will need to be directed to the following phone number or email addresses.
MarVair Customer Service Phone: (229) 273-3636
Email Customer Service marvaircustserv@airxcel.com
Email Technical Service marvairtechsupport@airxcel.com
Need Help? Call us:
1-269-685-4123The 520738 HSI Glow Bar has a very specific ohms reading that must be reached that is specific to this series of HIS Glow Bars.
The 520738 Glow Bar must be replaced with the original equipment glow bar.
If the correct Glow Bar is not used then the 230954 Module Control Board will not engage the 24 Volts from the 230954 control board and will not allow the gas valve to open.
If the OEM Glow Bar is not used the heater may not operate properly and damage to the Module Control Board may occur.
The 520738 Glow bar must reach 2000 degrees F in still air at 115 Volts +or- 1 VAC within 0-60 seconds at 75 degrees + or - ambient temperature.
Cold resistance is to be less than 500 Ohms.
A steady state current range needs to be 2.50 to 3.00 Amps at 115 Volts + or - 1 VAC.
Many times we see the 520738 Glow Bar replaced with an after market Glow Bar and then the heater will not ignite.
Many times the installer will order and install a new module board for the heaters and the wall furnace will still not ignite even though the Glow Bars does glow and prepare to ignite.
This is due many times to the wrong glow bar being used as a replacement part.
The 230954 Control Board needs the specific ohms that are passed through the 520738 Glow bar and will not sense that the correct ohms are being sent to the board with most after markets glow bars.
This item will ship in a 14x10x10 Box with peanuts and although the shipping weight is only 2 pounds but the dimensional weight will be 10 pounds.
This item is checked before they are shipped to assure the HIS Ignitor is not damage.
Any claims for a damaged or broken item will require the part and the original packaging to be return prepaid for inspection.
The 520738 Glow Bar must be replaced with the original equipment glow bar.
If the correct Glow Bar is not used then the 230954 Module Control Board will not engage the 24 Volts from the 230954 control board and will not allow the gas valve to open.
If the OEM Glow Bar is not used the heater may not operate properly and damage to the Module Control Board may occur.
The 520738 Glow bar must reach 2000 degrees F in still air at 115 Volts +or- 1 VAC within 0-60 seconds at 75 degrees + or - ambient temperature.
Cold resistance is to be less than 500 Ohms.
A steady state current range needs to be 2.50 to 3.00 Amps at 115 Volts + or - 1 VAC.
Many times we see the 520738 Glow Bar replaced with an after market Glow Bar and then the heater will not ignite.
Many times the installer will order and install a new module board for the heaters and the wall furnace will still not ignite even though the Glow Bars does glow and prepare to ignite.
This is due many times to the wrong glow bar being used as a replacement part.
The 230954 Control Board needs the specific ohms that are passed through the 520738 Glow bar and will not sense that the correct ohms are being sent to the board with most after markets glow bars.
This item will ship in a 14x10x10 Box with peanuts and although the shipping weight is only 2 pounds but the dimensional weight will be 10 pounds.
This item is checked before they are shipped to assure the HIS Ignitor is not damage.
Any claims for a damaged or broken item will require the part and the original packaging to be return prepaid for inspection.
