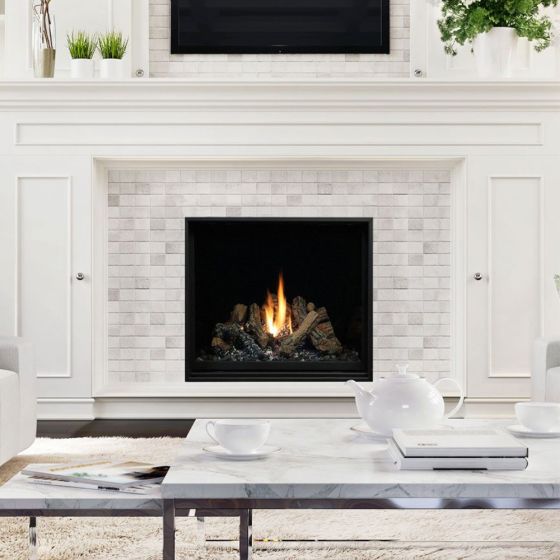

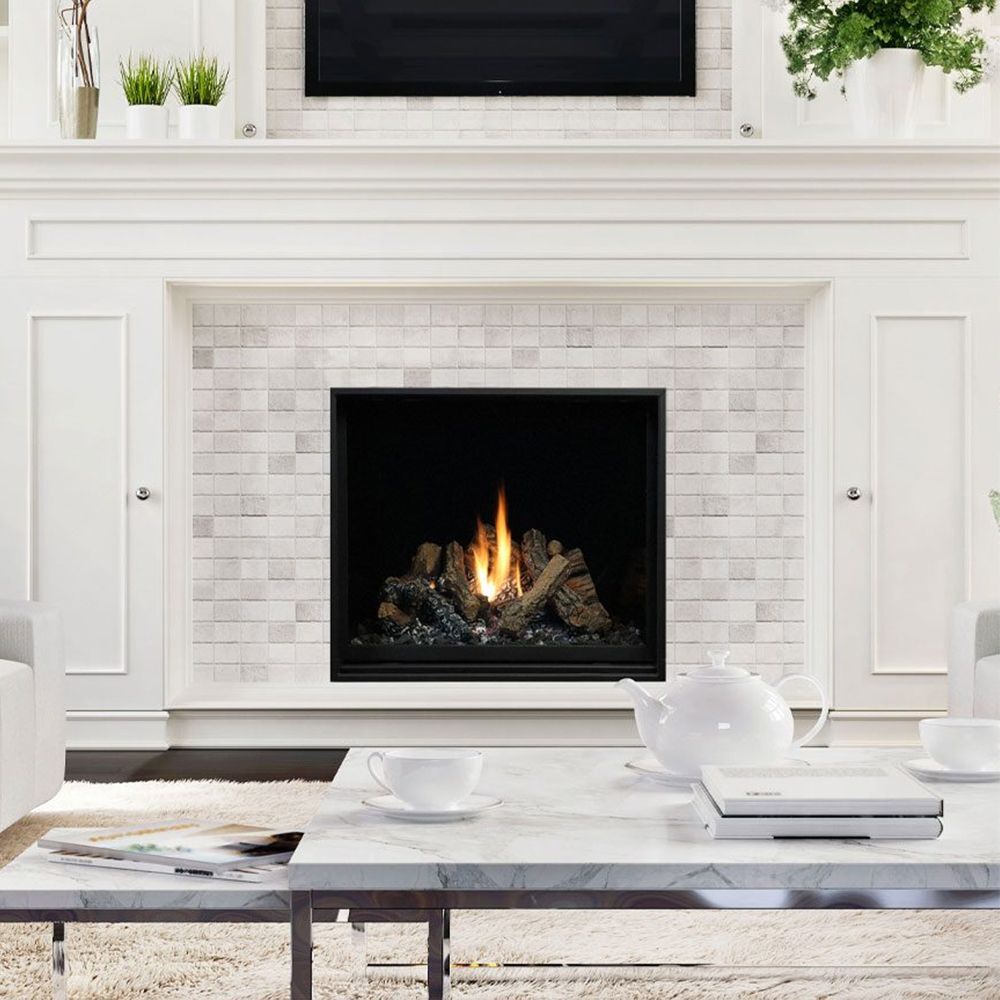

ZCV39LPHE Kingsman Liquid Propane Gas Fireplace with IPI Control, Ceramic Glass Front

The ZCV39LPHE is a liquid propane gas fireplace with an electronic ignitor. This Kingsman fireplace has a maximum input rating of 29,000 BTUs and features a ceramic glass front screen.

The burner on the ZCV39LPHE features both a Hi/Lo adjustment knob and a flame height control knob.

This fireplace has several control options, including a wall-mounted thermostat, a programmable thermostat, or an on/off remote control thermostat.

Features of the ZCV39LPHE Fireplace

The ZCV39LPHE's features depend on the optional accessories installed and may differ from those supported by your fireplace.

• Intermittent pilot ignition is able to light the unit even during power outages.
• An optional thermostatic controlled blower fan kit with variable speed control can be installed.
• Allows for several IPI control methods, including a wall-mounted thermostat, a programmable thermostat, and a remote control thermostat.
• Uses a decorative log set for a realistic fireplace aesthetic.

Specifications

Gas Type: Liquid Propane Gas

Gas Control: IPI

Max. Input Rating: 29,000 BTUs

Min. Input Rating: 23,000 BTUs

Flame Efficiency: 68.65%

Flex Vent & Hard Pipe Vent Size:

Flex Vent: 7 in.

Hard Pipe: 4 in. x 6 ⁵ / ₈ in.

Fireplace Dimensions:

Width: 39 3/8 in.

Height: 37 11/16 in.

Depth: 18 7/16 in.
