W010-0798 Natural Gas Pilot Assembly for Napoleon Fireplaces
In stock
Part Number
W010-0798
$72.98

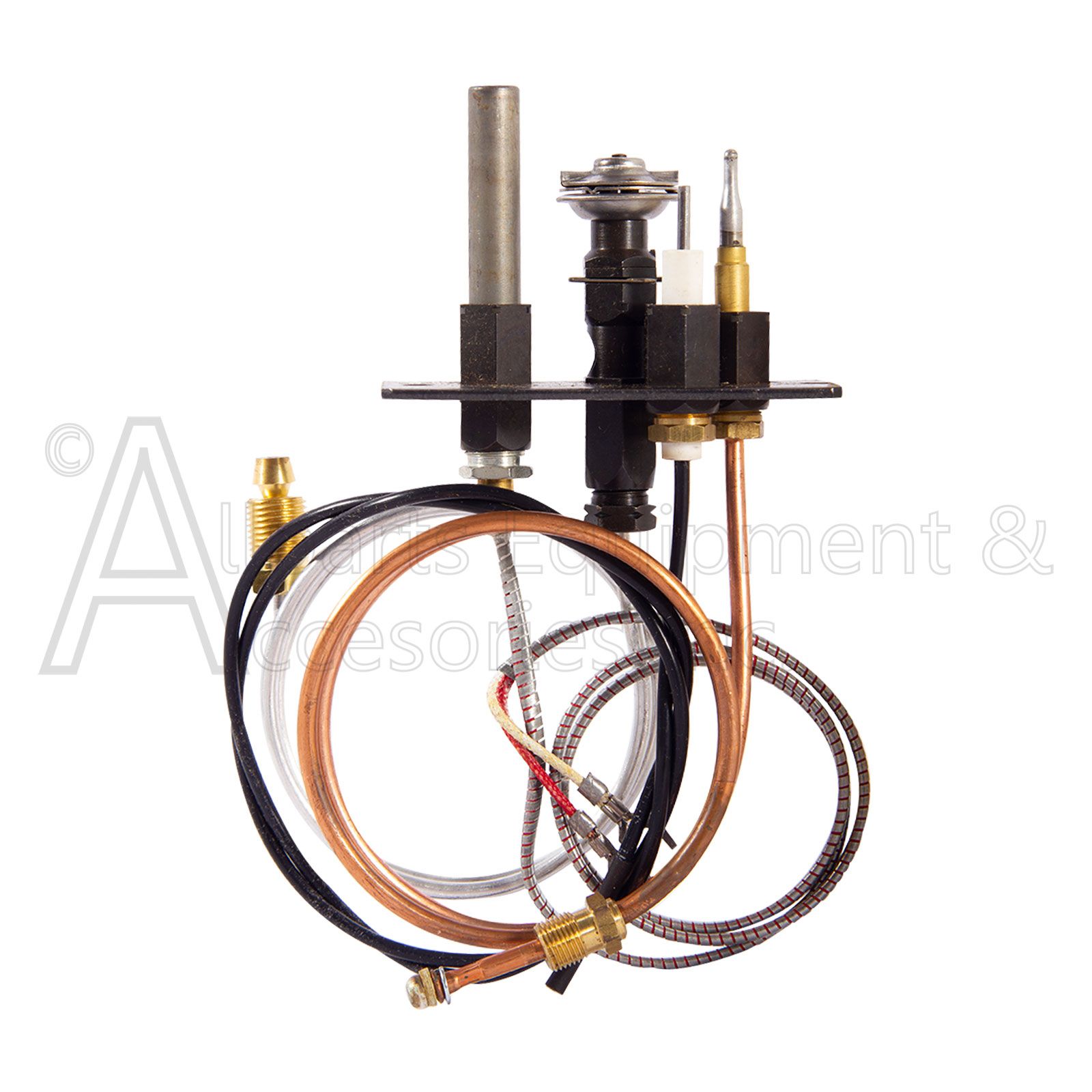

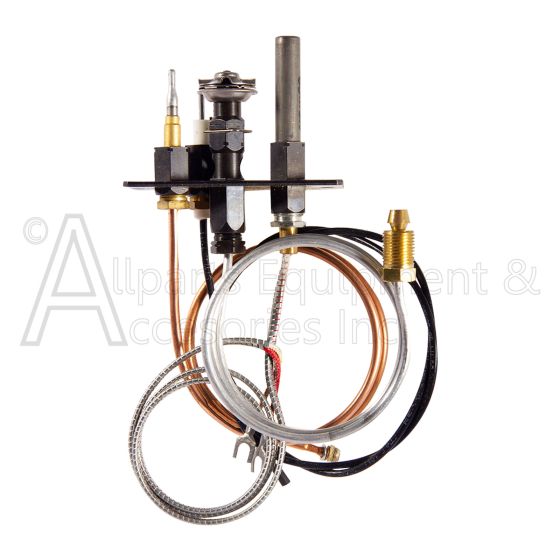

Napoleon’s W010-0798 assembly is a direct vent natural gas pilot assembly with a tri-directional 3-way pilot hood.
The W010-0798 pilot is part of SIT Group’s 199 PILOT series of gas fireplace pilot assemblies. Our W010-0798 includes a preassembled pilot burner and the required hardware for installation.
The W010-0798 is a pilot assembly for natural gas fireplaces. Some Napoleon stoves and log sets also use the pilot.
Service Note:
The Napoleon fireplace pilot assembly W010-0798 is part of SIT Group’s 199 PILOT series.
The 199 PILOT series contains many pilot assemblies that are similar in look and function.
There are subtle but important differences between 199 PILOT assemblies that greatly impact their intended use.
It is very important that you use the exact model pilot as recommended by the appliance manufacturer. Refer to the user’s manual for your appliance to avoid unnecessary safety risks.
Function and Specifications of the W010-0798:

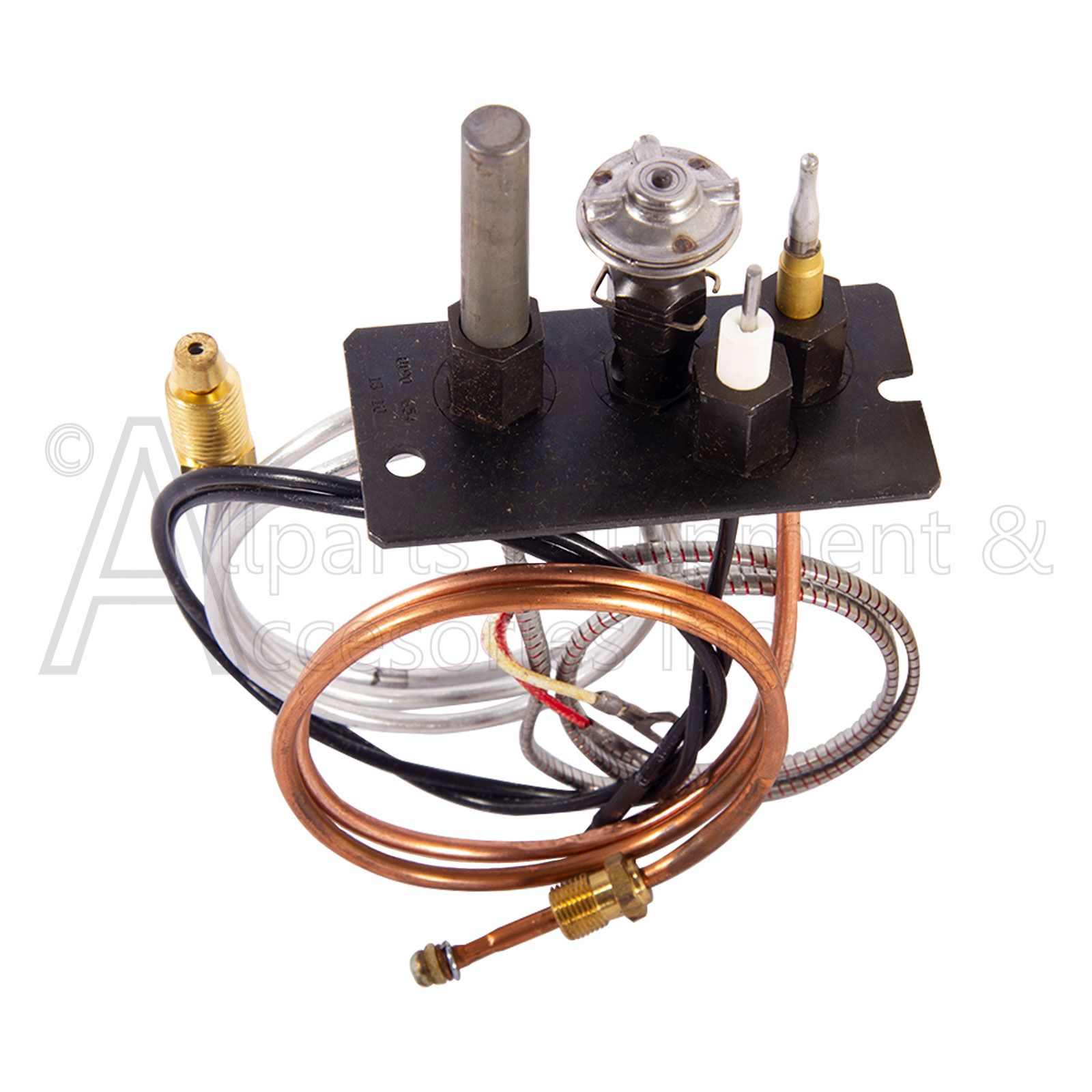

The easy-to-install W010-0798 includes a high-temperature pilot tube, 24 in. thermopile, 600mm thermocouple, and ignition electrode.
Designed for reliability and consistency, the OEM genuine replacement pilot assembly can service a wide range of Napoleon fireplaces.
For a partial list of compatible Napoleon fireplaces, see the Details section at the bottom of this page.
Feature Breakdown:
- Tri-directional (3-way flame) pilot hood
- Compatible with select natural gas appliances
- High temperature pilot tube
- For natural gas use only
- OEM genuine Napoleon replacement part
Specifications of the W010-0798 Assembly:
- Pilot tip temp. rating: 1450°F
- Electrode tip temp. rating: 1480°F
- Thermopile length: 24 in.
- Thermocouple length: 600 mm
- Electrode wire length: 620 mm
- Electrode wire connector: Female 2.4 mm
- Assembly weight: 1/2 lb.
- Assembly Dimensions: 3x2x2 in.
The following is a partial list of Napoleon fireplaces that the W010-0798 pilot services. Please ensure that your fireplace is configured for natural gas before installing the W010-0798.
| B30 Ascent |
| B35 Ascent |
| B36 Ascent |
| B42 Ascent |
| B46 Ascent |
| B36DF |
| BGD33 |
| BGD34 |
| BGD36 |
| BGD36CF Grandville |
| BGD38 |
| BGD40 |
| BGD42 |
| BGD42CF |
| BGNV40 |
| BGNV42 |
| GD33 |
| GD34 |
| GD36 |
| GD70 |
| GD70 StarFire Series |
| GDI30 |
| GDI50 |
| GDIZC |
| GDS20 |
| GDS50 |
| GDS60 |
| GE38 |
| GSS36 |
| GX36-1 Ascent |
