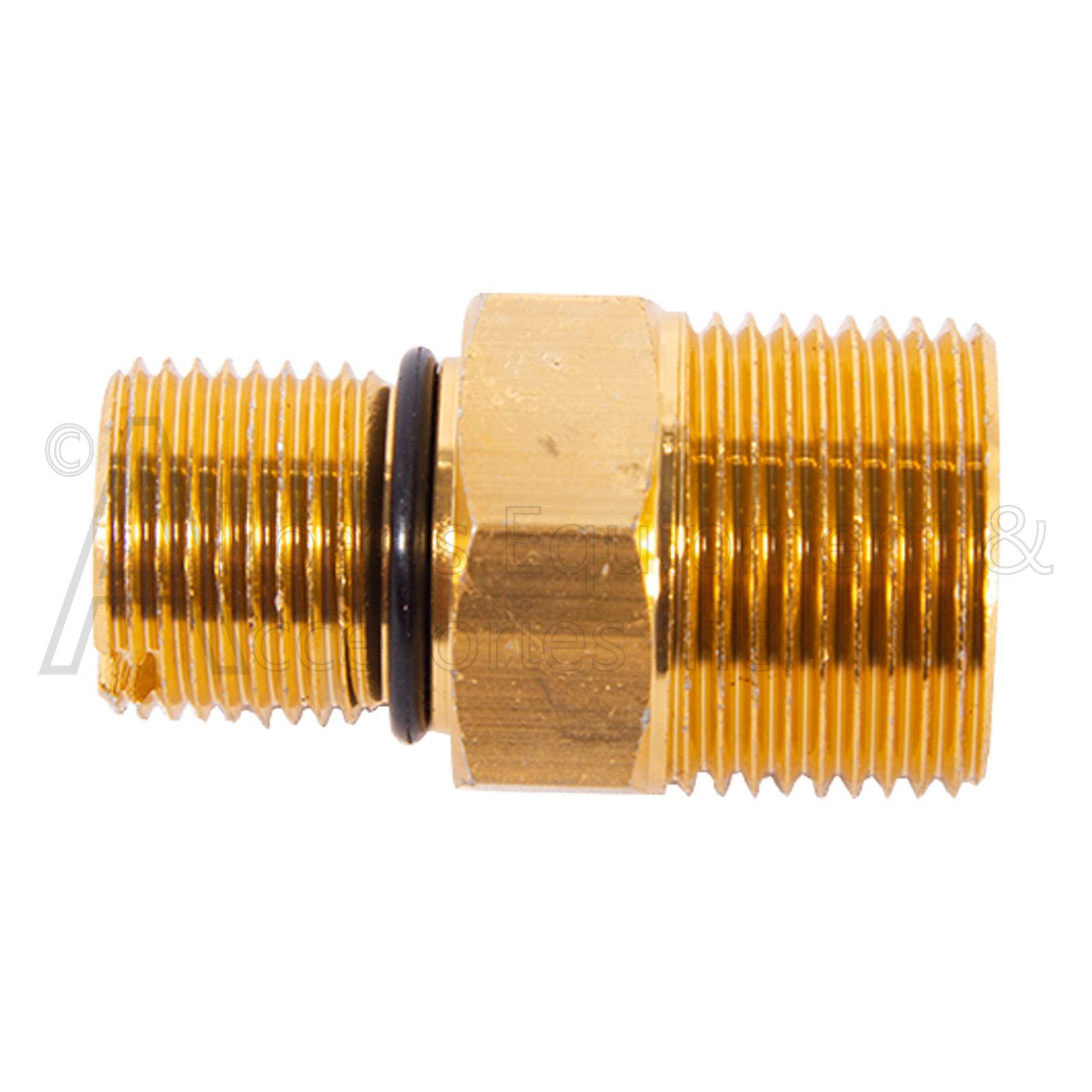

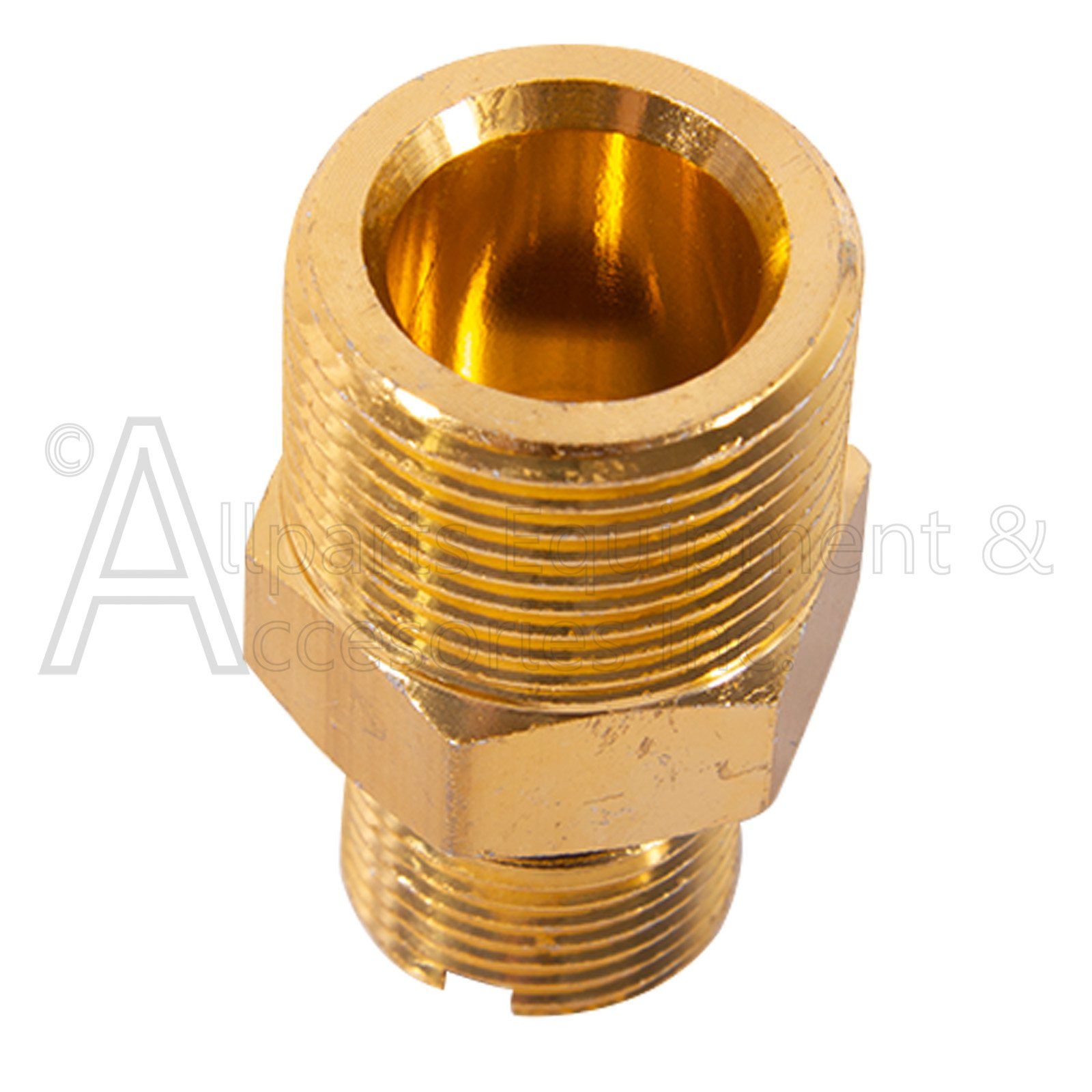

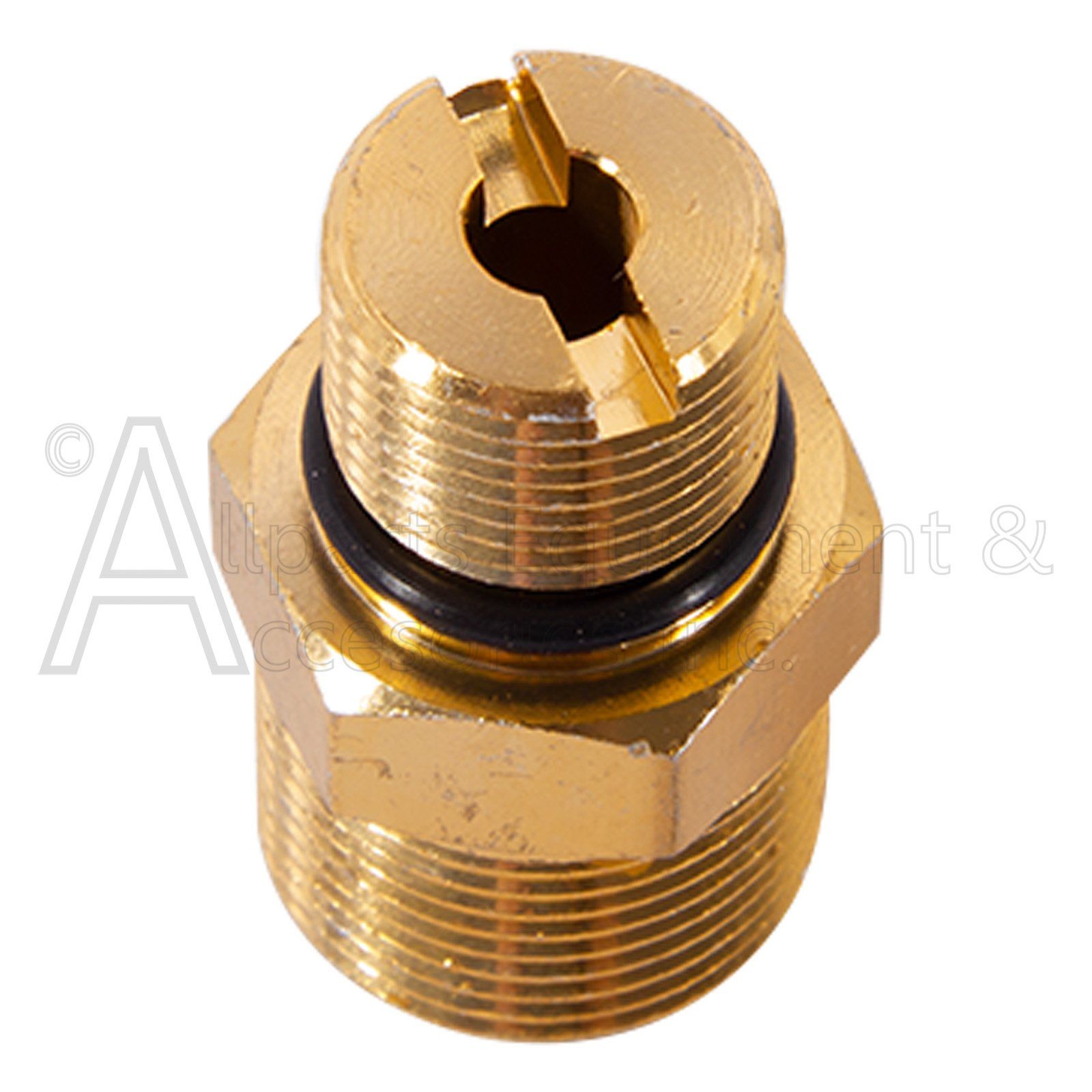

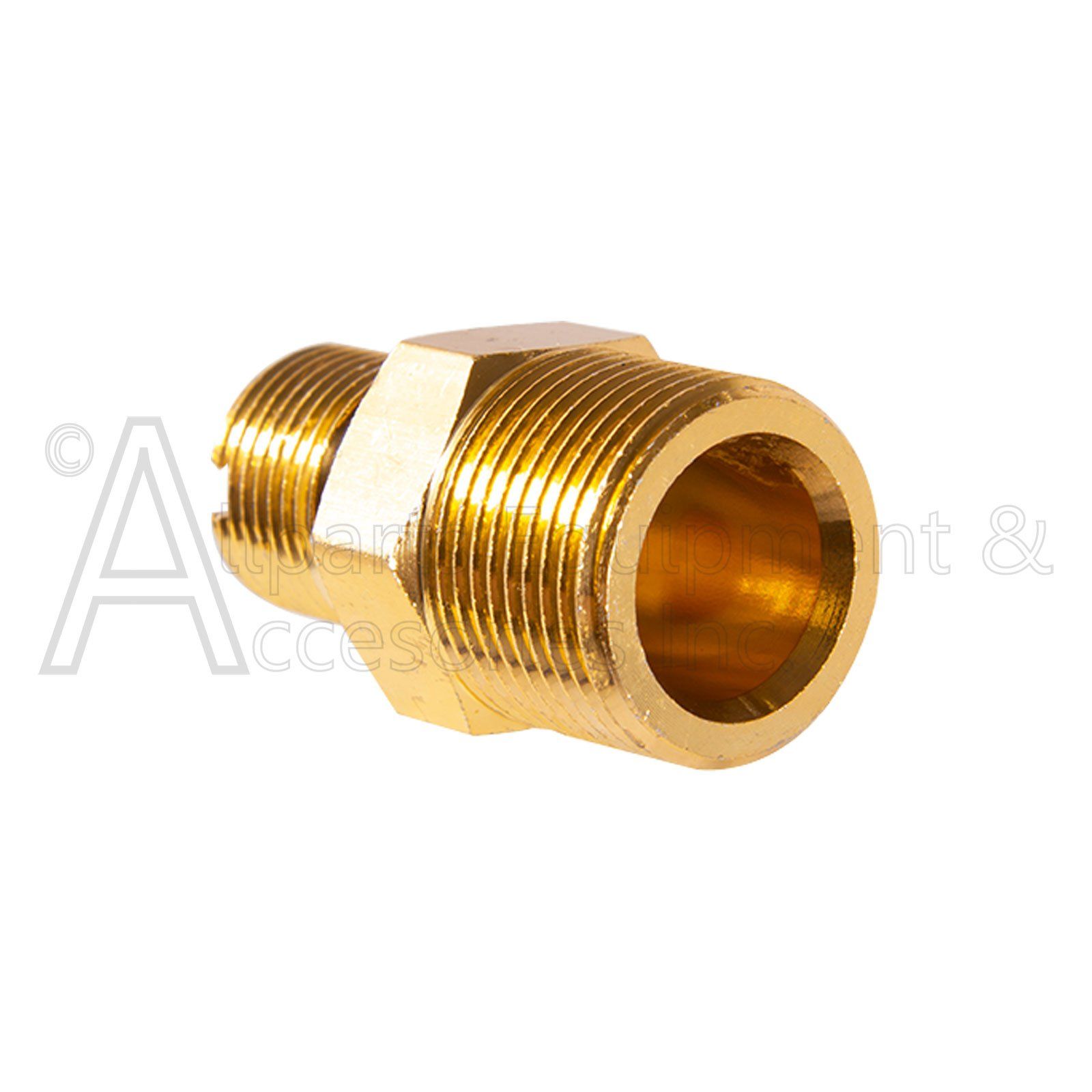

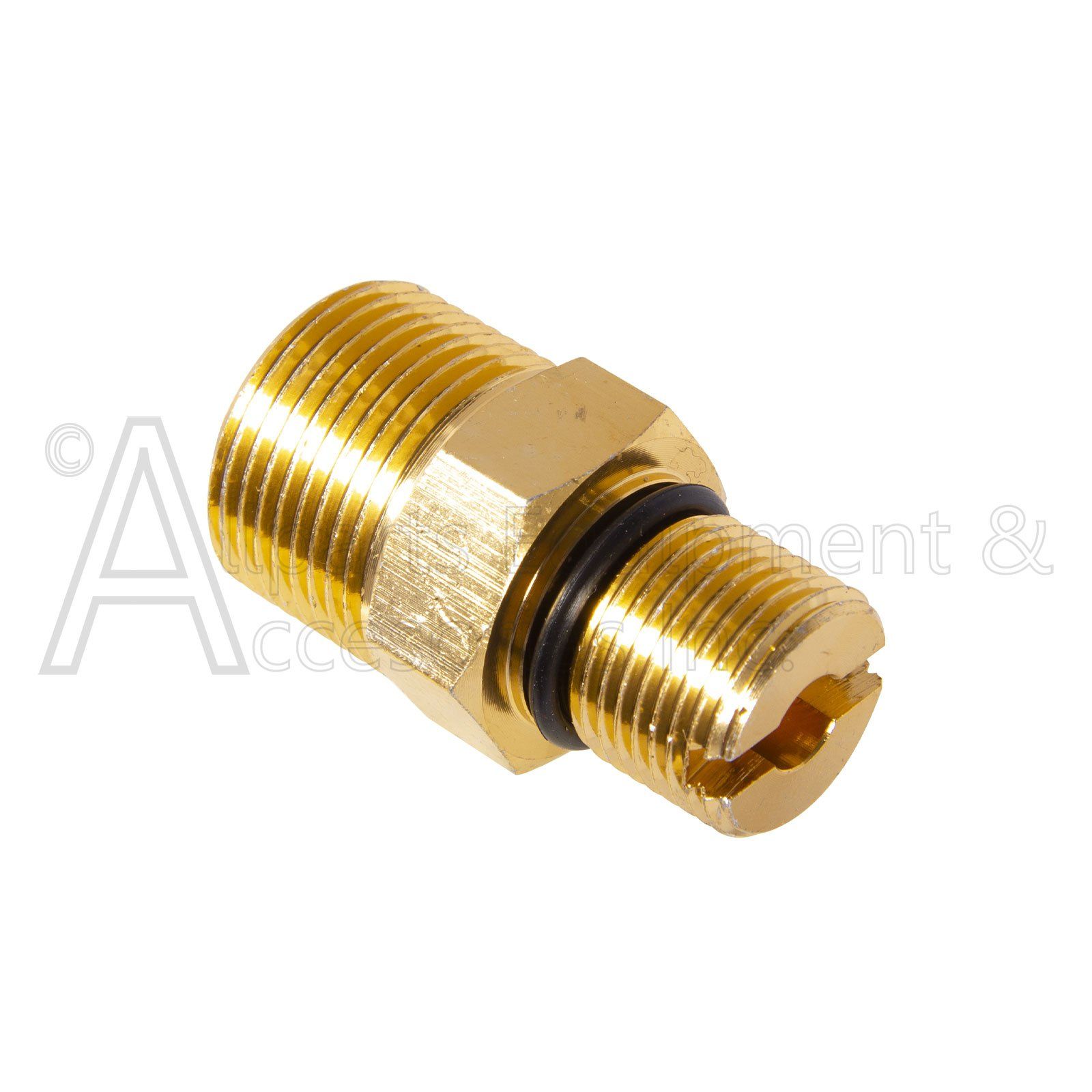

7110265 Water Outlet Fitting w/ 22mm Hose Connection and O-Ring

7110265 is a replacement outlet fitting for OEM Technologies CY series pressure washer pumps.

The 7110265 is installed is removed and installed using a 25MM or 7/8" Wrench.

The 7110265 outlet fitting is used on the following pumps as well as various other pump from FNA Group:

520002 OEM Technologies Pump
7106161 OEM Technologies Pump
530015 OEM Technologies Pump
530017 OEM Technologies Pump

7110118 OEM Technologies Pump Manifold
7107344 OEM Technologies Pump Manifold

The 7110265 Outlet Connector has the approximate following dimensions:

22.00MM Outside Diameter Threads for the Hose Thread Connection

14.00MM Inside Diameter for Hose connection
16.50MM Outside Diameter Threads going into the pump 3/8 BSPP
