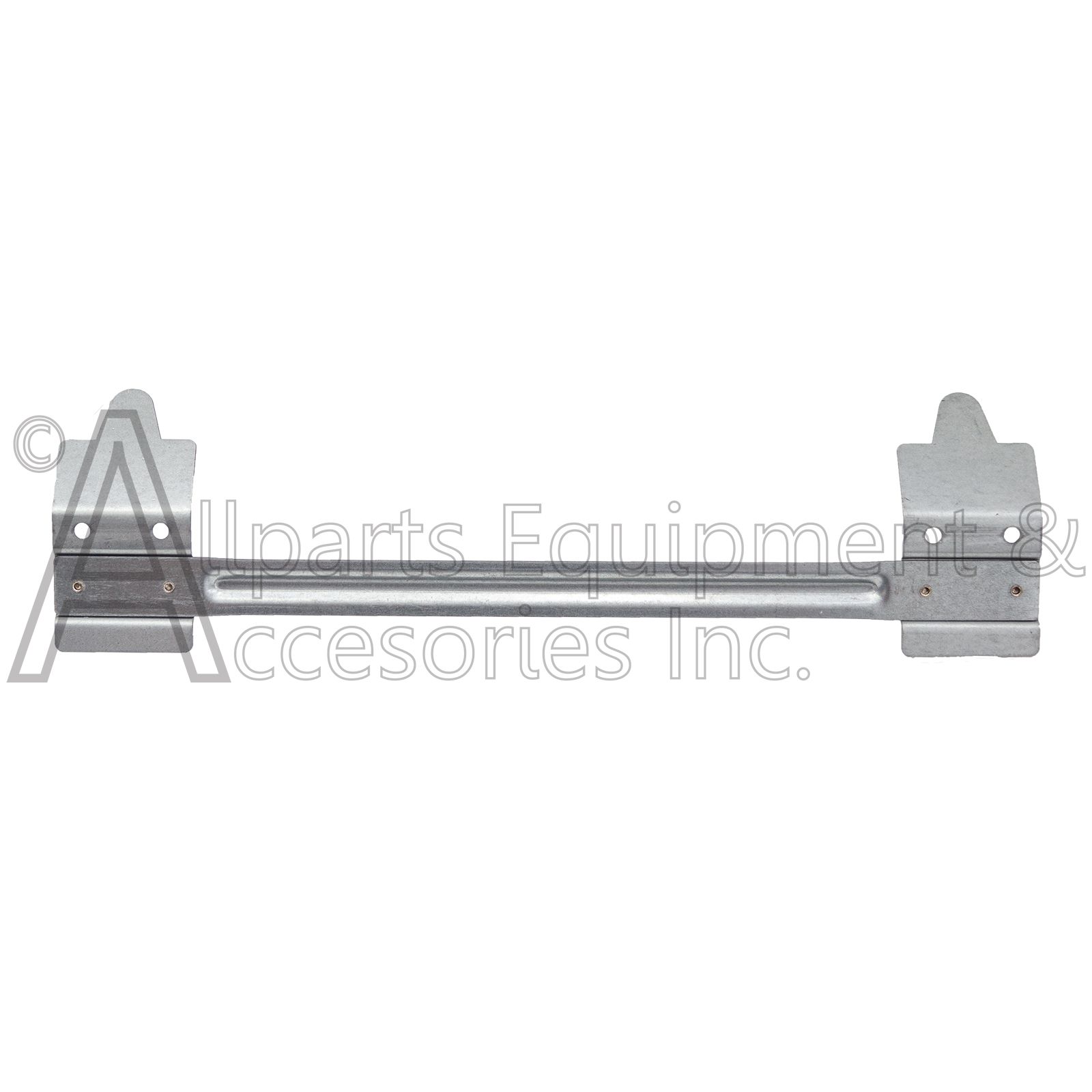

80036 Wall Mounting Bracket 10K Vent Free Heaters

The 80036 is a wall mounting bracket manufactured for Mr. Heater wall-mounting 10,000 BTU vent-free heaters.

This wall bracket measures approximately 11 in. wide from point to point, and measures 10 in. between the inner mounting holes.

Service Note

Sometimes, the holes on the back of the heater need to be elongated with a small round file to allow the bracket to entirely center the vent-free wall heater application.

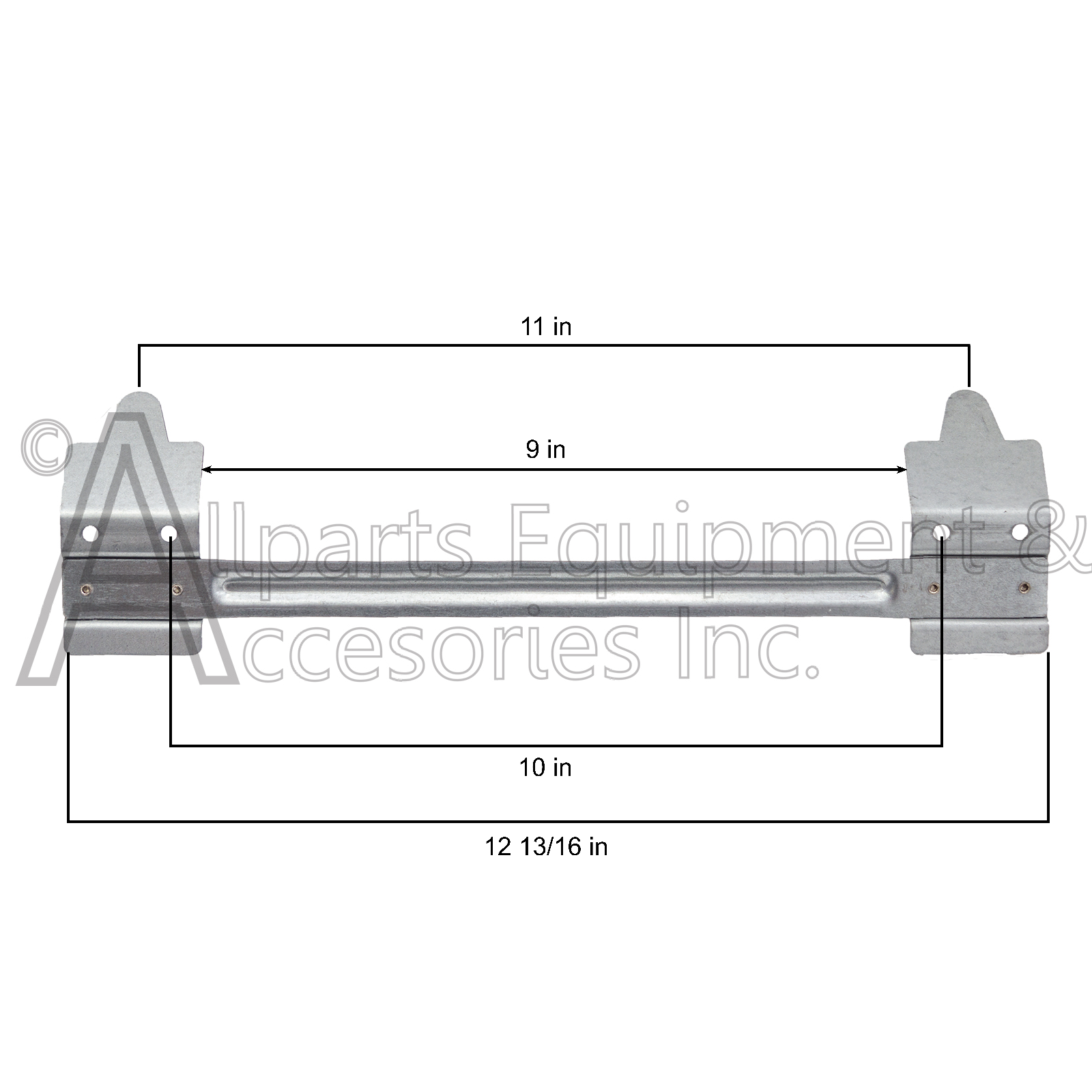

Dimensions:

Overall Width: 12 13/16 in.

Bracket to Bracket Width: 9 in.

Bracket Point to Bracket Point Width: 11 in.

Distance Between Mounting Holes: 10 in.
