W725-0062 Napoleon Electronic Natural Gas Valve with Hi/LO Adjustment

In stock
Part Number
W725-0062
$137.05
Part Number: W725-0062
Compatible Brands: Napoleon
Shipping Weight: 2 Lbs
Non Returnable
Click here to agree to Allpart's Return Policy.
Please see our return policy
⇧ Check The Box If You Want To Proceed.

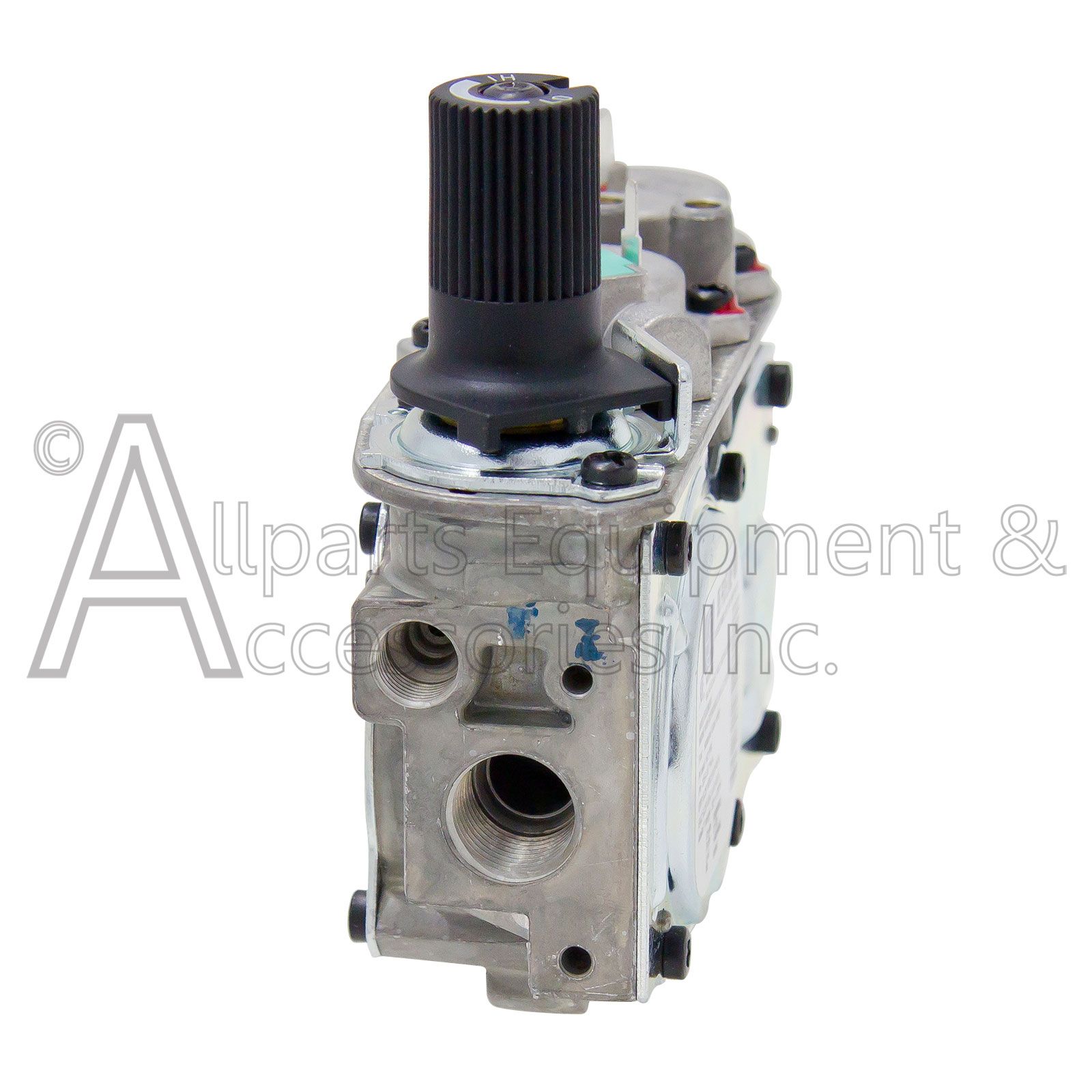

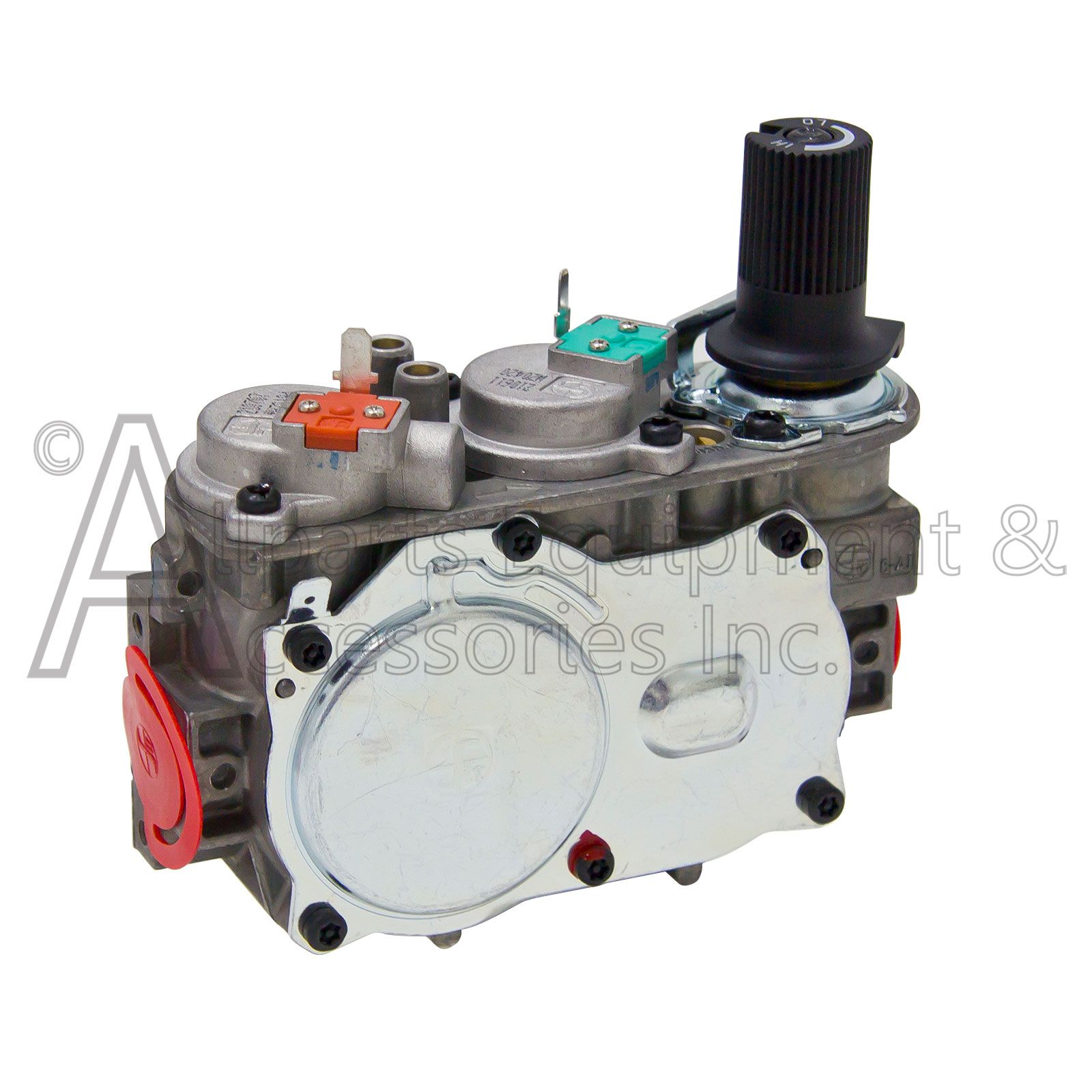

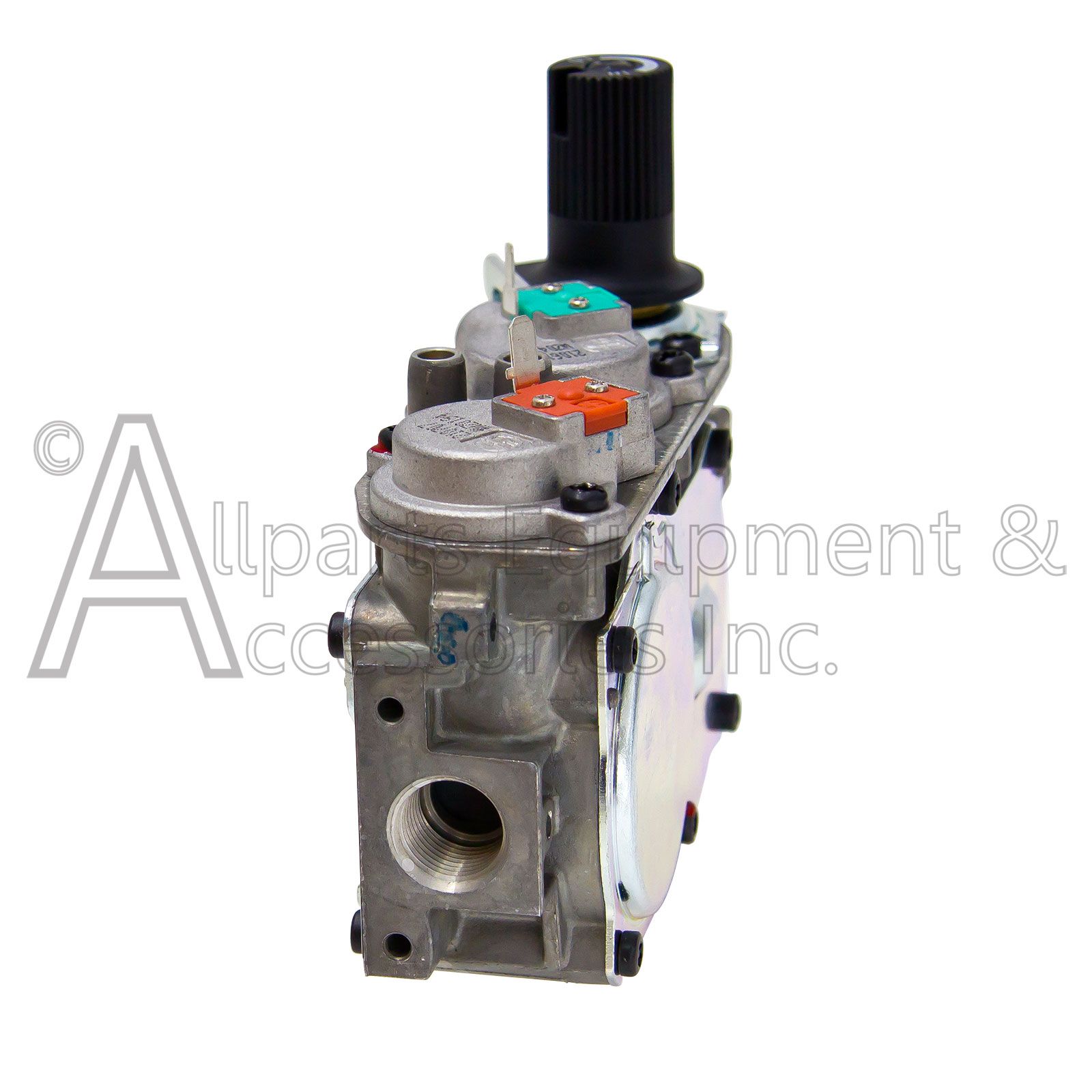

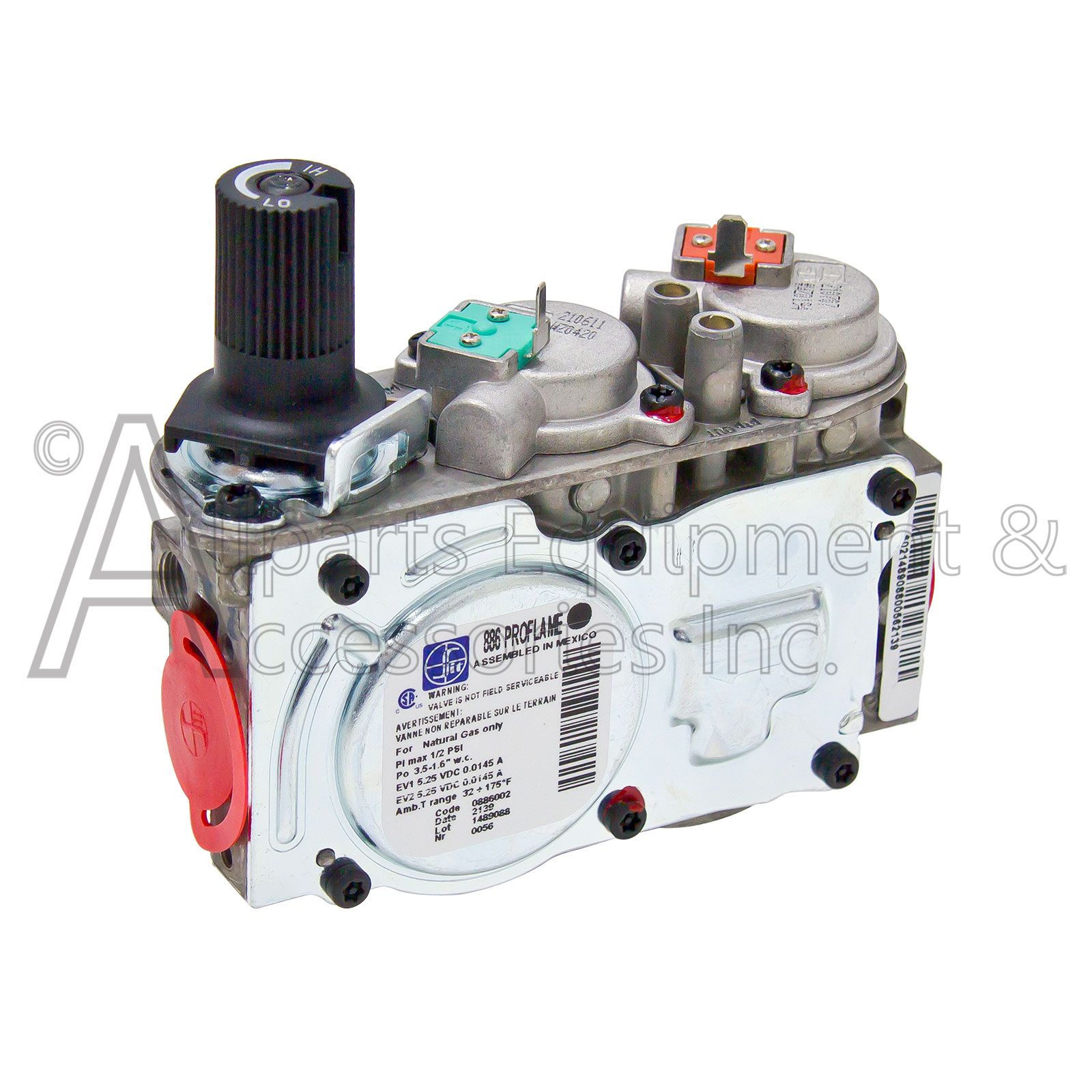

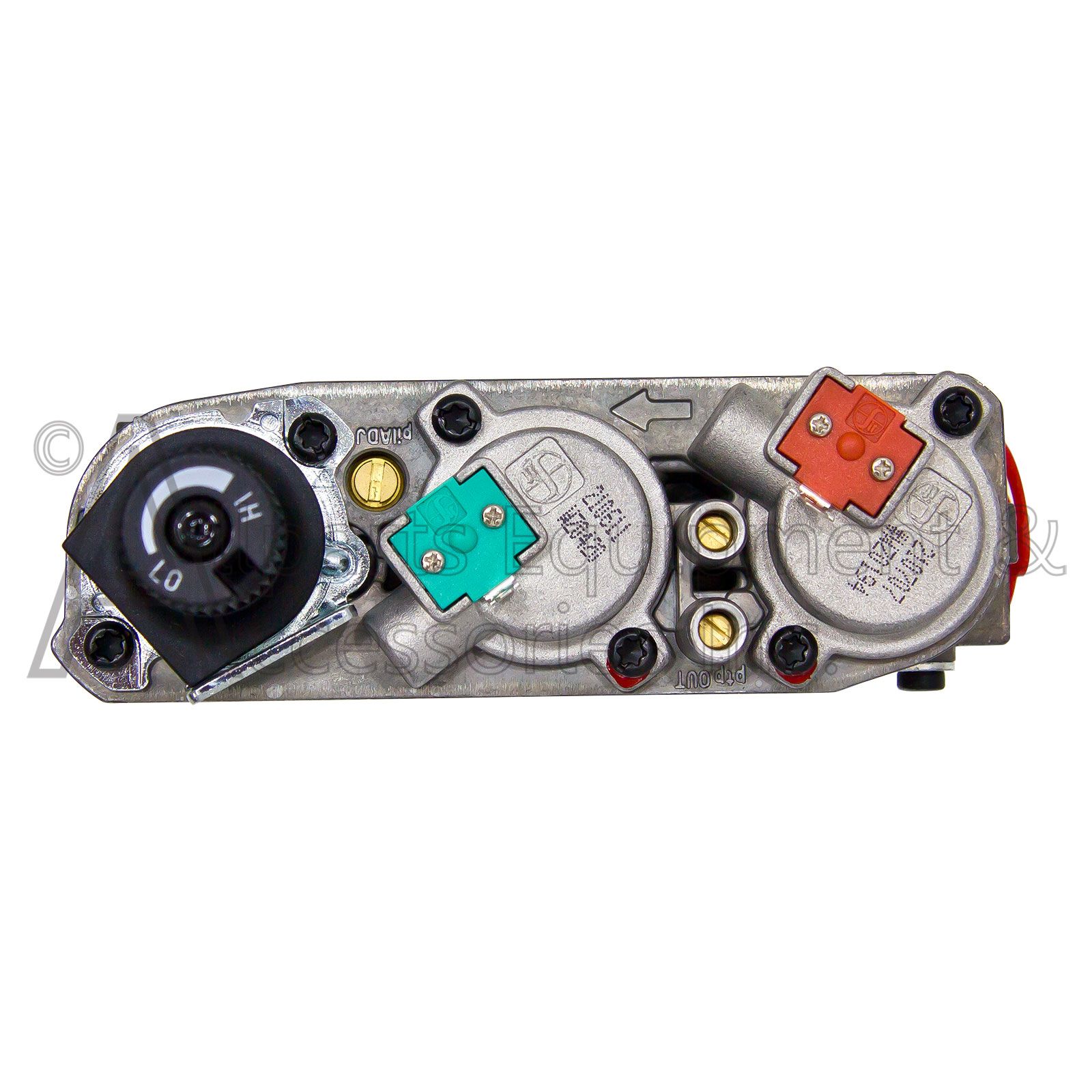

The Napoleon W725-0062 is a direct-vent SIT Proflame 886 series natural gas valve for direct vent gas stoves, fireplaces, and log set inserts.

This natural gas compatible valve is rated for 100,000 BTUs and comes equipped with a reliable electronic ignition.

A HI/LO burner adjustment knob allows the user to manually tweak the pilot burner's strength to fit their needs.

Always Verify the model number of your valve before ordering to ensure compatibility with your natural gas direct vent appliance.


Specifications of the W725-0062 Gas Valve:

  • HI/LO Burner Adjustment with Manually Operated Knob
  • Resilient Aluminum Body Construction
  • Drop-out current Greater of 125mA
  • Maximum @ 1 in. w.c. pressure drop
  • 100,000 BTU per hour Regulation Capacity
  • 5,000 to 195,000 BTU AP per hour

  • Coil resistance: 0.018± 0.003
  • Manual Pressure Set-Point: 3.5” w.c. ± 0.3
  • Range of Adjustment: 3.5” w.c. -1.6” w.c.
  • Natural Gas Inlet Size: 3/8 in. NPT
  • Natural Gas Outlet Size: 3/8 in. NPT
  • Maximum Natural Gas Inlet Pressure: 1/2 PSIG
  • Ambient Operating Temperature Range: 32° to 175° F

It is important to note that the W725-0062 natural gas valve is only intended for use in natural gas appliances.

The natural gas and liquid propane versions of this valve look incredibly similar, so it's crucial to ensure that you have the correct gas valve type for your Napoleon appliance.

Always verify the model number of your valve before ordering to ensure compatibility with your Napoleon natural gas direct vent appliance.
