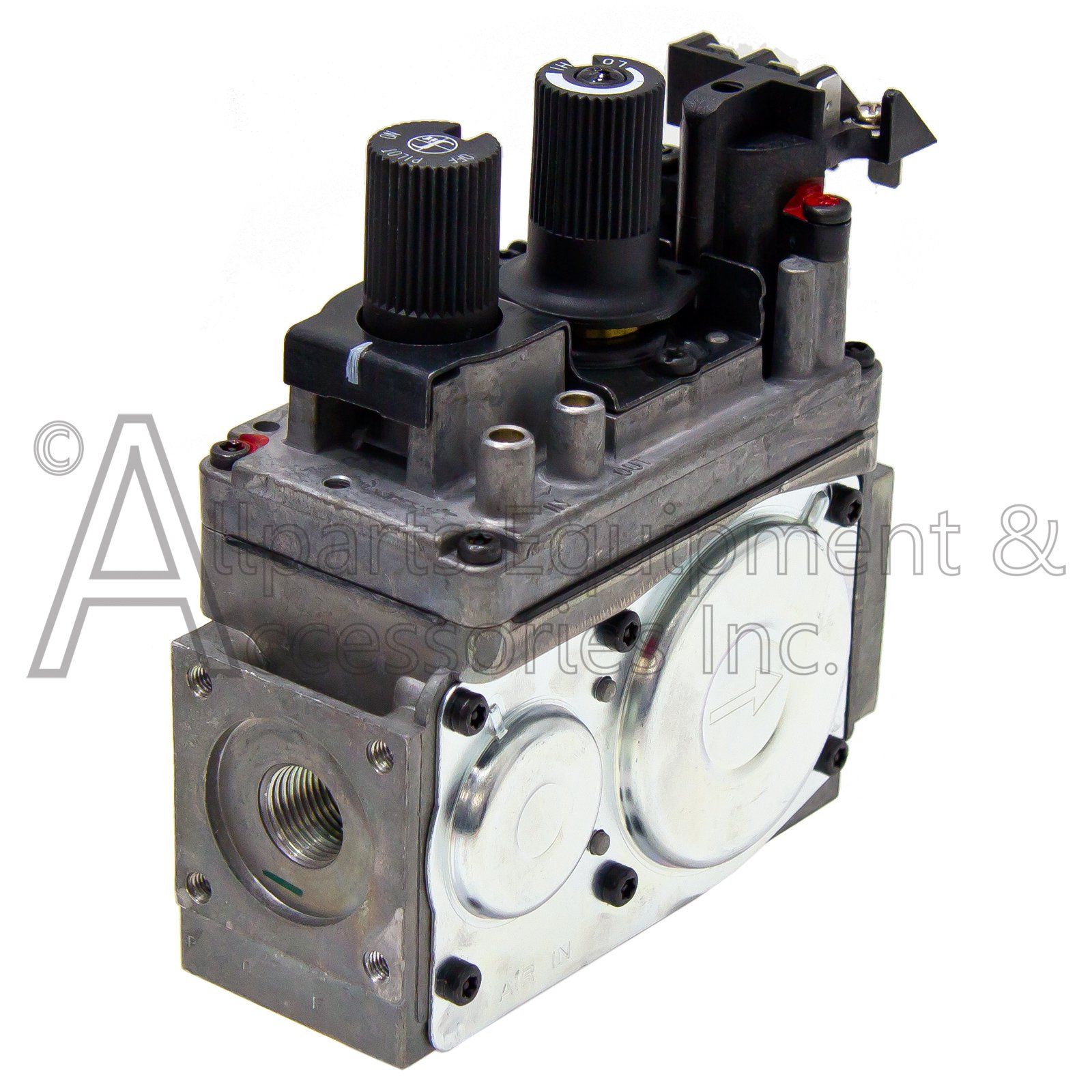

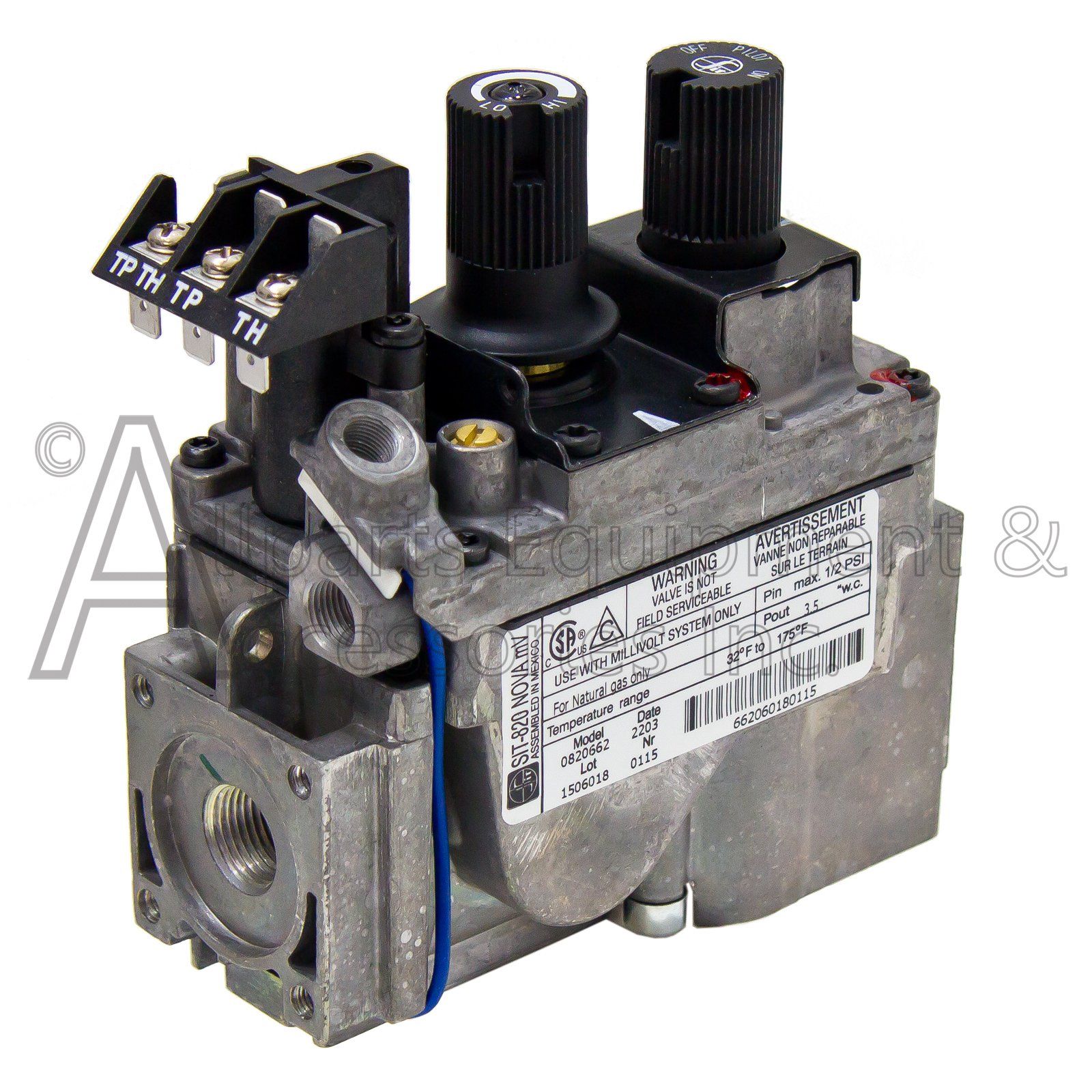

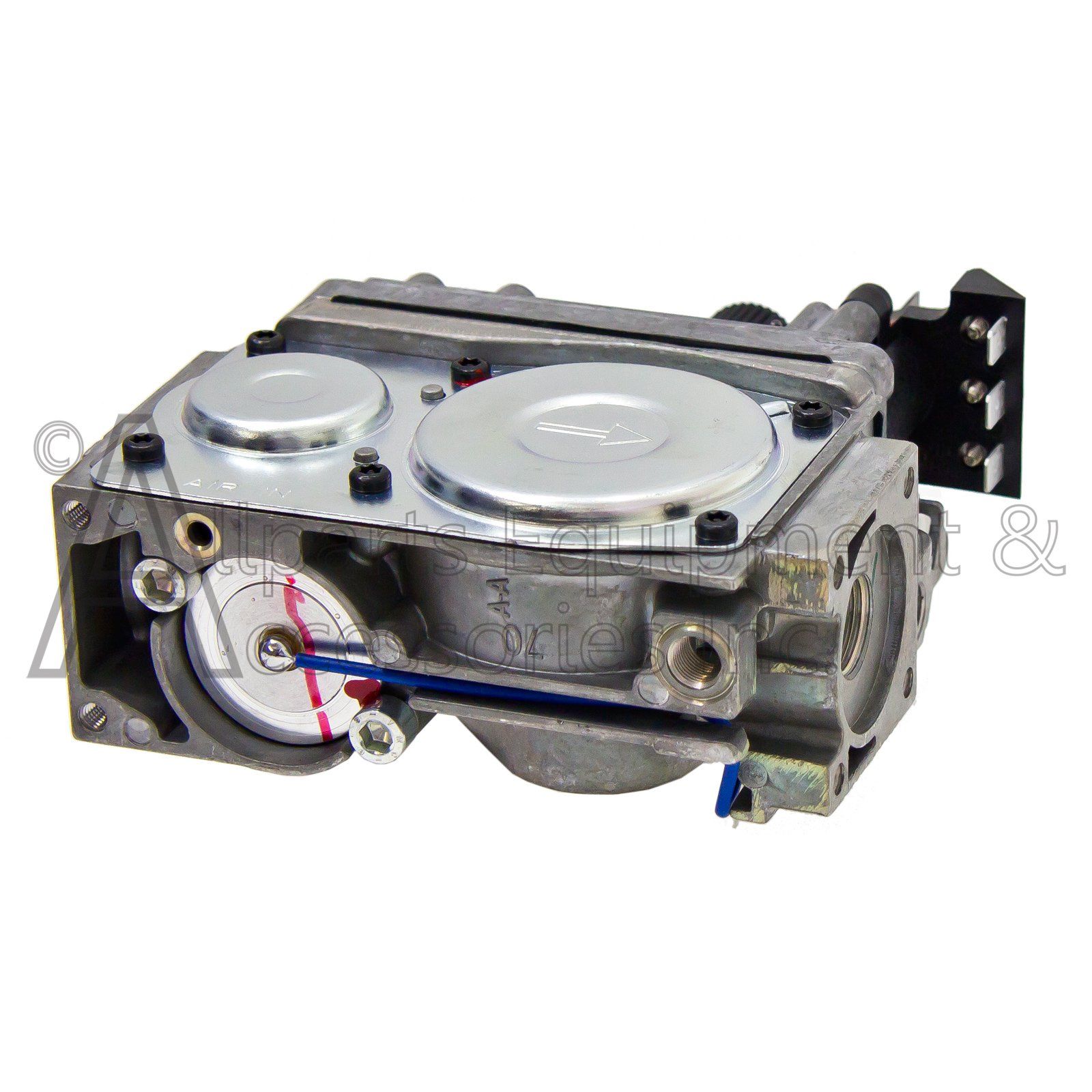

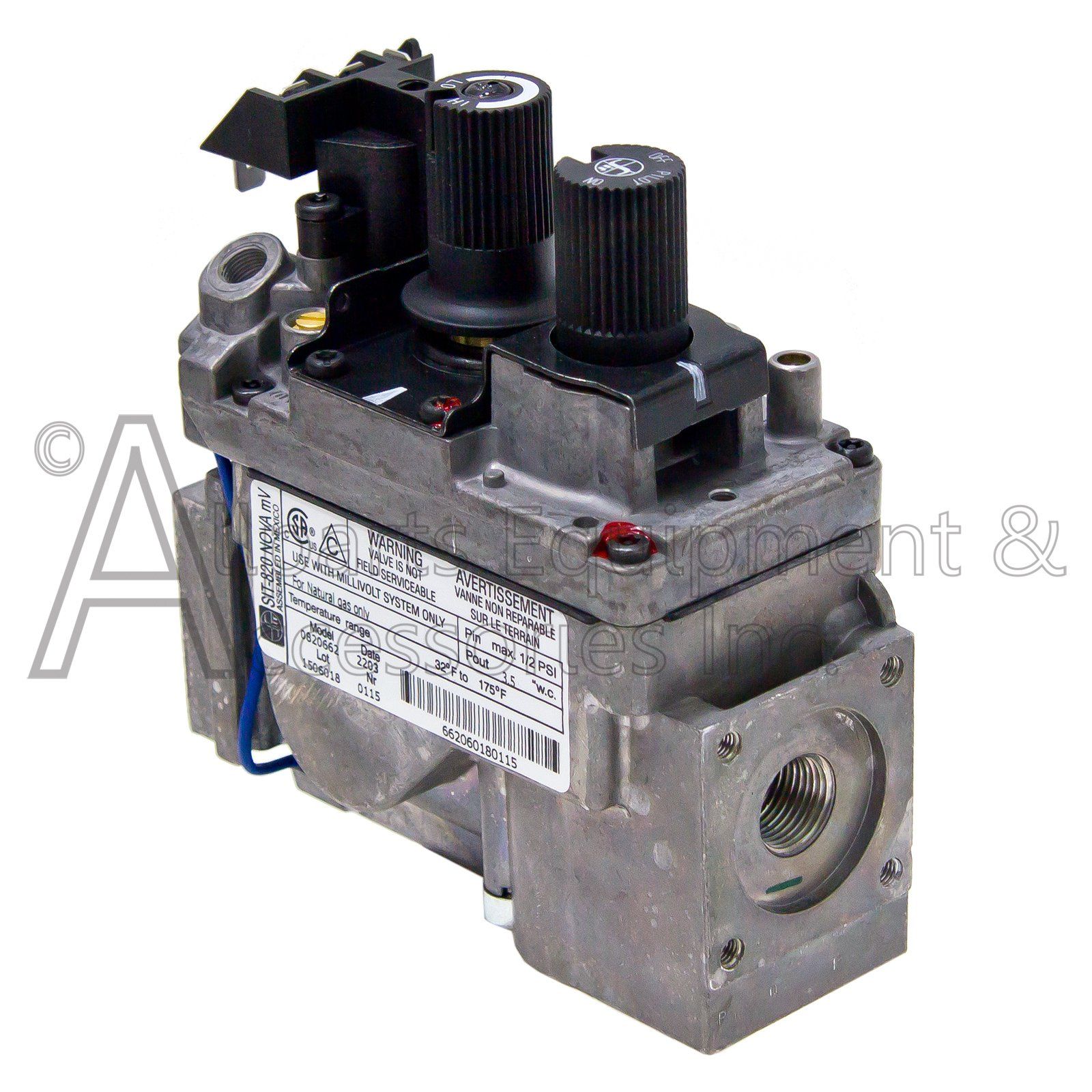

W725-0035 Gas Valve for Napoleon Direct Vent Millivolt Natural Gas Fireplaces

This W725-0035 Napoleon natural gas remote-ready valve is a split-system millivolt control for direct vent natural gas hearth appliances. The W725-0035 includes HI/LO burner adjustment with a manually operated knob.

Part of SIT's 820 Nova series of gas control valves, the W725-0035 is designed for use in many Napoleon direct-vent natural gas appliances, including fireplaces.

This SIT series 820 Nova gas valve is remote-compatible, allowing the W725-0035 to be controlled with a millivolt wall switch or a millivolt remote control system.

SIT's 820 Nova series of gas valves is made up of multiple valves that are virtually identical in design and function.

The W725-0035 is just one kind of valve in this series and should not be used interchangeably with other 820 Nova gas valves.

Please ensure that your gas valve's part number matches the recommended replacement in your appliance's user manual. Attempting to use a different gas valve could pose a serious safety risk and/or damage your natural gas appliance.

The W725-0035 should only ever be used with natural gas appliances.

The Napoleon mV W725-0035 is built to last and easy to install, making it an excellent replacement control valve for natural gas direct vent fireplaces. The W725-0035 is a durable and reliable gas valve that is easy to install and maintain.

Features:

• Compatible with a wide range of Napoleon direct vent natural gas appliances
• Genuine replacement valve for Napoleon natural gas products
• Certified for quality after inspection and testing
• Includes a one-year warranty against manufacturer defects
• Compatible with millivolt control systems

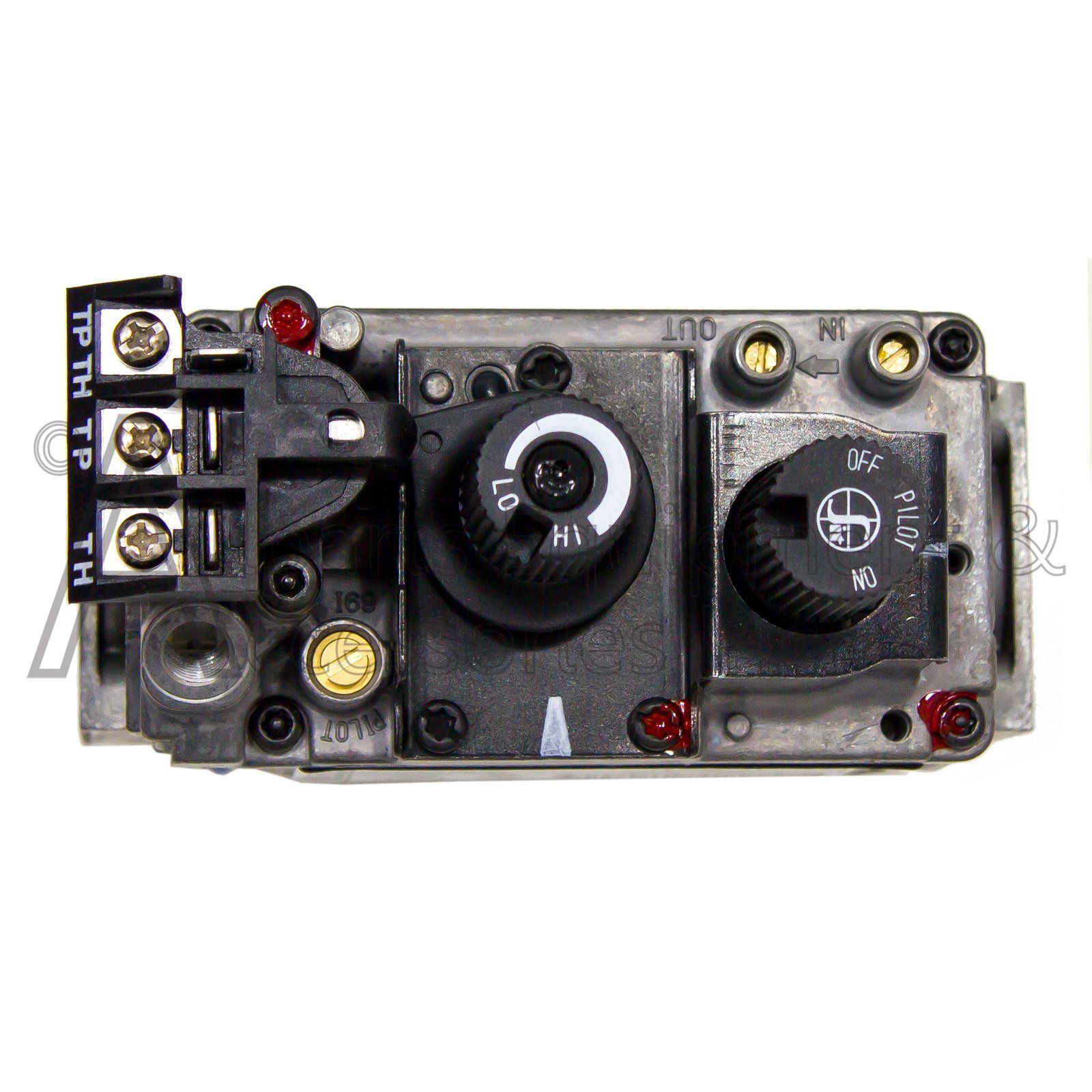

• Easily adjustable flame via the HI/LO burner knob
• Includes a pilot safety valve and a thermocouple safety valve
• Compatible with millivolt wall switch or a similar millivolt remote control system.
• Built to last

• Thermocouple connection:11/32 ASA-DNC
• Gas Type: Natural Gas
• Natural Gas Inlet: 3/8 in. NPT
• Natural Gas Outlet: 3/8 in. NPT
• Pilot Outlet: 7/16 UNS
• Maximum Natural Gas inlet pressure: 1/2 PSIG
• Ambient Operating Temperature: 32° to 175° F
• Maximum @ 1 in. W.C. pressure drop: 100,000 BTU per hour
• Minimum voltage 145mV Coil resistance 2.25±0.5
• Thermo-Electric Unit Hold-in current less than 285Ma
• Drop-out current: > 125mA
• Coil resistance: 0.018± 0.003
• Manual Pressure set-point 3.5” w.c. ± 0.3
• Range of adjustment: 3.5” w.c. -1.3” w.c. Set at 30K btu/hr
• Regulation capacity: 5,000 to 195,000 BTU AP per hour
