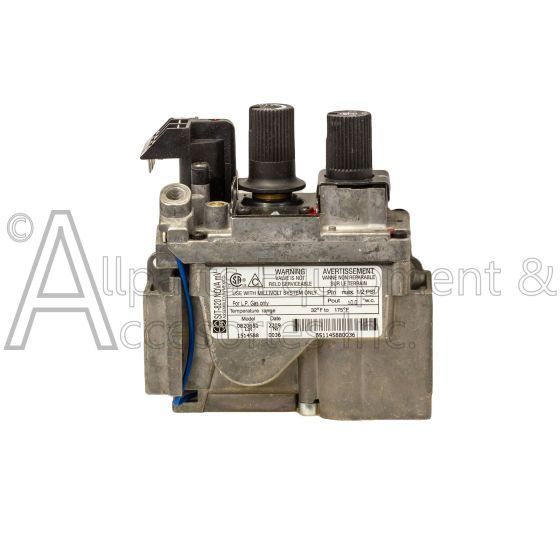

W725-0026 Gas Valve for Napoleon Millivolt Propane Gas Direct Vent Fireplaces

Gas valve W725-0026 is a liquid propane gas (LPG) control valve designed for use with Napoleon direct vent fireplaces. The W725-0026 Napoleon propane control valve is part of SIT's 820 Nova series.

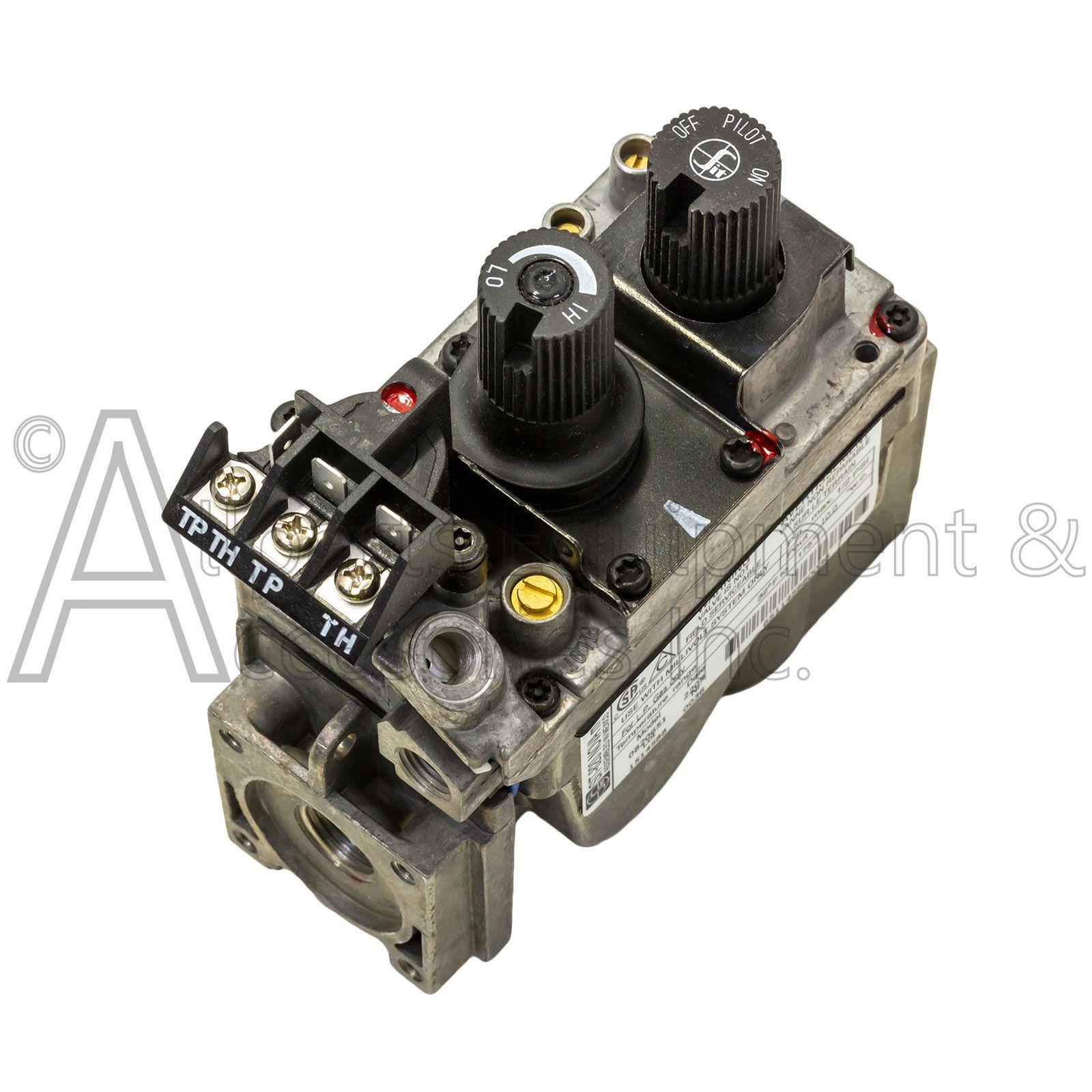

The W725-0026 propane gas control valve features an adjustment millivolt split-system control knob and a HI/LO adjustable pilot flame. The pilot flame is also manually adjustable.

SIT-made control valves are durable, reliable, and CSA certified.

820 Nova Series Service Note:

The Napoleon W725-0026 is part of the 820 Nova series of control valves. This series is made up of hundreds of identical-looking control valves.

It is vital that you use the exact valve specified by your appliance's user manual. Subtle differences in the design of each 820 series valve mean that they cannot always be used interchangeably.

The Napoleon mV W725-0026 control gas valve is an OEM Napoleon part, meaning it makes a great replacement for compatible Napoleon products. The W725-0026 control valve's features cover everything from safety to ease of use.

• Used in a wide range of propane direct vent fireplaces manufactured by Napoleon
• Easy to install OEM replacement part for Napoleon appliances
• A thermopile-triggered automatic shut-off valve keeps operation safe
• Split-system operation compatibility
• HI/LO burner adjustment for changing outlet pressure
• Adjustable millivolt control knob with split-system operation
• Servo-controlled pressure regulation
• Thermoelectric flame failure device helps prevent improper operation
• Built to be durable and reliable
• CSA Certified

• Minimum voltage: 145mV, Coil resistance: 2.25±0.5
• Thermo-Electric Unit Hold-in Current: less than 285Ma
• Drop-out current: Greater than 125mA, Coil resistance: 0.018± 0.003
• Gas type: Propane Gas
• Manual Pressure set-point: 10.0” w.c. ± 0.4
• Range of adjustment: 10.0” w.c. -6.3” w.c. Set at 30K btu/hr
• Thermocouple connection: 11/32 ASA-DNC
• Liquid Propane Gas Inlet and Outlet: 3/8 in.
• Maximum Propane Gas inlet pressure 1/2 PSIG Ambient operating
• Temperature 32° to 175° F
• Maximum @ 1 in. w.c. pressure drop 162,000 BTU per hour Regulation capacity 8,100 to 315,900 BTU AP per hour
• Maximum Inlet Pressure 1/2 PSIG
