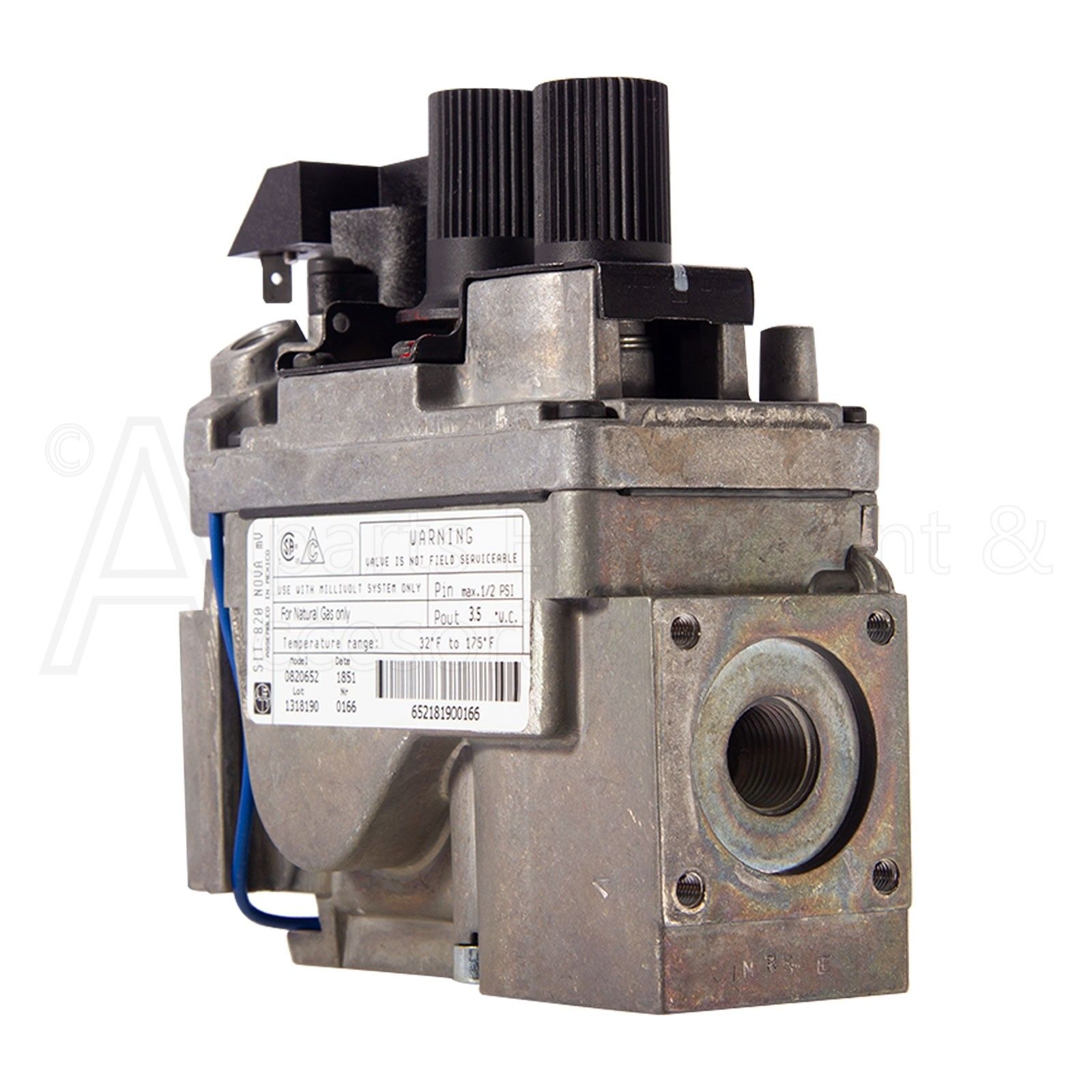

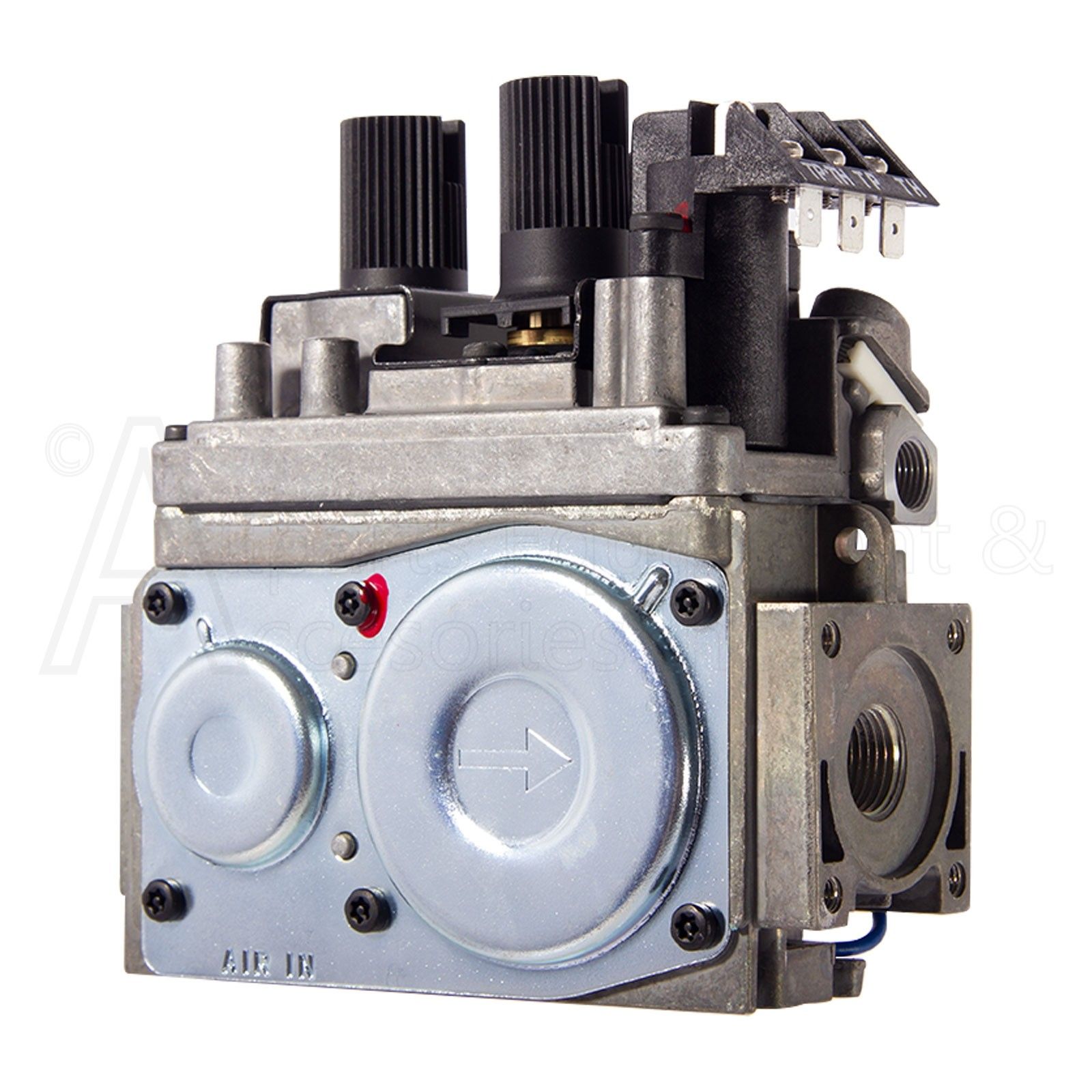

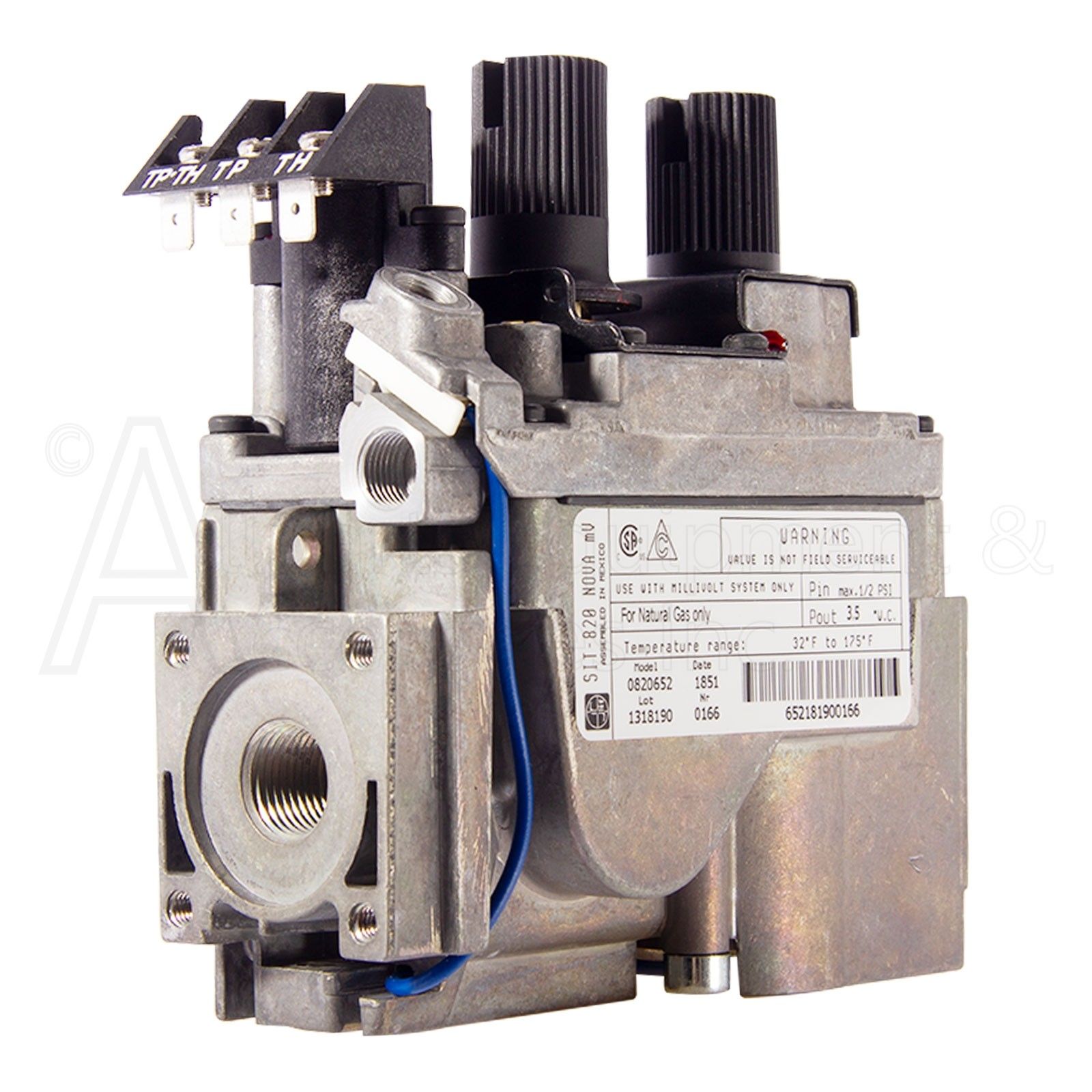

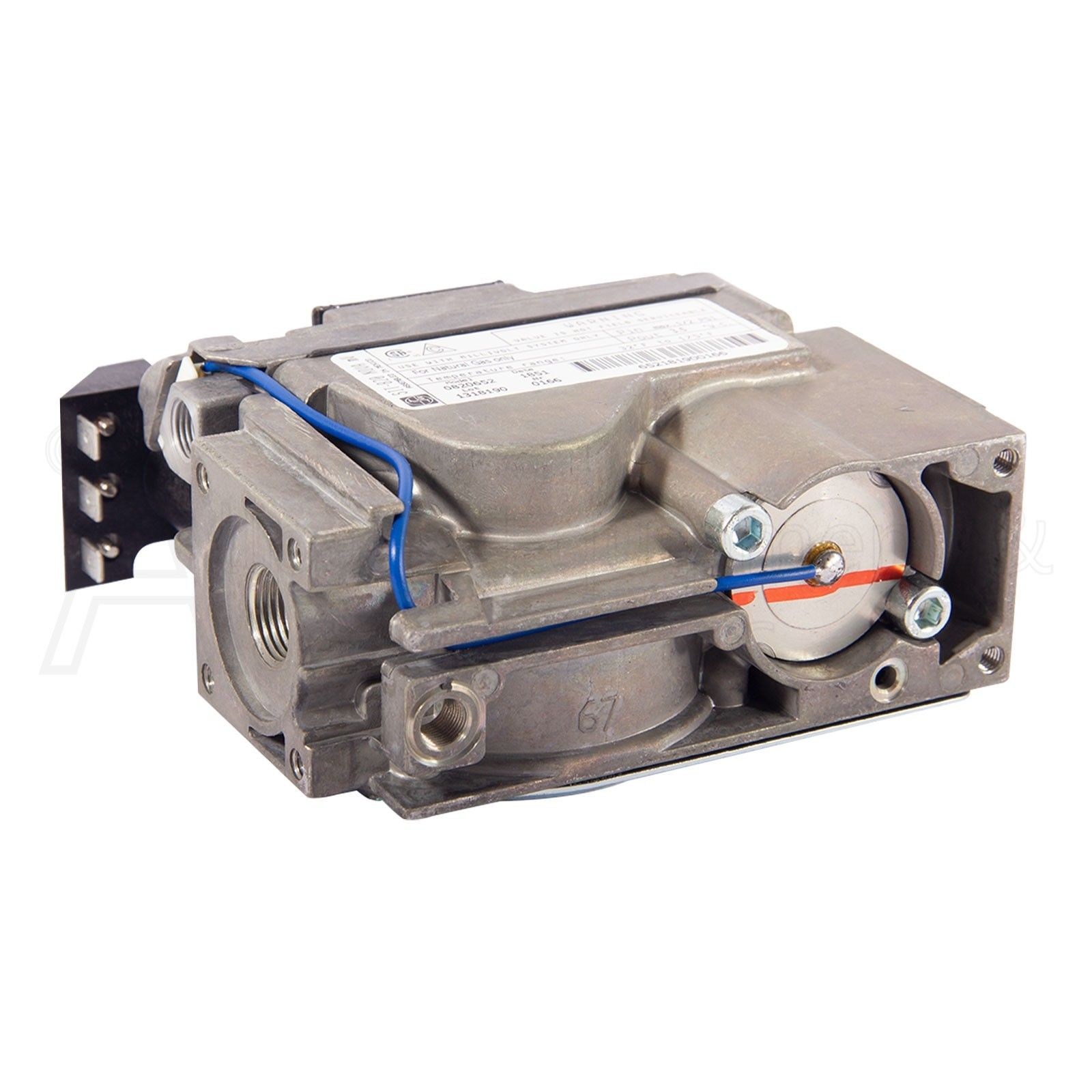

W725-0025 Gas Valve for Napoleon Millivolt Natural Gas Direct Vent Fireplaces
In stock
Part Number
W725-0025
$145.90
The Napoleon W725-0025 Gas valve is a genuine original equipment replacement natural gas for the Napoleon brand hearth products.
This replacement valve is part of the SIT 820 Nova mV series of natural gas valves for direct vent fireplaces.
This replacement valve is part of the SIT 820 Nova mV series of natural gas valves for direct vent fireplaces.
The W725-0025 is suitable for direct-vent natural gas fireplaces, stoves, gas logs, and other compatible appliances.
This SIT series 820 Nova gas valve is remote-compatible. The control valve also features a HI/LO burner adjustment knob with a millivolt split-system control. Napoleon's W725-0025 also features manual variable flame adjustment.
820 Nova Series Service Note:
The Napoleon W725-0025 is part of the 820 Nova series. The 820 NOVA series includes hundreds of gas valves that all look very similar in design and configuration.
While these parts may look similar, it is crucial that only an exact or manufacturer-authorized replacement part is used with your direct vent natural gas appliance.
Using a gas valve not designed for your appliance poses an unnecessary safety risk.
Features and Specifications of Napoleon W725-0025:
The Napoleon MV W725-0025 control gas valve's features make it a great replacement part for compatible direct-vent Napoleon fireplaces.
Features:
- Compatible with a wide range of Napoleon direct vent natural gas fireplaces
- Easy to install
- Genuine Napoleon fireplace replacement part
- Certified for quality after inspection and testing
- Includes a one-year warranty against manufacturer defects
- Remote control compatible
- Easily adjustable flame via the HI/LO burner knob
- Includes a pilot safety valve and a thermocouple safety valve
- Compatible with millivolt wall switch or a similar millivolt remote control system.
- Durable and reliable, built to last
Specifications:
- Thermocouple connection:11/32 ASA-DNC
- Gas Type: Natural Gas
- Natural Gas Inlet: 3/8 in. NPT
- Natural Gas Outlet: 3/8 in. NPT
- Pilot Outlet: 7/16 UNS
- Minimum voltage 145mV Coil resistance 2.25±0.5
- Thermo-Electric Unit Hold-in current less than 285Ma
- Drop-out current: > 125mA
- Coil resistance: 0.018± 0.003
- Manual Pressure set-point 3.5” w.c. ± 0.3
- Range of adjustment: 3.5” w.c. -1.6” w.c. Set at 30K btu/hr
- Maximum Natural Gas inlet pressure: 1/2 PSIG
- Ambient Operating Temperature: 32° to 175° F
- Maximum @ 1 in. W.C. pressure drop: 100,000 BTU per hour
- Regulation capacity: 5,000 to 195,000 BTU AP per hour
For further questions or to verify your application please contact us at customerservice@allpartsinc.com or by call/text at 269-447-0412.
The following is a partial list of Napoleon direct-vent fireplaces that the W725-0025 natural gas valve fits:
| B30 Ascent 30 |
| B36 Ascent 36 |
| B46 Ascent 46 |
| BGD36CF |
| BGD40 |
| BGD42CF |
| BGNV36 |
| GB20 |
| GD16 |
| GD25 1 |
| GD33 |
| GD40 |
| GD70 StarFire Series 1S & -2S 2 |
| GDI30 |
| GS3500 |
| B35 Ascent 35 |
| B42 Ascent 42 |
| BGD36 |
| BGD36NTR |
| BGD42 |
| BGD48 |
| BGNV40 |
| GD15 |
| GD17 |
| GD27 |
| GD36 |
| GD45 |
| GD3200 3 |
| GL 18/24/30 |
| GX36-1 Ascent X |
1 After Serial # 000852
2 After Serial # 10101
3 After Serial # 13023
