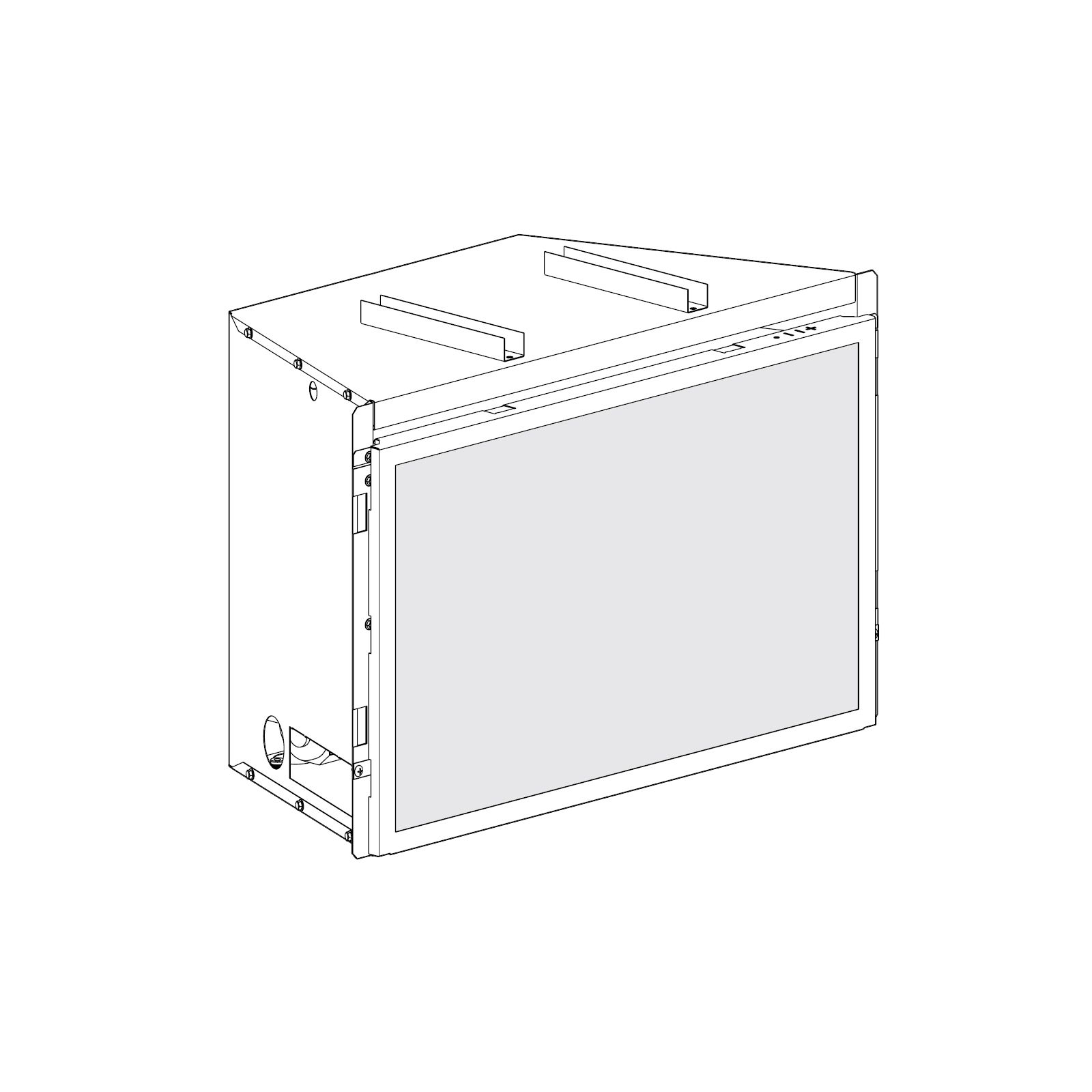

VFPC20IN33P-1 Empire Ventless Liquid Propane Fireplace Insert - 20,000 BTUs

VFPC20IN33P-1 is a ventless liquid propane gas fireplace insert from Empire Comfort Systems. This insert requires a compatible mantel to operate. The VFPC20IN33P-1 is only for use with liquid propane gas. Using natural gas with the VFPC20IN33P-1 can lead to damage to your insert.

Vent-free units do not require any air intake or exhaust output vents to the outside. However, they do have specific air flow and clearance requirements that should be paid carful attention during installation. Refer to the VFPC20IN33P-1's user manual for further information.

The VFPC20IN33P-1 fireplace insert is remote-ready and features a millivolt LPG valve, a standing pilot, and a Piezo ignitor. These components allow the VFPC20IN33P-1 to be remotely opened and closed by using a compatible On/Off remote, without compromising the pilot flame.

A regulator is also part of this liquid propane fireplace's pilot system.

A list of manufacturer-approved replacement parts and accessories can be found in the owner's manual.

Specifications

Gas Type: Liquid Propane Gas

Max. BTU Input: 20,000 BTU/hr.

Min. BTU Input: 15,000 BTU/hr.

Orifice Size: #55

Air Shutter Type: Fully Open

Min/Max Gas Pressure: 4.9 in. / 13 in. WC

Insert Width: 29 ¹/₄ in.

Insert Height: 19 ¹/₈ in.

Insert Depth: 13 ⁹/₁₆ in.
