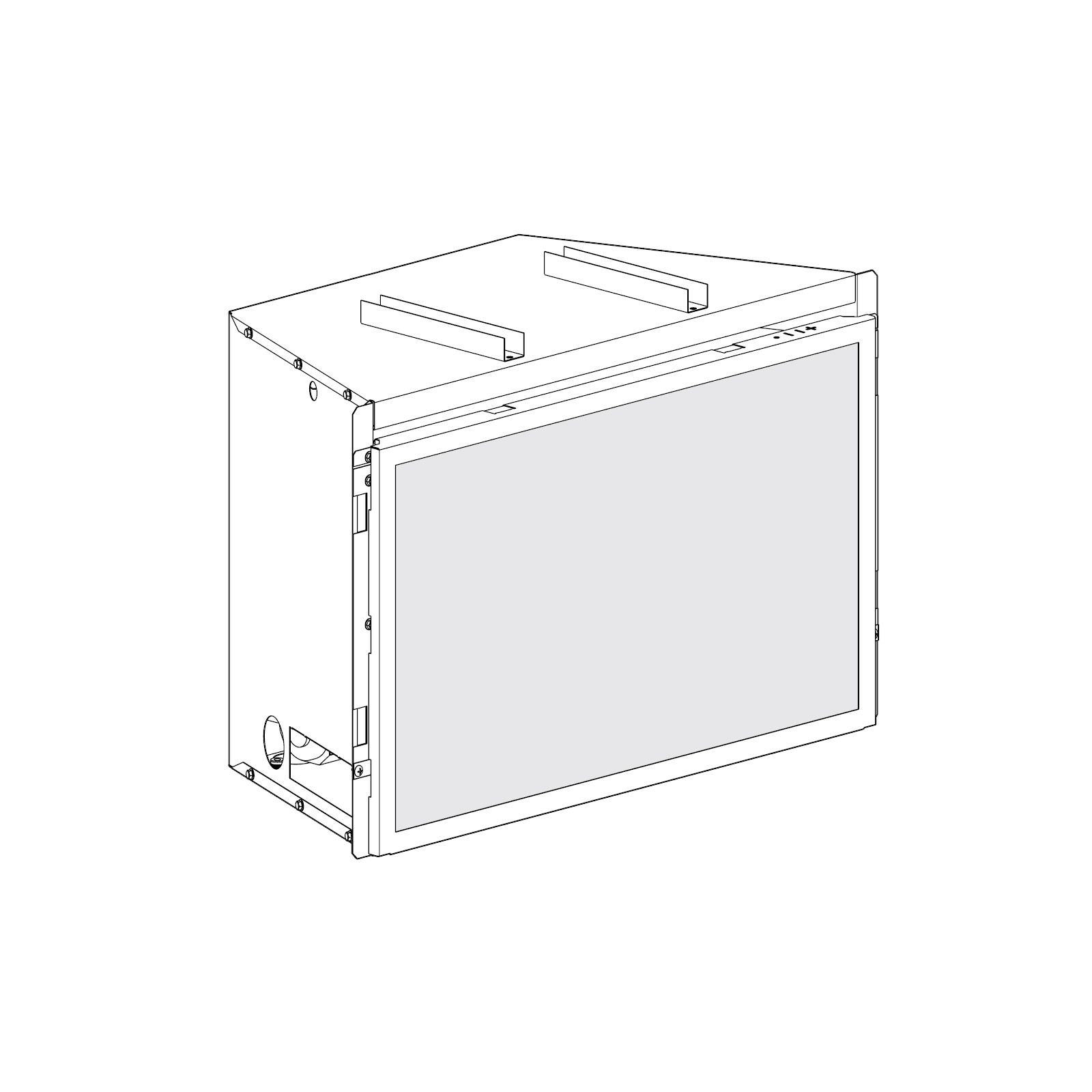

VFPC20IN33N-1 Empire Ventless Natural Gas Fireplace Insert - 20,000 BTUs

VFPC20IN33N-1 is a vent-free natural gas fireplace insert from Empire Comfort Systems. This insert model requires a compatible mantel to operate. The VFPC20IN33N-1 should only be operated with natural gas. Using liquid propane or any other fuel type could lead to accidental damage to the unit.

Vent-free units do not require any air intake or exhaust output vents to the outside. However, they do have specific air flow and clearance requirements that should be paid carful attention during installation. Refer to the VFPC20IN33N-1's user manual for further information.

The VFPC20IN33N-1 fireplace insert is a remote-ready millivolt system with a standing pilot and Piezo ignitor. This allows the main natural gas line in the VFPC20IN33N-1 to be remotely opened and closed by using a compatible On/Off remote, without compromising the pilot flame.

A regulator is also part of this natural gas fireplace's pilot system.

A list of manufacturer-approved replacement parts and accessories can be found in the owner's manual.

Specifications

Gas Type: Natural Gas

Max. BTU Input: 20,000 BTU/hr.

Min. BTU Input: 14,000 BTU/hr.

Orifice Size: 2.1mm

Air Shutter Type: ¹/₈ in. Open

Min/Max Gas Pressure: 4.5 in. / 10.5 in. WC

Insert Width: 29 ¹/₄ in.

Insert Height: 19 ¹/₈ in.

Insert Depth: 13 ⁹/₁₆ in.
