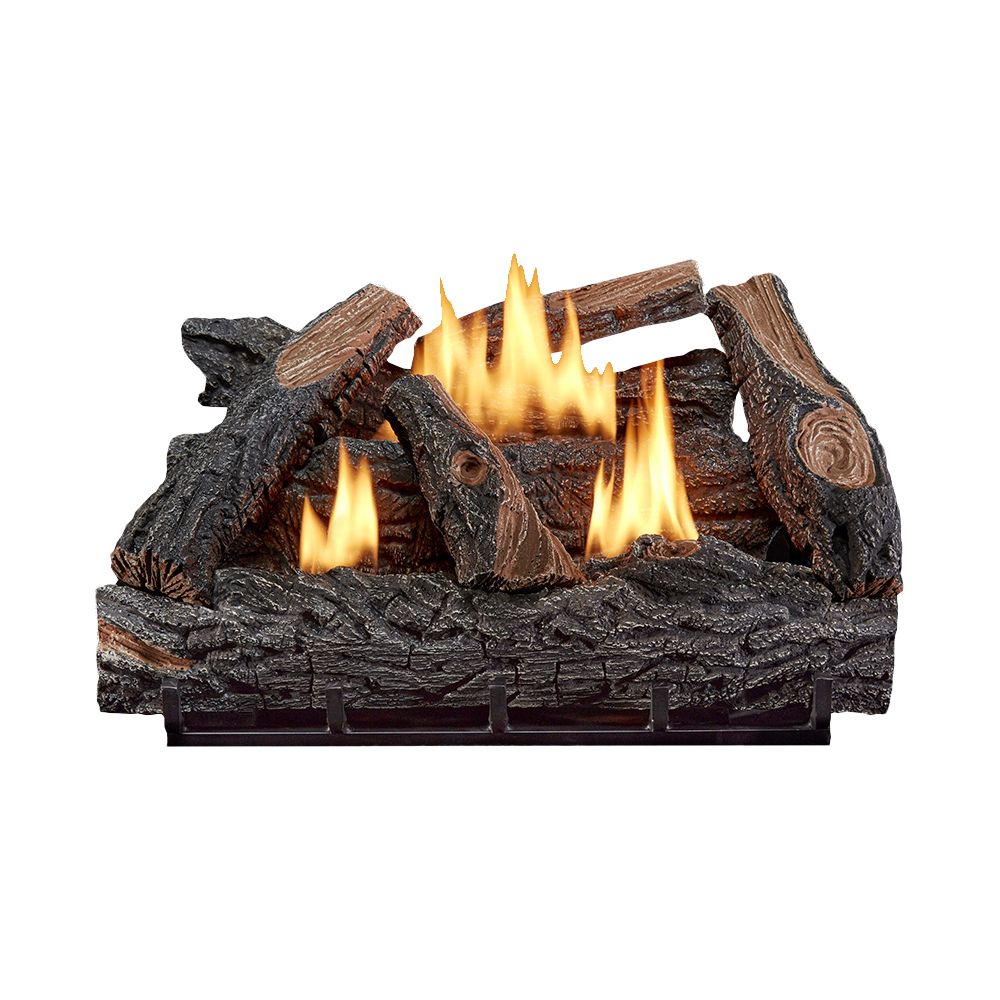

VFL24T HearthSense 24 in. Vent-Free Gas Log Set with Thermostat Control

The VFL24T is a HearthSense gas log set that has an input rating of 32,000 BTU/hr. This gas log set is configurable for either natural gas or liquid propane gas.

Gas log set VFL24T features thermostat heat control, which automatically cycles the main burner to maintain the desired room temperature.

An oxygen depletion sensing (ODS) safety shutoff pilot is also included, which shuts down the heater is there isn't enough fresh air detected for operation.

The Piezo ignition system in the VFL24T uses AAA batteries.

Features of the VFL24T Gas Log Set

• Keeps a consistent desired temperature using thermostat heat control.
• Equipped with an electronic Piezo ignition system that runs on AAA batteries.
• ODS Pilot with safety shutoff system detects if there isn't proper fresh air for the unit to run.
• Uses liquid propane gas when at factory-standard configuration. A qualified installer can switch the unit to natural gas.
• Vent-free operation draws the air for combustion from the room.

Specifications

Gas Type: Natural Gas or Liquid Propane Gas

Heat Rating: 32,000 BTU/Hr.

Ignition Type: Electronic Piezo

Dimensions:

• Height: 15 in.
• Width: 24 in.
• Depth: 12 in.
• Weight: ~45 in.

Natural Gas Pressure Specs:

• Manifold Pressure: 4 in. W.C
• Max. Inlet Pressure: 9.5 in. W.C
• Min. Inlet Pressure: 5 in. W.C

Liquid Propane Gas Pressure Specs:

• Manifold Pressure: 9.5 in. W.C
• Max. Inlet Pressure: 14 in. W.C
• Min. Inlet Pressure: 11 in. W.C
