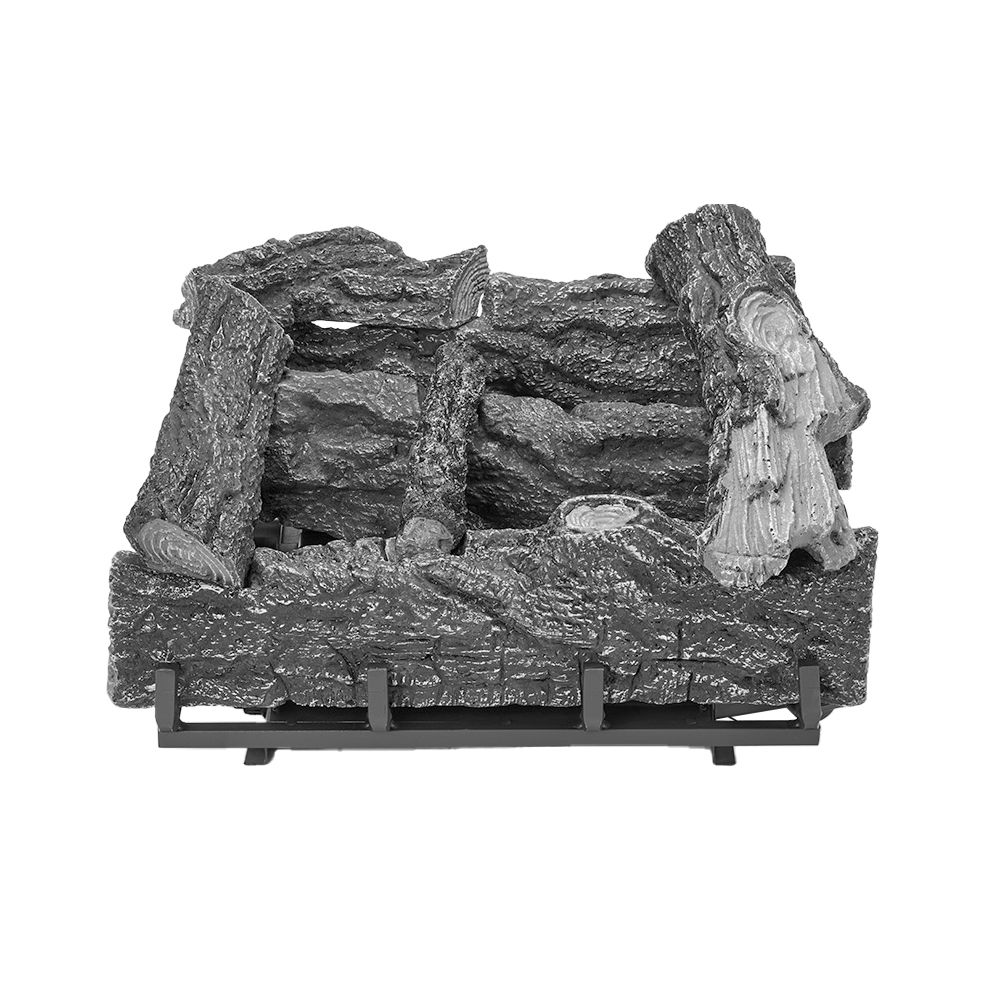

VFL18M HearthSense 18 in. Vent-Free Gas Log Set

The VFL18M is an 18 in. HearthSense gas log set that features an electronic piezo ignition. This gas log set has an input rating of 30,000 BTU/hr. and is configurable for either natural gas or liquid propane gas.

Gas log set VFL18M features an oxygen depletion sensing (ODS) safety shutoff system that shuts down the heater is there isn't enough fresh air detected for operation.

It also includes a battery-powered Piezo ignition system that uses AAA batteries.

Features of the VFL18M Gas Log Set

• Equipped with an electronic Piezo ignition system that runs on AAA batteries.
• ODS Pilot with safety shutoff system detects if there isn't proper fresh air for the unit to run.
• Configured for use with liquid propane gas by default. A qualified installer can switch the unit to natural gas.
• Ventless operation draws the air for combustion from the room.

Specifications

Gas Type: Natural Gas or Liquid Propane Gas

Heat Rating: 30,000 BTU/Hr.

Ignition Type: Electronic Piezo

Dimensions:

• Height: 12.75 in.
• Width: 19 in.
• Depth: 12.5 in.
• Weight: 35.3 in.

Natural Gas Pressure Specs:

• Manifold Pressure: 4 in. W.C
• Max. Inlet Pressure: 9.5 in. W.C
• Min. Inlet Pressure: 5 in. W.C

Liquid Propane Gas Pressure Specs:

• Manifold Pressure: 9.5 in. W.C
• Max. Inlet Pressure: 14 in. W.C
• Min. Inlet Pressure: 11 in. W.C
