7101331 VALVE THERMAL 1/2" NPT
In stock
Part Number
7101331
$11.10

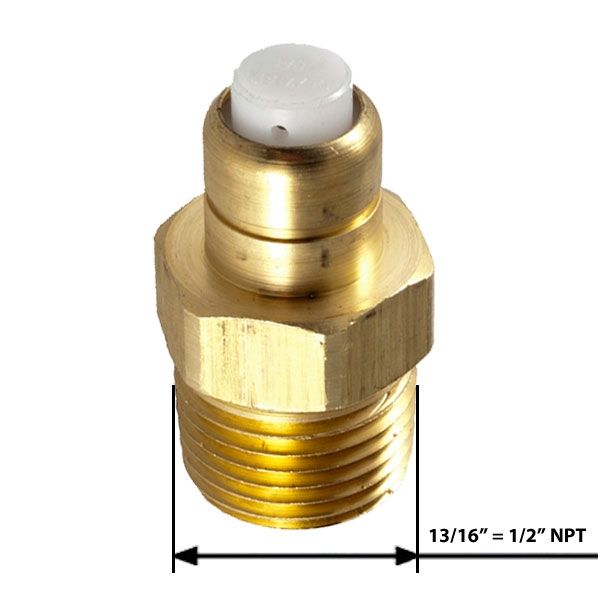

7101331 Thermal Relief Valve is a 1/2" NPT that is designed to remove hot fluid from the inlet chamber of the pump.
This TRV will automatically reset once the fluid temperature is below the set point of the valve.
7101331 is designed to help prolong seal life of the high pressure pump.
| SPECIFICATIONS | ||
| U.S | Metric | |
| Flow | 8 GPM | 30 L/min |
| Pressure (Maximum) | 90 PSI | 6.2 bar |
| Continuous Temperature | 140 ºF | 60 ºC |
| Inlet | 1/2" NPT | |
| Weight | 0.3 lbs | 0.14 kg |
The Automatic Thermal Relief Valve is a must for any system utilizing a closed loop bypass line or internal bypass.
The valve is designed to protect your pump and accessories against extreme heat when the pump is in bypass.
When the temperature of the water in the bypass line reaches the preset temperature of the valve a small amount of hot water is released which is replaced by cooler supply water.
This in turn lowers the temperature of the water in the bypass line thus signaling the valve to close. NOTE: The thermal relief valve works most effectively on pumping systems having positive inlet pressures.
The valve is designed to protect your pump and accessories against extreme heat when the pump is in bypass.
When the temperature of the water in the bypass line reaches the preset temperature of the valve a small amount of hot water is released which is replaced by cooler supply water.
This in turn lowers the temperature of the water in the bypass line thus signaling the valve to close. NOTE: The thermal relief valve works most effectively on pumping systems having positive inlet pressures.
