OEM Graphoil Valve Plate to Head Gasket for Air Compressor Pumps
OEM Graphoil Valve Plate to Head Gasket for Air Compressor Pumps

5140118-80 OEM Graphoil Valve Plate to Head Gasket for Air Compressor Pumps

In stock

$8.35

In stock

Part Number: 5140118-80
Compatible Brands: DeVilbiss
Shipping Weight: 0.3125 Lbs

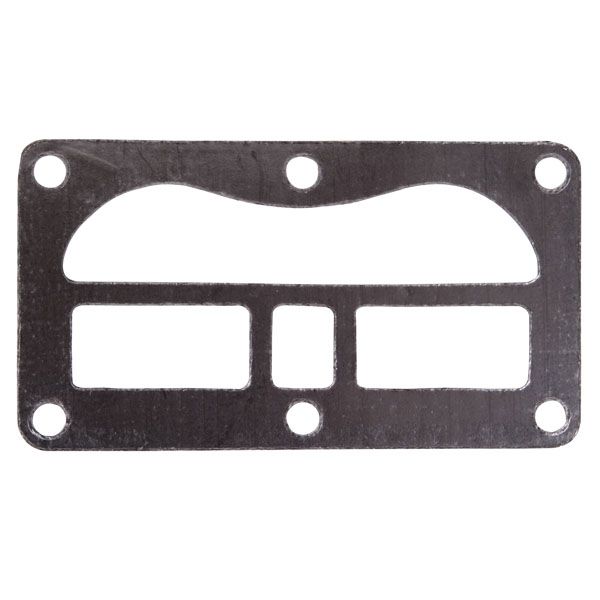

The 5140118-80 valve plate to head gasket is an OEM replacement gasket used at the sealing surface between the cylinder head assembly and valve plate on compatible air compressor pump assemblies. This gasket helps create a high-pressure seal to reduce air leakage and support proper compressor pump performance.

This 5140118-80 gasket uses Graphoil reinforced wire mesh construction. The reinforced design helps address compression and brittleness concerns associated with earlier non-wire-mesh gasket styles, which could lead to air leaks over time.

5140118-80 Valve Plate to Head Gasket Specifications

  • OEM: Yes
  • Gasket Position: Valve plate to cylinder head
  • Construction: Graphoil reinforced wire mesh
  • Seal Type: High-pressure head-to-valve-plate gasket
  • Torque Reference: 25 ft-lbs, 30 ft-lbs, and 32.5 ft-lbs staged torque sequence
  • Maximum Final Torque: 32.5 ft-lbs

5140118-80 Air Compressor Gasket Key Features

  • OEM replacement gasket for the valve plate-to-head sealing surface
  • Reinforced wire mesh construction helps resist over-compression compared with earlier gasket designs
  • Designed to help maintain a sealed high-pressure air path between the head and valve plate
  • Graphoil gasket material supports durability in air compressor pump head service

Need Help? Call us:

1-269-685-4123

For availability, please text:

1-269-447-0412

Compatible Models

The 5140118-80 valve plate to head gasket is known to properly fit and function with the following partial list of air compressors:

DeVilbiss Air Compressors

  • DeVilbiss 66-750 Type 0
  • DeVilbiss AC-0171
  • DeVilbiss AC-0171-1
  • DeVilbiss AC-0336
  • DeVilbiss AC-0336-1
  • DeVilbiss ACBL320 Type 0
  • DeVilbiss ACBL320 Type 2
  • DeVilbiss ACBL320 Type 3
  • DeVilbiss ACBL320 Type 4
  • DeVilbiss ACBL520 Type 0
  • DeVilbiss ACBL520 Type 1
  • DeVilbiss ACBL530VP Type 2
  • DeVilbiss ACBL530VP Type 3
  • DeVilbiss ACBL530VP Type 4
  • DeVilbiss ACBL5G20 Type 0
  • DeVilbiss ACBL5G20 Type 2
  • DeVilbiss ACBL5G20 Type 3
  • DeVilbiss ACBL5G20HP Type 0
  • DeVilbiss ACBL660V Type 0
  • DeVilbiss ACBL660V Type 1
  • DeVilbiss ACBL760V Type 0
  • DeVilbiss ACSL530RVP Type 3
  • DeVilbiss AFL2512 Type 0
  • DeVilbiss AFL2512 Type 1
  • DeVilbiss AFL2520 Type 0
  • DeVilbiss AFL2520 Type 1
  • DeVilbiss AFL320 Type 0
  • DeVilbiss AFL320 Type 1
  • DeVilbiss AFL520 Type 0
  • DeVilbiss AFL520 Type 1
  • DeVilbiss AFL560V Type 1
  • DeVilbiss AFL560V Type 2
  • DeVilbiss AFL560V Type 3
  • DeVilbiss AFL5G20 Type 0
  • DeVilbiss AFL660V Type 0
  • DeVilbiss AFL660V Type 1
  • DeVilbiss ATCL4520 Type 0
  • DeVilbiss ATCL4520 Type 2
  • DeVilbiss BACL4520 Type 0
  • DeVilbiss BACL4520 Type 2
  • DeVilbiss CAC-4029
  • DeVilbiss CAC-4029-1
  • DeVilbiss D22623
  • DeVilbiss D22624
  • DeVilbiss D22625
  • DeVilbiss D22629
  • DeVilbiss DAC-4026
  • DeVilbiss DAC-4026-1
  • DeVilbiss EXL5020 Type 0
  • DeVilbiss EXL6560V Type 0
  • DeVilbiss EXLC5G20 Type 0
  • DeVilbiss EXLC7060V Type 0
  • DeVilbiss HL6560V Type 0
  • DeVilbiss HL6560V Type 1
  • DeVilbiss HL7060V Type 0
  • DeVilbiss IMCL4520 Type 0
  • DeVilbiss IMCL4520 Type 2
  • DeVilbiss IR25E20AD Type 0
  • DeVilbiss IR35E20AD Type 1
  • DeVilbiss IR35E20AD Type 2
  • DeVilbiss IR4E20AD Type 0
  • DeVilbiss IR5E20AD Type 0
  • DeVilbiss IR5E20AD Type 1
  • DeVilbiss IR5E20AD Type 2
  • DeVilbiss IR5E30AD Type 0
  • DeVilbiss IR5E30AD Type 1
  • DeVilbiss IR5E30AD Type 2
  • DeVilbiss IR5E60VAD Type 0
  • DeVilbiss IR5E60VAD Type 1
  • DeVilbiss IR5G20AD Type 0
  • DeVilbiss IR6E60VAD Type 0
  • DeVilbiss IRC4E20AD Type 0
  • DeVilbiss IRC4E20AD Type 1
  • DeVilbiss IRC5E20AD Type 0
  • DeVilbiss IRC5E20AD Type 1
  • DeVilbiss IRC5E60VAD Type 0
  • DeVilbiss IRC5E60VAD Type 1
  • DeVilbiss IRC6E60VAD Type 0
  • DeVilbiss IRL5020 Type 0
  • DeVilbiss IRL5G20 Type 0
  • DeVilbiss IRL5G20 Type 2
  • DeVilbiss IRL5G20 Type 3
  • DeVilbiss IRL6520 Type 0
  • DeVilbiss IRL6530 Type 0
  • DeVilbiss IRL6530 Type 1
  • DeVilbiss IRL6560V Type 0
  • DeVilbiss IRLC5020 Type 0
  • DeVilbiss IRLC6520 Type 0
  • DeVilbiss IRLC6560V Type 0
  • DeVilbiss IRLC6560V Type 1
  • DeVilbiss L2512 Type 0
  • DeVilbiss L2512 Type 1
  • DeVilbiss L2520 Type 0
  • DeVilbiss L2520 Type 1
  • DeVilbiss L320 Type 0
  • DeVilbiss L320 Type 1
  • DeVilbiss L320 Type 2
  • DeVilbiss L320 Type 3
  • DeVilbiss L320 Type 4
  • DeVilbiss L420 Type 0
  • DeVilbiss L5020 Type 0
  • DeVilbiss L520 Type 0
  • DeVilbiss L520 Type 1
  • DeVilbiss L520 Type 2
  • DeVilbiss L530 Type 0
  • DeVilbiss L530 Type 1
  • DeVilbiss L560V Type 0
  • DeVilbiss L560V Type 1
  • DeVilbiss L560V Type 2
  • DeVilbiss L560V Type 3
  • DeVilbiss L5G20 Type 0
  • DeVilbiss L5G20 Type 2
  • DeVilbiss L5G20 Type 3
  • DeVilbiss L6520 Type 0
  • DeVilbiss L6530 Type 0
  • DeVilbiss L6530 Type 1
  • DeVilbiss L6560V Type 0
  • DeVilbiss L660V Type 0
  • DeVilbiss L660V Type 1
  • DeVilbiss L660V Type 2
  • DeVilbiss L660V Type 3
  • DeVilbiss N076027
  • DeVilbiss PALC520 Type 0
  • DeVilbiss PALC520 Type 1
  • DeVilbiss PALC560V Type 1
  • DeVilbiss PALC6520 Type 0
  • DeVilbiss PALC6560V Type 0
  • DeVilbiss PALC6560V Type 1
  • DeVilbiss PALC7060V Type 0
  • DeVilbiss PRL5020 Type 0
  • DeVilbiss PRLC5020 Type 0
  • DeVilbiss RA4E20AD Type 0
  • DeVilbiss RA5E20AD Type 0
  • DeVilbiss RA5E20AD Type 1
  • DeVilbiss RA5E20AD Type 2
  • DeVilbiss RA5E60VAD Type 0
  • DeVilbiss RA5E60VAD Type 1
  • DeVilbiss RA6E60VAD Type 0
  • DeVilbiss RAC5E20AD Type 0
  • DeVilbiss RAC5E20AD Type 1
  • DeVilbiss RAC5E60VAD Type 0
  • DeVilbiss RAC5E60VAD Type 1
  • DeVilbiss RAL5020 Type 0
  • DeVilbiss RAL5G20 Type 0
  • DeVilbiss RAL5G20 Type 2
  • DeVilbiss RAL5G20 Type 3
  • DeVilbiss RAL6520 Type 0
  • DeVilbiss RAL6560V Type 0
  • DeVilbiss RALC5020 Type 0
  • DeVilbiss RALC6520 Type 0
  • DeVilbiss RALC6560V Type 0
  • DeVilbiss RALC6560V Type 1
  • DeVilbiss SDS2E8DCD Type 0
  • DeVilbiss SDS2E8DCD Type 1
  • DeVilbiss SDS5G8D Type 0
  • DeVilbiss SDS5G8D Type 1
  • DeVilbiss Z-D22629

Craftsman Air Compressors

  • Craftsman 1000003437
  • Craftsman 919-15725 Type 1
  • Craftsman 919-15726 Type 0
  • Craftsman 919-18416 Type 1
  • Craftsman 919-18419 Type 0
  • Craftsman 919-18419 Type 1
  • Craftsman 919-18419 Type 2
  • Craftsman 919-18543 Type 1
  • Craftsman 919-18695 Type 1
  • Craftsman 919-19540 Type 0
  • Craftsman 919-19541 Type 0
  • Craftsman 919-19541 Type 1
  • Craftsman 919-19541 Type 2
  • Craftsman 919-19541 Type 3
  • Craftsman 919-72728 Type 0
  • Craftsman 919-72728 Type 2
  • Craftsman 919-72800 Type 0
  • Craftsman 919-72800 Type 1

Porter Cable Air Compressors

  • Porter Cable C5510 Type 0
  • Porter Cable C7501M Type 0
  • Porter Cable CPL55GH8W Type 0
  • Porter Cable CPL6025 Type 1
  • Porter Cable CPLC7060V Type 0
  • Porter Cable CPLC7060V Type 1
  • Porter Cable CPLC7060V Type 2

Additional compatibility may exist for other brands and models manufactured using the same valve plate to head gasket. Always verify compatibility by confirming your unit’s model number and part diagram.

No Reviews Yet

Only registered users can write reviews. Please Sign in or create an account

Frequently Asked Questions

What does the 5140118-80 gasket seal?

The 5140118-80 gasket seals the joint between the valve plate and cylinder head assembly on compatible air compressor pumps. This sealing surface helps prevent air leakage in the pump head area.

Is the 5140118-80 gasket reinforced?

Yes. The 5140118-80 valve plate-to-head gasket uses Graphoil-reinforced wire-mesh construction, which helps resist over-compression compared with earlier non-wire-mesh gasket designs.

Can a worn valve plate to head gasket reduce compressor output?

A damaged or compressed gasket at the valve plate and head can allow air leakage, which may reduce air delivery. Always confirm the pump model and parts diagram before ordering replacement gaskets.

What torque value should be used with the 5140118-80 gasket?

The provided service reference lists a staged torque sequence of 25 ft-lbs, 30 ft-lbs, and 32.5 ft-lbs, with 32.5 ft-lbs as the maximum final setting. Always verify the correct service procedure for your specific compressor model.

5140118-80 Service Reference

  • Head bolts should be torqued in a standard staggered pattern using the provided staged torque values.
  • After running the compressor for 10 minutes without pressure building in the tank, allow the pump to cool to ambient temperature and recheck torque at 32.5 ft-lbs.
  • Always verify the correct service procedure with the compressor model and parts diagram before repair.
